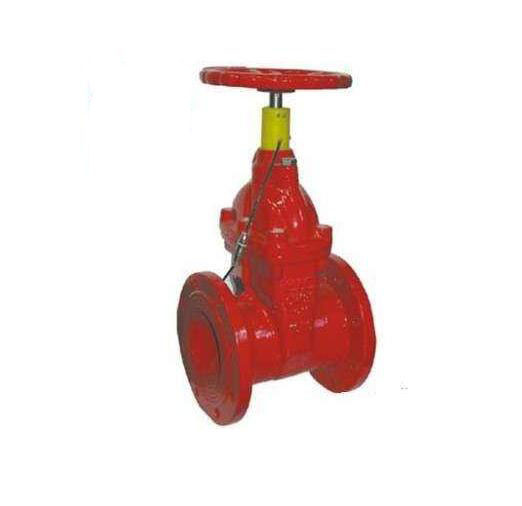

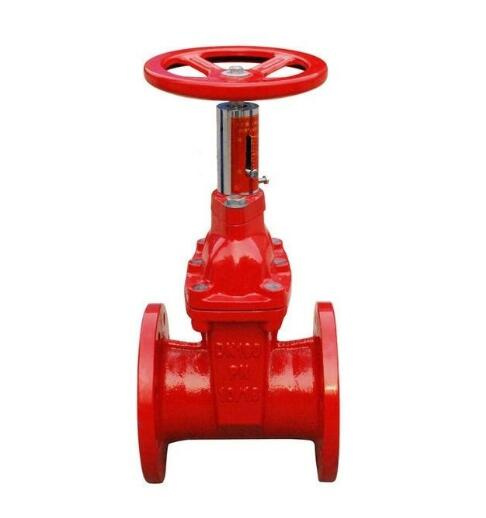

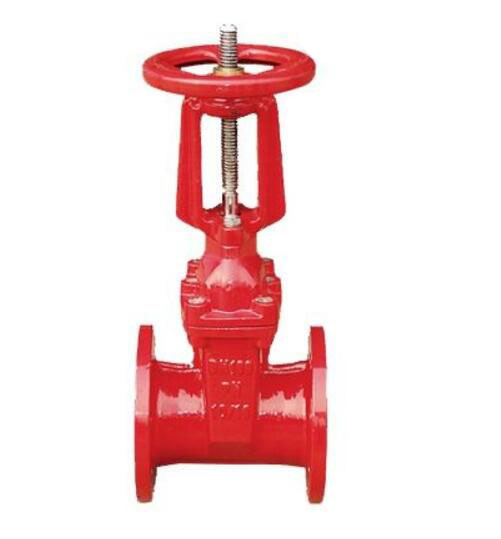

Xz45X Fire-Fighting Signal Elastic Seat Gate Valve

Prod Model:	Z45X Z41X
Work Temperature:	0~80 Deg C
Material:	Cast Iron
Connection Form:	Flange
Application:	Industrial Usage
Pressure:	1.0~2.5MPa
Usage:	Fire Fighting
Standard:	GB13927 Ap1598

Product Description

Overview

Z45X Z41X, special fire signal gate label: fire, special, lights, gate time: 2017 07 month 10 days reading 1 times Z45X, Z41X signal, in addition to the special fire valve with elastic valve seat seal good, and can more intuitive performance of the valve opening degree, so as to be able to in the opening is the distance discriminant of the valve, to take timely response measures. Open and close is agile and reliable, so it is often applied to the fire system.

Product structure features:
Nominal pressure: 1 ~ 2.5MPa working temperature: 0~80 centigrade flange standard: GB/T 17241.6 GB9113
Nominal: 50 ~ 400mm suitable medium: water, oil, gas and other test standard: GB13927 AP1598
Group rubber valve core
The high performance rubber and the latest vulcanization technology are applied to the spheroidal graphite cast iron framework, which is tightly packed, tightly sealed, geometrically correct and well sealed. It completely isolates the valve core from the fluid and corrosion-resistant.
Integral copper nut
The copper nut and the nodular iron skeleton of the spool are tightly connected with the special technology, ensuring the long-term operation and the impact of the water will not loose, so as to avoid the failure of the valve control.
Flat bottom seat
Our company's elastic base seal gate valve adopts the longitudinal design of the whole basin, which is equal to the pipeline and is not easy to accumulate debris. It ensures reliable sealing and makes the flow smoothly and unimpeded.
Self sealing valve cover
The design of self sealing structure is adopted between the valve cover and the valve body. In the allowable pressure range, the higher the pressure of the fluid, the tighter the seal is.
Specially sealed
The upper sealing structure between the valve stem and the valve cover is designed by three o seals. Compared with the traditional gate valve packing seal structure, the road seal is tight, and the friction resistance is greatly reduced. The valve is at any opening, pressure and safety locking function of the stem. It ensures that the stem is not released by pressure during operation and maintenance, so as to avoid causing personnel hazards.
Light structure
The compact structure enables the maximum working height to be reduced by more than 60mm-300mm compared with the traditional gate valves, and saves the engineering space. The body adopts ductile iron material, and its weight is reduced by about 20%-30% compared to the traditional gate valves, so the installation and maintenance is convenient.
Hygienic requirements for food grade
The inner part of the valve body is painted with nontoxic epoxy resin, and the inside and outside appearance of the valve core is completely covered by rubber, and no signs of rust or corrosion will appear. It can be directly applied to drinking water system and food and pharmaceutical industry

Material description of important parts of Z45X and Z41X fire fighting special signal gate valve:


Name	material
valve body	gray cast iron Nodular cast iron cast steel
gate plate	Nodular cast iron +Nitrile butadiene rubber or EPDM
midddle mouth mat	EPDM Nitrile butadiene rubber
sealing ring	Nitrile butadiene rubber
support	gray cast iron Nodular cast iron cast steel
valve rod	stainless steel
bolt	stainless steel
pressing cover	Nodular cast iron cast steel
valve rod nuts	copper alloy
handwheel(driving cap )	forged cast iron

Important shape size:

DN	50	65	80	100	125	150	200	250	300	350	400
L	178	190	203	229	254	267	292	330	356	381	406
Hmin(full open)	322	332	350	420	581	581	736	882	1009	1300	1380
Hmax(semi closed)	374	398	429	524	721	736	942	1031	1117	1655	1805
