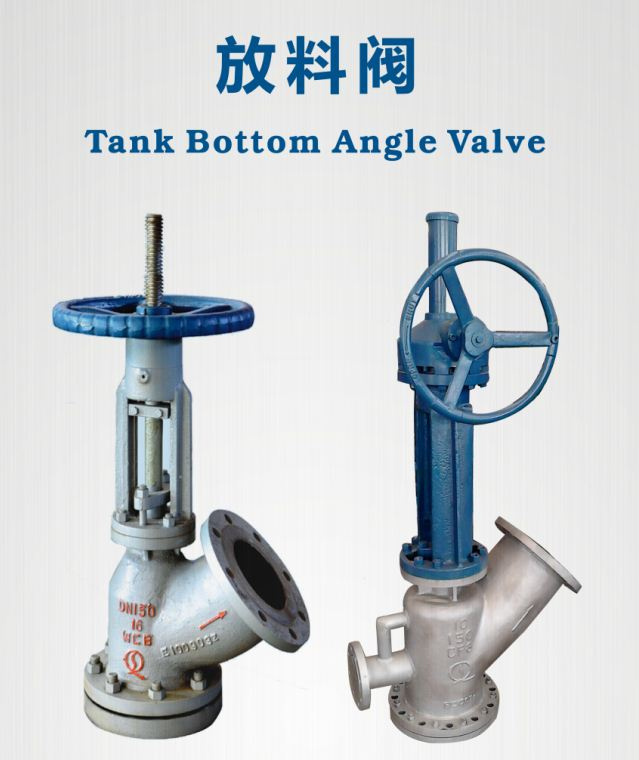

Y-Type Tank Bottom Angle Slurry Discharging Valve
| Price: |
US $ 100-600/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Fb45y |
| Valve Body Material: |
Wcb/CFB+Anti-Corrosion Material |
| Valve Disc Material: |
A05/Ss304+Special Hard Welding Alloy |
| Valve Seat Material: |
A05/Ss304+Special Hard Welding Alloy |
| Valve Stem Material: |
Ss304 or Ss316 |
| Applicable Medium: |
Ammonia Brine, Particle Slurry,Lye and Other Easy |
| Applicable Temperature: |
Under 425 Degree. |
| Sealing Form: |
Gland Packings Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Application: |
Forged Steel Globe Valve |
| Standard: |
ANSI |
| Structure: |
Globe Type |
Product Description
Y-Type Tank Bottom Angle Slurry Discharging Valve is produced from the combination of the foreign advanced technology and the practical situation of the coal chemical industry.During the development of the product,characteristic of the coal slurry has been taken into consideration,as well.The stainless steel dump valve is generally installed at the bottom of the coal lurry tank to discharge the material.
Features
1.Special cleaning device is offered for the valve body of the flanged dump valve ,which can be used to clean the inside of the product periodically . So ,caking and blocking of the coal slurry can be avoided.
2.Made of corrosion-resistant material,the inner cavity of the valve is painted.
3.The sealing surface made of bead weld cemented carbide makes for the longer service of the special dump valve for coal slurry.
4.The anti-rotation mechanism of the dump valve for coal slurry control can guarantee the rectilinear motion of the valve rod.
Parameter
Size:2"~8" DN50~DN200
Pressure :Class 150~Class 300 PN1.0~PN16
Material :WCB(A105), WC6, WC9, LCB, CF8(304), CF8M(316), CF3(304L), CF3M(316L)
Connection type:Flange
Driving mode :handwheel

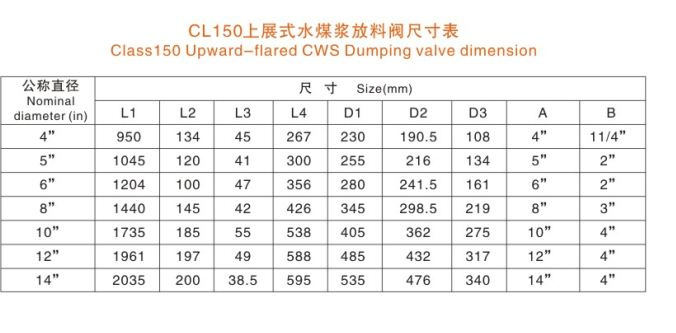

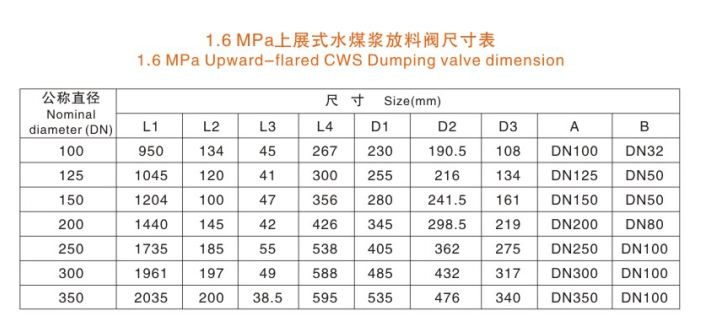

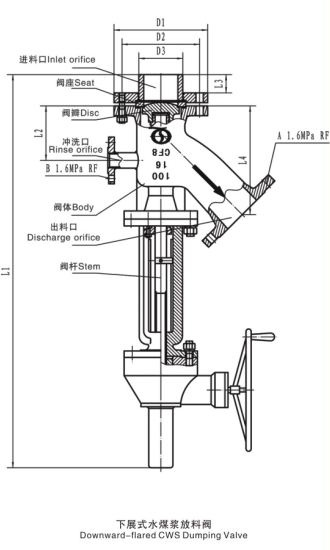

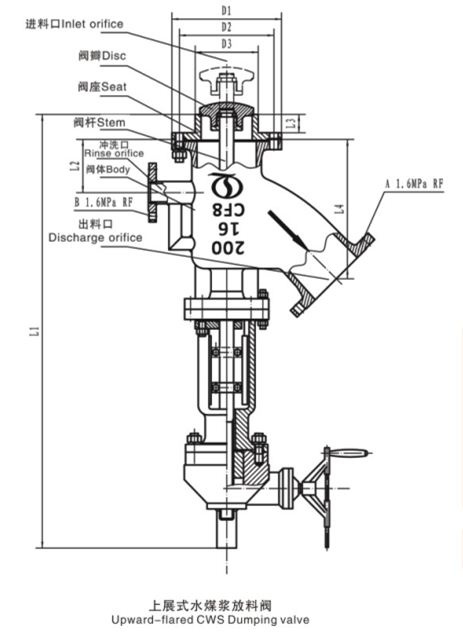

Main outline dimension
