| Prod Model: |

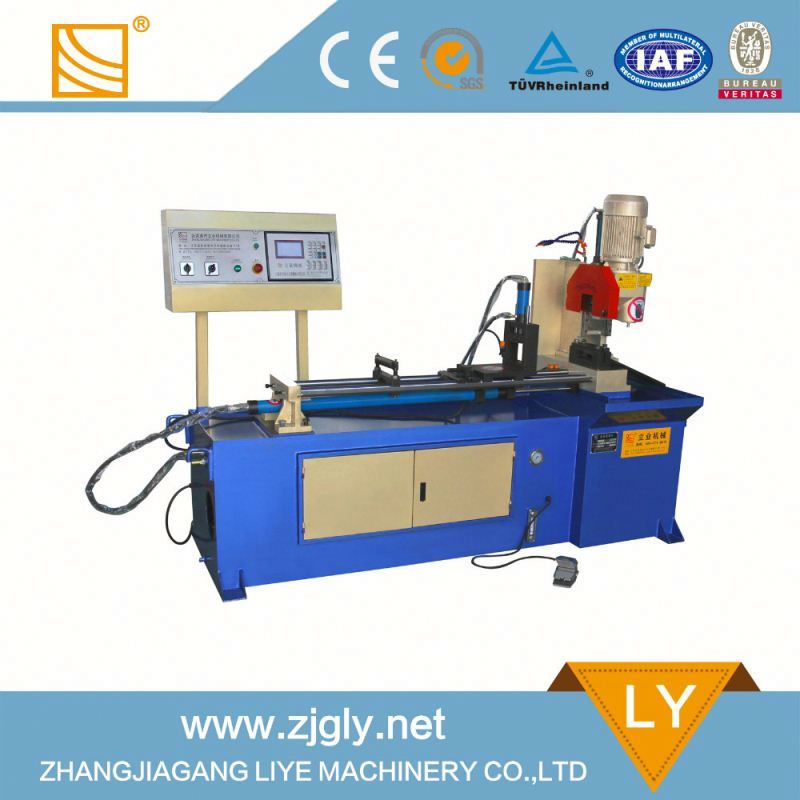

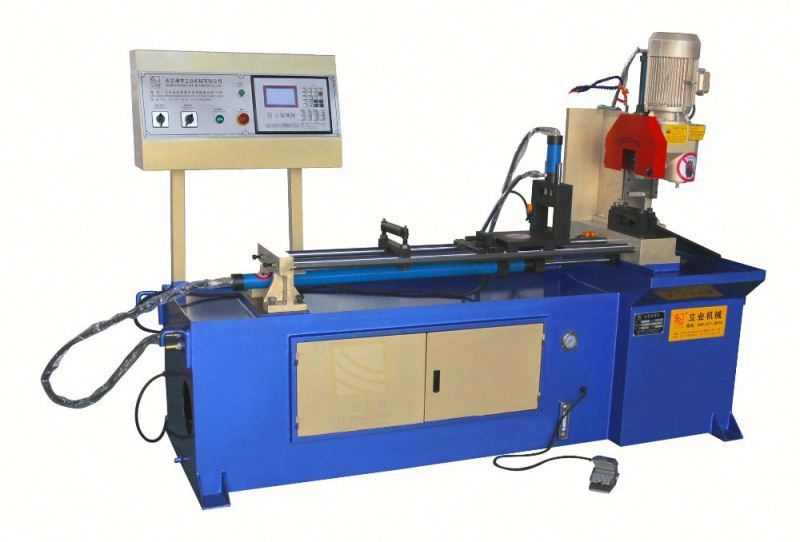

YJ-325CNC Electric circular sawing steel angle cut |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Color: |
Blue or Support Customized |
| Extra Services: |
Support Customized |
| Place Of Origin: |
Jiangsu,China |
Product Description
product description
| Specification/model | YJ-325CNC(Hydraulic feed) |
| Main Driver Motor | 2.4/3.0kw/380V/50HZ |
| Blade Speeds | 60/120RPM |
| Clamping Vise | Bilateral / up / down |
| Coolant Vise | 40w |
| Servo Motor Power | -- |
| Diameter | HSS Φ250-Φ325mm |
| Saw Blade Size Bore | Φ32mm |
| Pin Storke | 2×Φ11×PCD63mm |
| Feeding length (1) | 5-700mm |
| | Multiple feeding can be realized |
| Hydraulic Pump Motor | 2.2kw |
| Max. Operation Prssure | 70kg |
| Machine Dimensions(L×W×H)mm | 1985mm×950mm×1570mm |
| Machine Weight | 800kg |
Feature
Metal circular saw The best weapon to cut tubes/ profiles
European-style high-strength machine head, high-efficiency worm provided, turbine drive, reaching high cutting efficiency, no noise or burrs. The machine head can turn for 45° on the left and right, angle is made clearly, which makes adjustment easier. Manual and pneumatic
No burrs and no dust

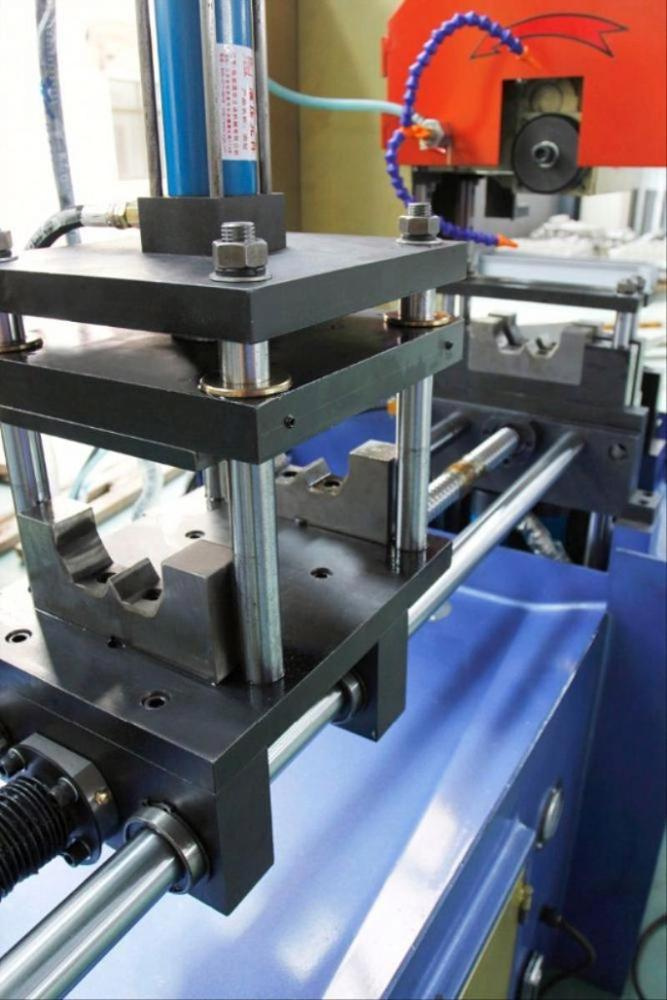

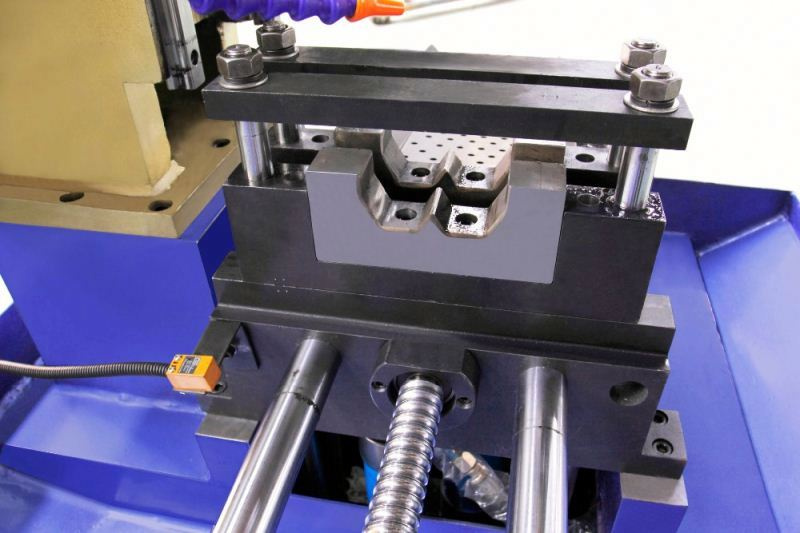

The bilateral and bi-directional clamps at both sides fix parts and ensure smooth cutting face without burrs. The saw cutting causes low noise and pollution.
Accurate-quick-bright and clean
Cutting prevision and speed are superior to that of band saw and bow saw. Meanwhile, the cutting face is bright and clean without heat generation, avoiding secondary processing.
Beveling or groove milling
Machine head can be adjusted to left or right for beveling or groove milling. The angle is accurate and the joint is perfect.
Cooling pump
The circulating cooling system has a large-capacity water tank to ensure service life of saw web and smooth cutting face.
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the "Company") is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the "Company") is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10, 000 m2 with total assets of over CNY 20 million.
The main products include 9 series and over 100 models, i. e. Pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
The technical performances of various machines reach national and international advanced level. The Company pays great attention to quality and technology content of product. The Company, since establishment, has developed over 60 new products and obtained several proprietary technologies. The Company has been certified by ISO9001: 2000 Quality System, CE, TUV, SGS and BV, etc.

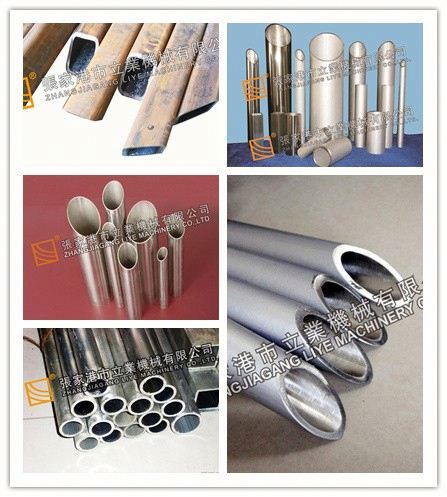

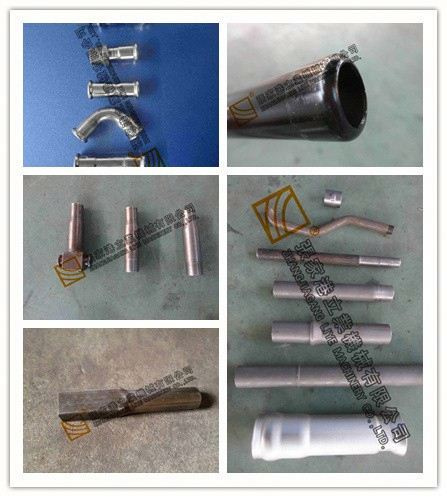

The products are widely applied in leisure chair, tent and flower shelf, tourism products, steel furniture, automobile, motorcycle, bicycle, children's bicycle and bed, aero seat, air conditioner, petrochemical industry, bathroom accessory, pipe, iron machining, etc. They are ideal machining equipment for cutting, shrinking & expanding, bending and riveting pipes of various kinds.
The Company has manufactured pipe machining equipment for more than ten years with strong technical force and development force. The Company is capable of manufacturing over 1, 000 sets of machine tools including high-grade pipe bender. The products are featured by excellent performance, high quality and perfect service and are sold both at home and abroad, including countries and regions in Europe and America, Middle East and Southeast Asia with good praise from clients.
The Company has established many offices and sale points around the world and formed pre-sales consultation, after-sales services and web-based service websites, providing new and old clients with fast and high-quality services.
The Company abides by the operation principle of "quality first, client oriented and honesty based" and sincerely welcome new and old clients. The staff of the Company will provide all-round services to you.
