Yt28 Pneumatic Portable Drilling Machine/Hand Held Rock Drill/Jack Hammer
| Price: |
US $ 100-300/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
yt28 |
| Model: |
Yt28 Rock Drill |
| Weight: |
28kg |
| Length: |
661mm |
| Cylinder Dia: |
φ80 (mm) |
| Piston Stroke: |
60 (mm) |
| Working Pressure: |
0.4~0.5 (MPa) |
| Air Pipe (Inner Dia ): |
25mm |
| Water Pipe (Inner Dia ): |
13mm |
| Drill Bit Dia: |
34-42mm |
| Shank Dimensions(Hex*Length): |
22*108+1mm |
Product Description

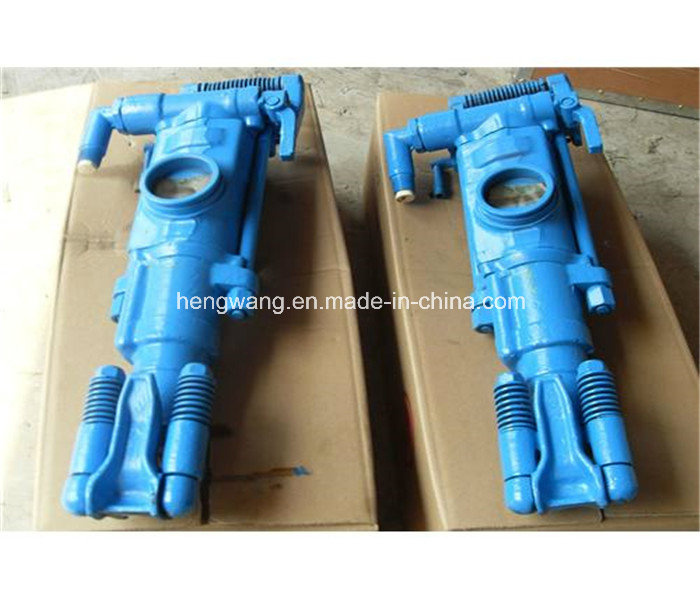

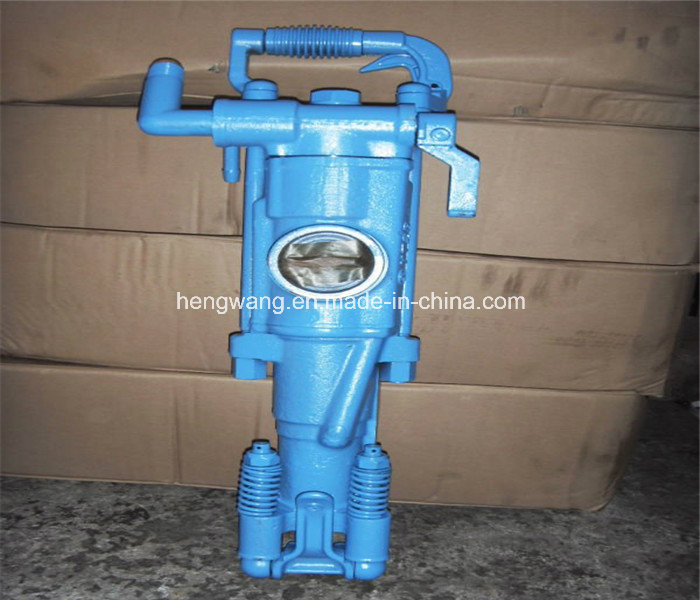

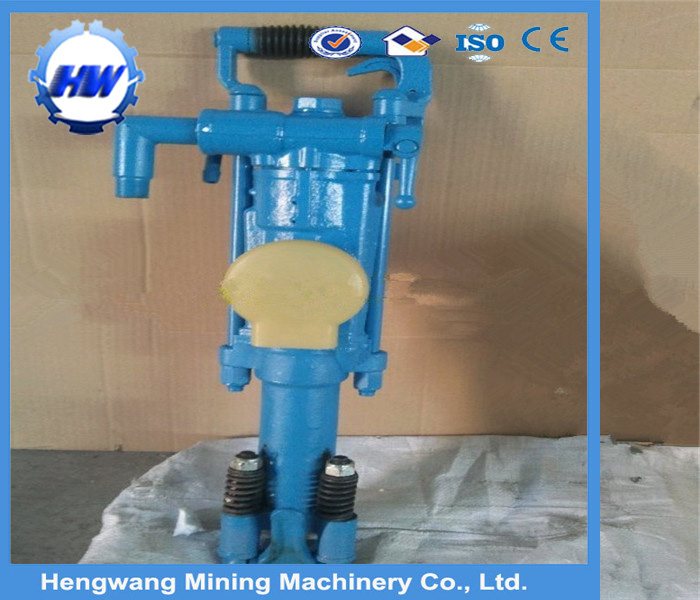

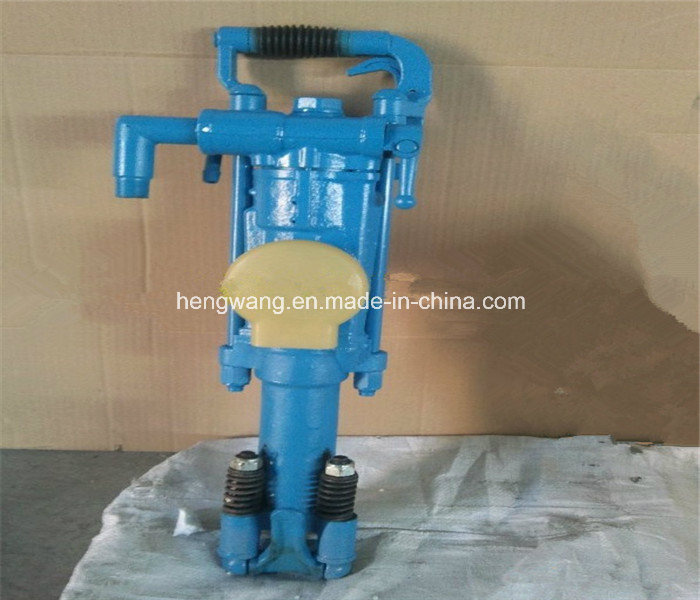

YT28 Pneumatic portable drilling machine/Hand held rock drill/jack hammer
Product Introduction
YT28 Rock Drill Feathures:
1.The rock drill is a kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.
5.This machine may match with FT160BD short air leg of FT160BC long air leg.

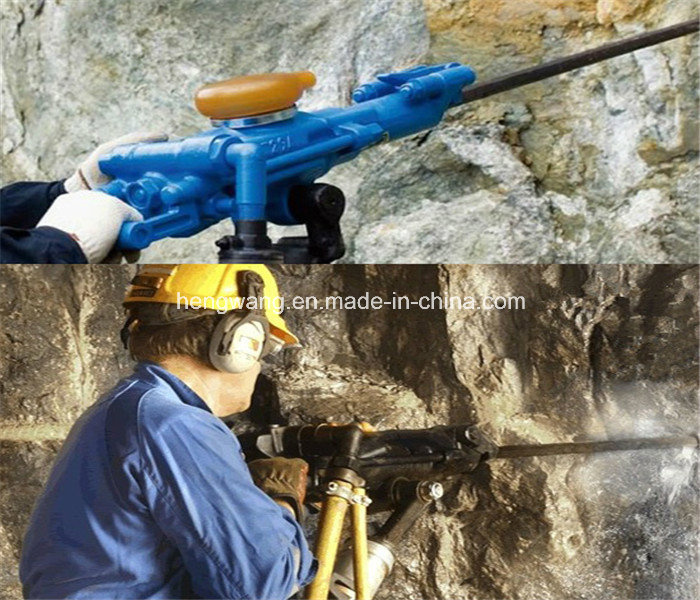

YT28 Rock Drill Application:
It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.Blast hole dia is 34-42mm,drill hole depth is 5m. This machine may match with Model FT160 air leg.
Technology Parameters
Weight |
≈ 26 kg |
Length |
661mm |
Cylinder dia |
80mm |
Piston stroke |
60mm |
Air pressure |
0.4- 0.63MPa |
Impact frequencey |
≥ 37Hz |
Air consumption |
≤81L/S |
Air pipe (inner dia ) |
25mm |
Water pipe (inner dia ) |
13mm |
Drill bit dia |
34-42mm |
Shank dimensions(hex*length) |
22*108+1mm
|
