Z-Wave Gas/Water on/off Valve

Z-Wave Gas/Water on/off Valve
Price: US $ 72-130/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: ZW40A
Power Supplier: AC to DC Power Supply 12VDC
Range: Min 30m Line of Sight
Valve Size: 106 mm ~140(L)×62(W)×110(H)mm
Net Weight: 400g
Z-Wave Frequency: 868.4MHz/865.2MHz/869.2MHz/908.4MHz/
Connection Form: Flange
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Application: Household Usage
Material: Plastics & Alloy
Nominal Pressure: 30kg.Cm

Product Description

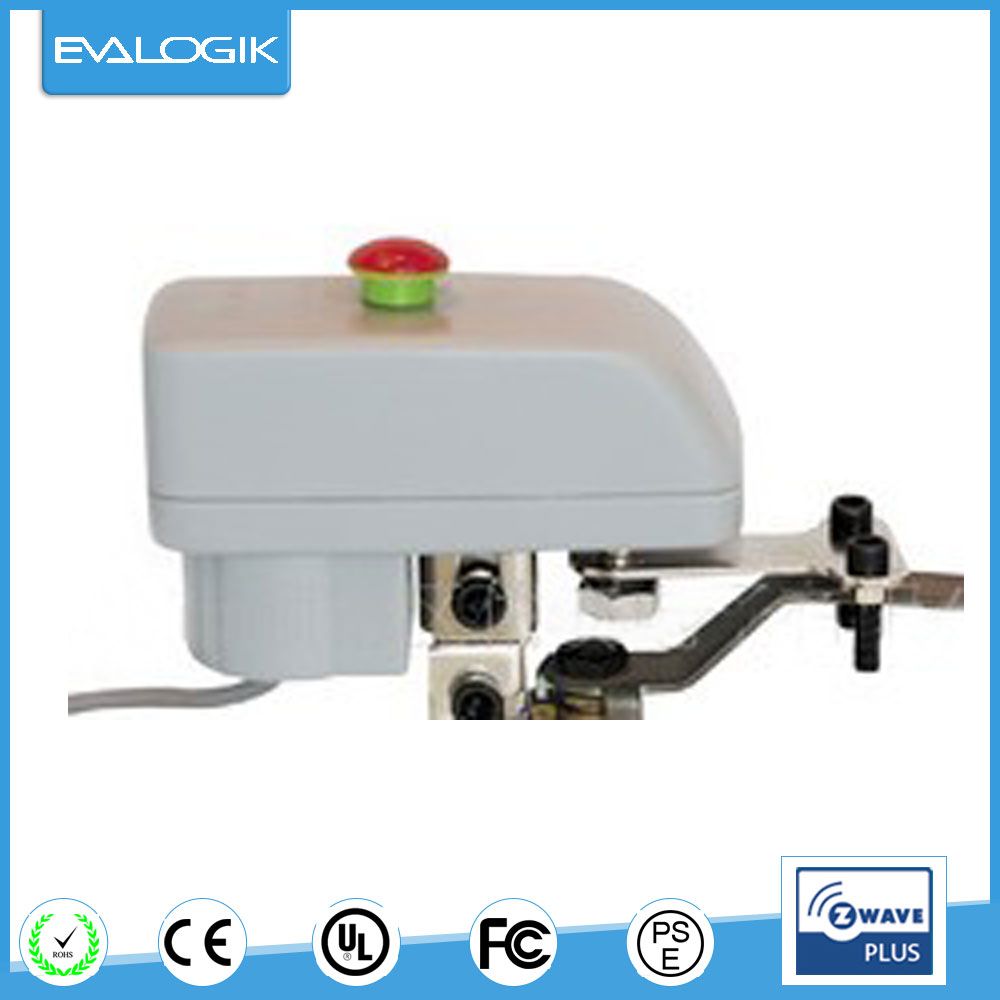

ZW40A  GAS /Water SHUT-OFF VALVE



Introduction

During normal status, this valve is no power consumption, energy saving and high safety. When the gas concentration achieved the threshold, the alarm provides signal to mechanical valve automatically turn-off the gas, guarantees the security With manual shut-off and reset button. Directly installs on the ball valve. Unnecessary to cut off the gas pipeline, the installment is convenient.


Technical data

Power supplyAC to DC or 12VDC
RangeMin 30m line of sight
Valve size106 mm ~140(L)×62(W)×110(H)mm
Net weight400g
Frequency 868.4MHz/865.2MHz/869.2MHz/908.4MHz/921.4MHz



Features

1.  Easy to install: no need to change the original gas pipeline, installed directly on the wrench can be fixed on the ball;
2.  High security: No standby power consumption, operation is DC12V Drive;
3.  Will automatically shut off gas valve if received a sirens from Gas alarm or incomplete combustion caused by the carbon monoxide alarm.
4.  It can be manually controlled valve wrench on or off of the state;
5.  Applicable to gas pipe diameter: 4 points (1/2 ") or 6 (3/4") diameter any standard flow and full flow (full bore) valve;
6.  Working equipments like: gas alarms, carbon monoxide alarms, water level detectors or related peripheral equipment;


Safety &Maintenance Instruction

Ø  Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instruction.
Ø  Do not overload electrical outlets or extension cords, fire or electric shocks can be the result.
Ø  Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
Ø  Keep all parts away from young children's reach.
Ø  Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
Ø  Avoid dropping or shocks, this can damage the electronic boards.
Ø  Never replace damaged power cables yourself! In such case, remove them from the net and take the devices to a workshop.


Maintenance

The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.


NOTE!

Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.


Warranty 1 year


NIE-TECH Co., Ltd founded in 2009, is a Hi-tech manufacturer that specializes in smart-home products' design, development and manufacture.

We own the experienced and innovative R&D team, and has a full range of successful Z-Wave solution for both home and industrial applications. Our wide range of wireless technologies, which earned us great confidence from our customers for their reliability and range performance, help our customers turn their innovative ideas into successful products.

Our ZE300 Evalogik Gateway is the nerve centre of smart home. It allows you to gain access to and control different appliances and devices installed in your home by using your smartphone. ZE300 Evalogik gateway that can be remotely controlled range from lightings, sensors, curtain motors, security cameras and energy control units. All you need to do is configure the Gateway with your home's Wi-Fi network and install the EVALOGIK APP on your smartphone. You can then add and connect to all appliances compatible with the EVALOGIK gateway.

With the aim of "quality first, customer first", our QC team ensures the products are qualified before shipping. Low-cost, short leading time, high quality, and our rigorous working attitude, all of these are helping us to get more orders.

Anyhow, looking forward to cooperating with you as biz partner in any terms.
