| Prod Model: |
ZW49B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supplier: |
DC 5V (USB Bus Powered) |
| Host Interface: |
USB a-Type Plug |
| USB Compliance: |
Compliant with USB 2.0 Specification |
| LED Indicator: |
RGB*1 |
| Protocol: |
Zm5101 |
| Data Rate: |
9.6kbps/ 40kbps |
| Range: |
Mini 30m Line of Sight |
| Z-Wave Frequency: |
908.42(Us)/868.42(EU)/922.5 MHz (Jp) |
| Transmission Channel: |
Wireless Modem |
| Type: |
Internal |
| Signal Type: |
Baseband Modem |
| Clip Function: |
Soft Modem |
| Interface Type: |
USB |
| Application: |
Household |
| Installation: |
USB |
| Transport Protocols: |
Z-Wave |
| Transmission Mode: |
Wireless |
Product Description

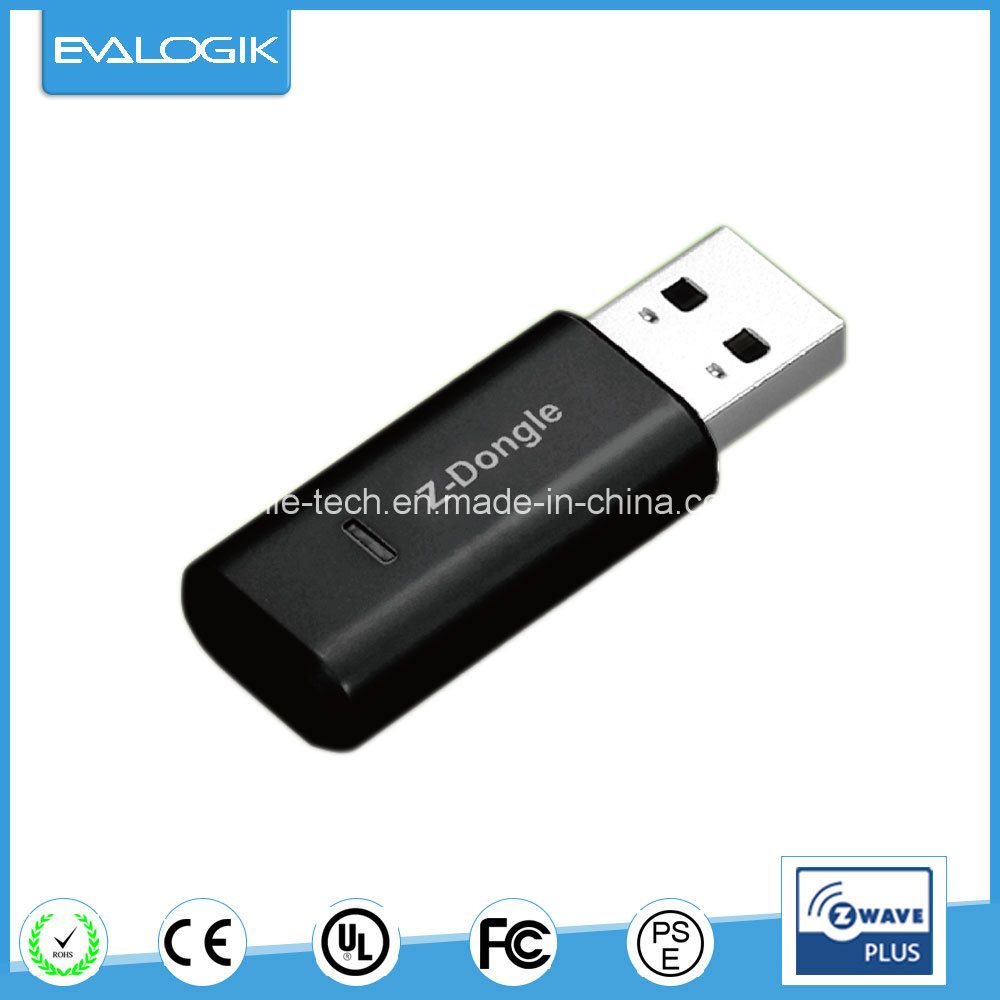

ZW49B USB Dongle
Introduction
The Z-Wave USB Dongle is a Z-Wave enabled communication device. When plugged into a STB/Gateway user can easily get control of each and every Z-Wave device connected in the network through this dongle according to Z-Wave protocol. The installation is easy and simple, save time and effort.
Technical data
| Power | DC 5V (USB bus powered) |
| Host Interface | USB A-Type Plug |
| USB Compliance | Compliant with USB 2.0 specification |
| LED Indicator | R/G/B*1 |
| Protocol | ZM5101 |
| Data Rate | 9.6kbps/ 40kbps |
| Range | Mini 30m line of sight |
| | Application Indoor use |
| Operation Temp | 0oC~40oC |
| Frequency | 908.42MHz/868.42MHz/922.5 MHz/921.42MHz |
Software Specification
Generic Device Class: GENERIC_TYPE_STATIC_CONYROLLER
Specific Device Class: SPECIFIC_TYPE_PC_CONTROLLER
Command Classes:
COMMAND_CLASS_CONTROLLER_REPLICATION_V1
COMMAND_CLASS_BASIC_V1
COMMAND_CLASS_VERSION_V1
Installation
Connect with computer / Gateway / Smart box / Smart TV
Safety and maintenance instruction
- Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instruction.
- Do not overload electrical outlets or extension cords, fire or electric shocks can be the result.
- Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
- Keep all parts away from young children's reach.
- Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
- Avoid dropping or shocks, this can damage the electronic boards.
- Never replace damaged power cables yourself! In such case, remove them from the net and take the devices to a workshop.
- Wireless system are subject to interference from cordless phones, microwaves, and other wireless devices during installation and operation.
Maintenance
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.
NOTE
Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.
Warranty 1 year
