| Prod Model: |
74-80 |
| Size: |
74-80 |
| Surface: |
Galvanized |
| Other Types: |
Hose Clamp |
| Temperature Range: |
-50c to +110c |
| Usage: |
Glass Clamp |
| Structure: |
G Clamp |
| Standard: |
Standard |
| Material: |
Rubber |
| Brand: |
Yanfei/OEM |
Product Description

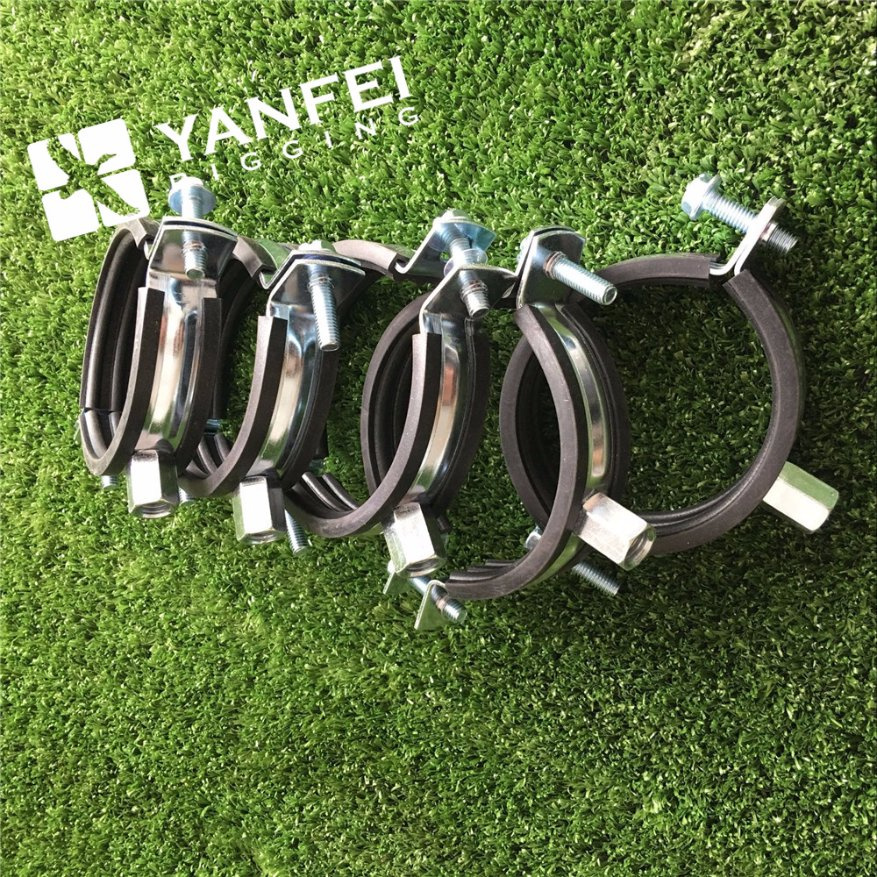

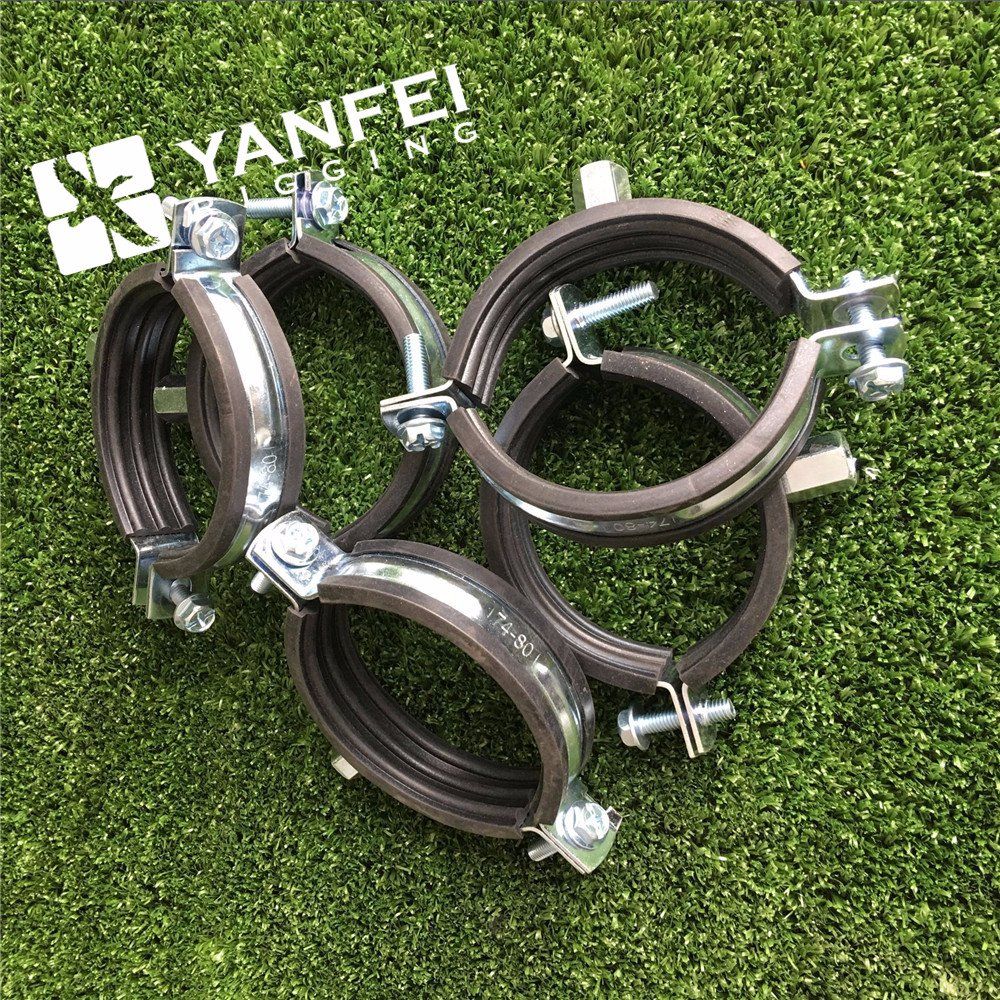

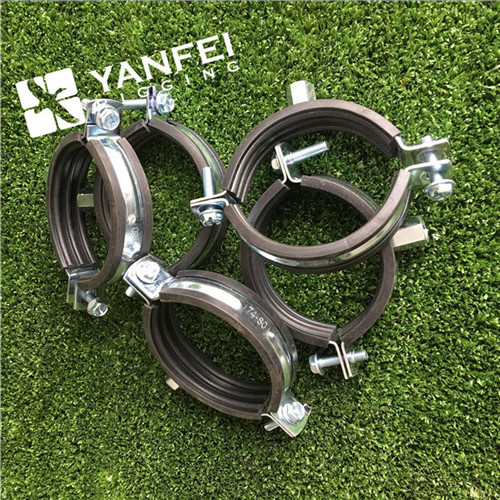

Our products include Steel wire rope, wire rope fittings, clamp, ferrule, Rigging hardware ,G80 & G100 rigging,Synthetic lifting sling & harness,Cargo control & Transport products ,Chains & Wire Rope Accessories,Stainless steel rigging,hoist & lifting equipment,marine hardware.74-80 zinc plated pipe clamp with rubber
Specifications
PVC or EPDM for Rubber lined choose
Size: 1/2" to 8"
Material: Steel with zinc plated
| Material: | steel DD11(material no.1.0332) acc. to DIN EN 10111 |
| Zinc plating: | electro zinc plated,6-8µm |
| Resistance welded nut: | M8 |
| Resistance welded nut: | M8/10 |
| Locking screw: | combi-slot cheese head screw |
| Acoustic insulation lining: | material:EPDM;chlorine-free;silicone-free |
| Sound insulation: | for DIN 4109 |
| Temperature range: | -50° to +110° |
| Hardness: | 45+-5° Shore |
| Fire behavior: | DIN 4102:class B2 |
| Article Number | Pipe Dia. | Clamping range | Material | Thread | Locking
screw | Rubber
mm | PKG | Min.torque | Fzul |
| | | | b x s | G | | | |
| | Inch | mm | mm | pcs/box | Nm | KN |
| 812012 | 1/4" | 12-14 | 20×1.2 | M8 | M6×16 | 20×3.5 | 150 | 70 | 1.1 |
| 812015 | 3/8" | 15-19 | 20×1.2 | M8 | M6×16 | 20×3.5 | 150 | 70 | 1.1 |
| 812020 | 1/2" | 20-23 | 20×1.2 | M8 | M6×16 | 20×3.5 | 100 | 70 | 1.1 |
| 812026 | 3/4" | 26-28 | 20×1.2 | M8 | M6×16 | 20×3.5 | 100 | 70 | 1.1 |
| 812032 | 1" | 32-35 | 20×1.2 | M8 | M6×16 | 20×3.5 | 100 | 70 | 1.1 |
| 812040 | 1 1/4" | 40-43 | 20×1.2 | M8 | M6×20 | 20×3.5 | 50 | 70 | 1.1 |
| 812044 | 1 1/2" | 44-49 | 20×1.2 | M8 | M6×20 | 20×3.5 | 50 | 70 | 1.1 |
| 812050 | | 50-56 | 20×1.5 | M8/M10 | M6×20 | 20×4.5 | 50 | 70 | 1.2 |
| 812057 | 2" | 57-61 | 20×1.5 | M8/M10 | M6×20 | 20×4.5 | 50 | 80 | 1.2 |
| 812063 | | 63-67 | 20×1.5 | M8/M10 | M6×20 | 20×4.5 | 50 | 80 | 1.2 |
| 812074 | 2 1/2" | 74-80 | 20×1.5 | M8/M10 | M6×20 | 20×4.5 | 50 | 80 | 1.2 |
| 812083 | 3" | 83-91 | 20×1.5 | M8/M10 | M6×20 | 20×4.5 | 50 | 80 | 1.2 |
| 812101 | | 101-107 | 25×2.0 | M8/M10 | M8×25 | 25×4.5 | 25 | 90 | 1.5 |
| 812108 | 4" | 108-114 | 25×2.0 | M8/M10 | M8×25 | 25×4.5 | 25 | 90 | 1.5 |
| 812125 | | 117-125 | 25×2.0 | M8/M10 | M8×25 | 25×4.5 | 25 | 90 | 1.5 |
| 812131 | | 131-136 | 25×2.0 | M8/M10 | M8×25 | 25×4.5 | 25 | 90 | 1.5 |
| 812140 | 5" | 140-144 | 25×2.0 | M8/M10 | M8×25 | 25×4.5 | 25 | 90 | 1.5 |
| 812159 | 6" | 159-168 | 25×2.5 | M8/M10 | M8×30 | 25×4.5 | 20 | 100 | 2.5 |
| 812193 | | 193-203 | 25×2.5 | M8/M10 | M8×30 | 25×4.5 | 10 | 100 | 2.5 |
| 812204 | | 204-210 | 25×2.5 | M8/M10 | M8×30 | 25×4.5 | 10 | 100 | 2.5 |
| 812210 | 8" | 210-219 | 25×2.5 | M8/M10 | M8×30 | 25×4.5 | 10 | 100 | 2.5 |
| 812224 | | 224-235 | 25×2.5 | M8/M10 | M8×30 | 25×4.5 | 10 | 100 | 2.5 |
