| Prod Model: |
ZLH706 |
| Weight: |
660kg |
| Dicing Wafer: |
6" |
Product Description

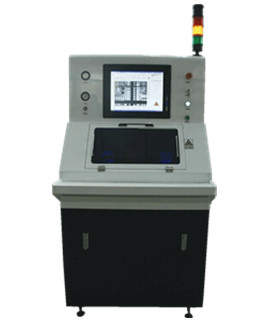

The ZLH 706 Laser saw machine is using industrial lasers, linear motor workbench and straight drive rotary platform, assisted by CCD image monitoring and positioning system, to cutting semiconductor wafer.
The machine has mounted with LCD touch screen, man-machine operation interface; the image alignment of the work piece is simple and convenient to improve the operation convenience. The self design software is used in the control system to improve the cutting efficiency. The equipment has high reliability, low cost maintenance and stable performance
Feature
Interactive man-machine operation interface
15" high resolution touch screen;
Easy operation, highly working efficiency;
Fiber Laser adopted;
Laser wave is 1064 nm;
Power rating is 20W@20KHz;
Linear motor workbench with 2um accuracy.
Application

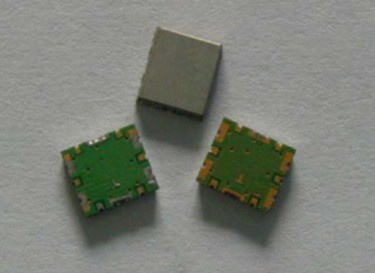

IC wafer, GPP, diode wafer, monocrystalline, polysilicon, amorphous silicon solar cells, scribing dicing for silicon wafer, slotting for LOW-K materials, etc.
Specification
| Work size | | Φ6" |
| Dicing depth | | Max.0.12mm |
| Laser power | | 20 W |
| Cutting speed | | 1-150 mm/s |
| X-axis | Drive | Linaer motor |
| Stroke(Working range) | Max. 160mm |
| Resolution | 0.001mm |
| Step size | 0.001mm |
| Accuracy | <0.006mm/150mm |
| Repeat accuracy | 0.002mm |
| Y-axis | Drive | Linear motor |
| Stroke(Working range) | Max.160mm |
| Resolution | 0.001mm |
| Step size | 0.001mm |
| Accuracy | <0.006mm/150mm |
| Repeat accuracy | 0.002mm |
| θ-axis | Drive | DD motor |
| Rotation range | 360° |
| Revolving | 120rpm |
| Resolution | 0.0005° |
| Panel | OS | Windows |
| Operation interface | English, Touch-screen |
| Microscope light | LED |
| Working condition | Power supply | Two phase 220-240ACV;50HZ |
| Max. Power consumption | 1.5 Kw |
| Compress air pressure | 0.4-0.8MPa |
| Exhaust air | 5m³/min |
| | Dimension D*W*H | 1220mm×810mm×1650mm |
| | Weight | Approx.660KG |
