Zlp 630 Zlp Powered Platform Hand Tools for Building Construction Used Construction Machinery
| Price: |
US $ 1780/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| The Width Of Platform: |
760mm |
| Max. Lifting Height: |
300 M |
| Length Of Platform: |
From 1m to 10m |
| Safety Lock: |
Ls 30, 20-30kn.M |
| Rated Load(Kg): |
200, 500, 630, 800, 1000 |
| Surface Treatment: |
Painted, Hot Galvanized |
| Voltage: |
220-440V, 50-60Hz,3phase |
| Type: |
Electrical Working Gondolas Equipment |
| Matrial: |
Steel, Aluminum Alloy |
| Wire Rope Dia.: |
8.3/8.6/9.1/9.3/10.2mm |
| Running Mode: |
Moving |
| Application: |
Construction |
| Carrying Capacity: |
400-600kg |
| Driven Type: |
Electrical, Auto, Manual |
| Feature: |
Construction |
Product Description
Product description
zlp 630 zlp powered platform hand tools for building construction used construction machinery| MODEL SPEC | ZLP630 |
| Rated Load | Length | Rated Capacity |
| 2000mm | 600kg |
| 4000mm | 500kg |
| 6000mm | 400kg |
| Lifting Speed | 7~8.5 m/min |
| Max Lift Height | 300m |
| Oblique Angle When Locked | ≤6°~ 8° |
| Steel Rope | Diameter : 8.3mm |
| Hoist | Motor | Model | YPE1500S2-4Z |
| Power | 1.1kw |
| Rotational Speed | 1380 r/min |
| Braking Moment | 20.8 nm |
| Weight | 60 kg/set |
Platform
| Dimension (mm) | 2500*660*1160 |
| 1000*660*1160 |
| 1500*660*1160 |
| 2000*660*1160 |
| Assembly | 1~6m |
| Weight(kg) /7.5m | 400 |
| Suspension | Max Reach of beam | 1500mm |
| Weight(without counter-weight) kg/set | 300/set (2nos each set) |
| Counter-weight(kg/piece) | 25kg*40pieces=1000kg |

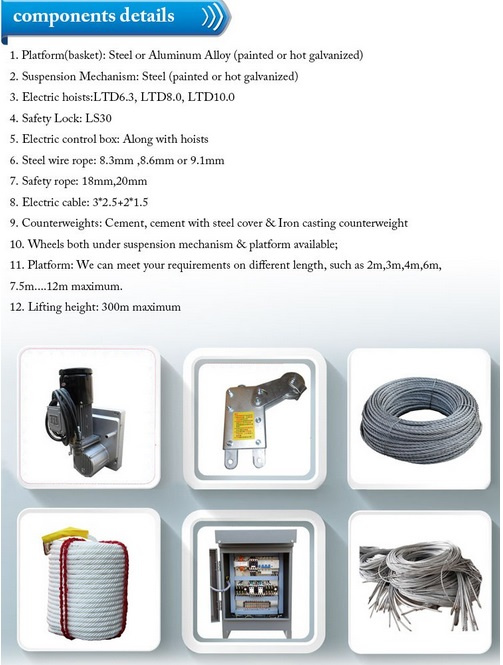

components details

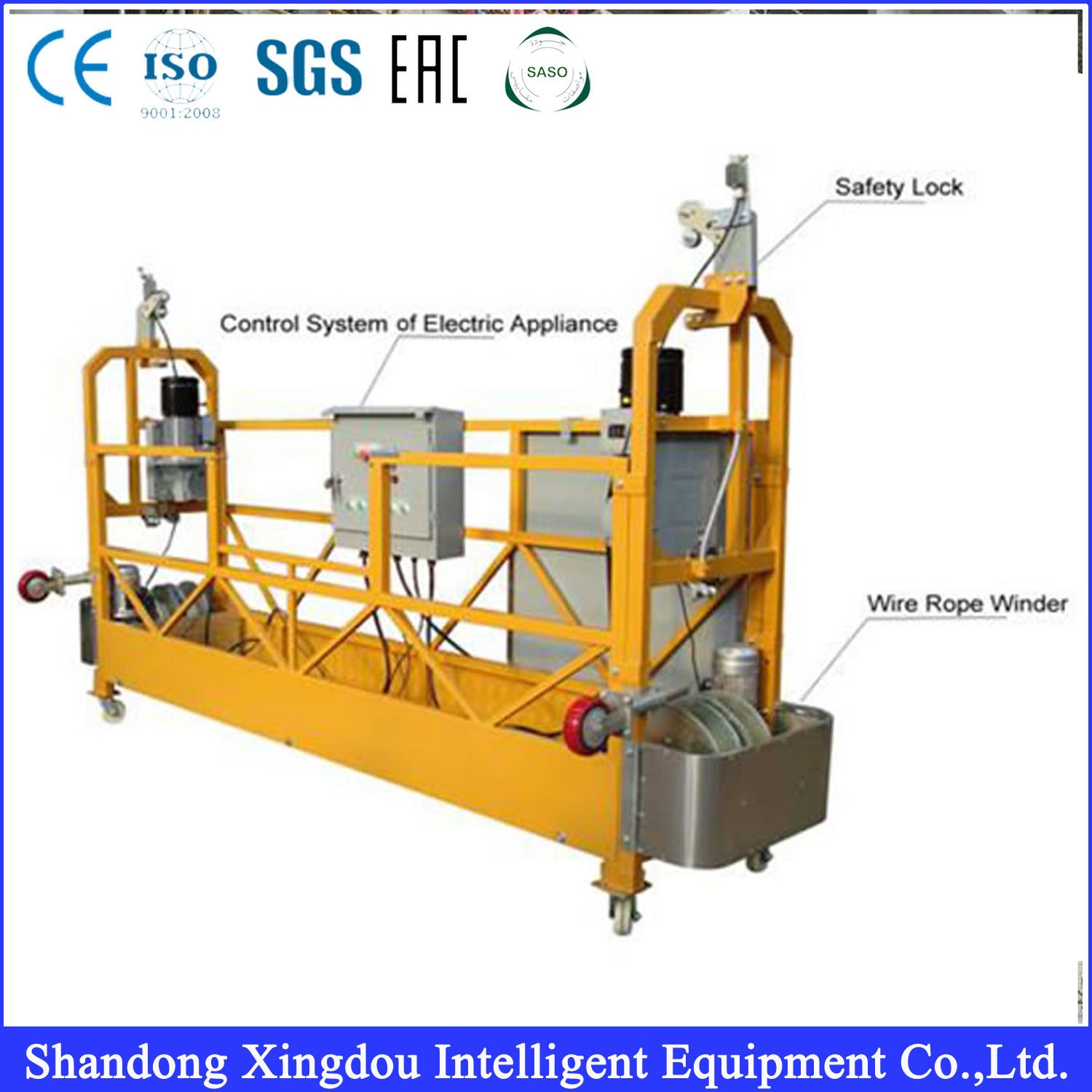

Parts of construction swing stage equipment:
1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)
2. Suspension Mechanism: Steel (painted or hot galvanized)
3. Electric hoists:LTD6.3 or LTD8
4. Safety Lock: LST30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
7. Safety rope: 18mm,20mm
8. Electric cable: 3*2.5+2*1.5
9. Counterweights: Cement , cement with steel cover & Iron counterweight
10. Spare parts
You can zlp 630 zlp powered platform hand tools for building construction used construction machinery from us with the following contact information please...
You will get reply within 24 hours.
Shandong Xingdou Intelligent Equipment Co., Ltd. is a special equipment manufacturer approved by the General Administration of Quality Supervision, Inspection and Quarantine of the PRC and it specializes in the production of building hoist. The company is located at Chengdong Industrial Park in Zhangqiu which is 40 kilometers of the eastern suburb of Jinan. The company boasts a large number of professional technical design staff, highly skillful professional producers and a professional installation team. The introduction of various modern equipments ensures stable product quality and performance, and our constant technological improvement has greatly raised our production efficiency.
As our brand enjoys growing popularity, our company has won general approval and trust from users both at home and abroad. Our widespread sales network which is both nationwide and throughout the world allows us to integrate sale and service.
We have been adhering to the operation philosophy of "development through prestige, survival through quality, progress through innovation and efficiency through management" and to the service philosophy of "aiming at customer satisfaction, pursuit of excellence, keeping progressing and improving, dedication". Besides, we keep making production according to the national standards in an effort to meet the users' needs by providing them with high-quality, safe, modern and practical construction hoists.
Mrs. Li Aixin, the company's general manager, is sincerely looking forward to working with friends from all walks of life to achieve common development and a brilliant future!
