| Price: | US $ 500-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | P15 |
|---|---|
| Certificate: | Ce, RoHS |
| Nominal Impedance: | 8ohm |
| Maximum Spl: | 124dB (Continuous)130 dB(Peak) |
| Driver Number: | Lf: 1X15 Inch; Hf: 1X1.75 Inch |
| Power Rating(AES): | 450W |
| Frequency Response: | 60Hz-18kHz(+-3dB) 45Hz-20kHz(-10dB) |
| Nominal Coverage(-6dB): | 50~100 Degree(H) 55degree(V) Constant Directivity |
| Weight: | 31g |
| Connectors: | 2X Nl4MP Neutrik Speakon Connectors |
| Materials: | 18mm 24mm Birch Plywood |
| Noise: | <95dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | Optional Combination |
| Speaker Material: | Wood |
| Application: | Club/Bar/Live Music Venus/Concert/Music Hall |
| Certification: | SGS, ISO9001 |
| THD: | <0.005% |
| Monitor: | None |

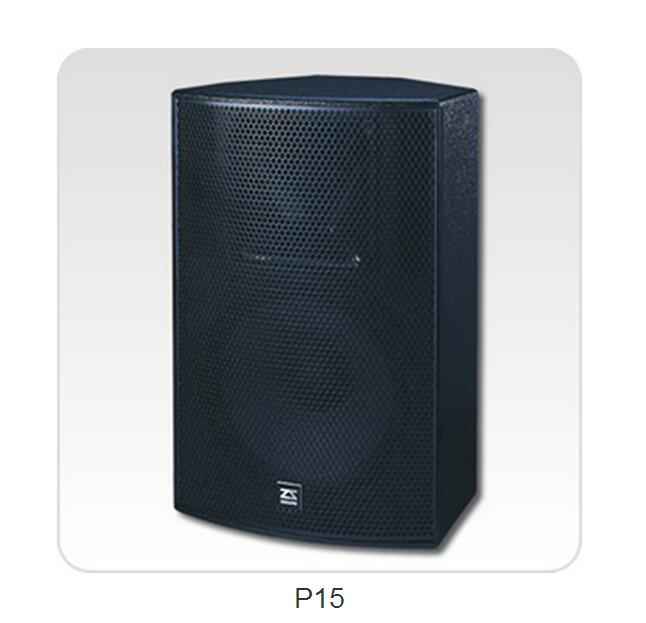

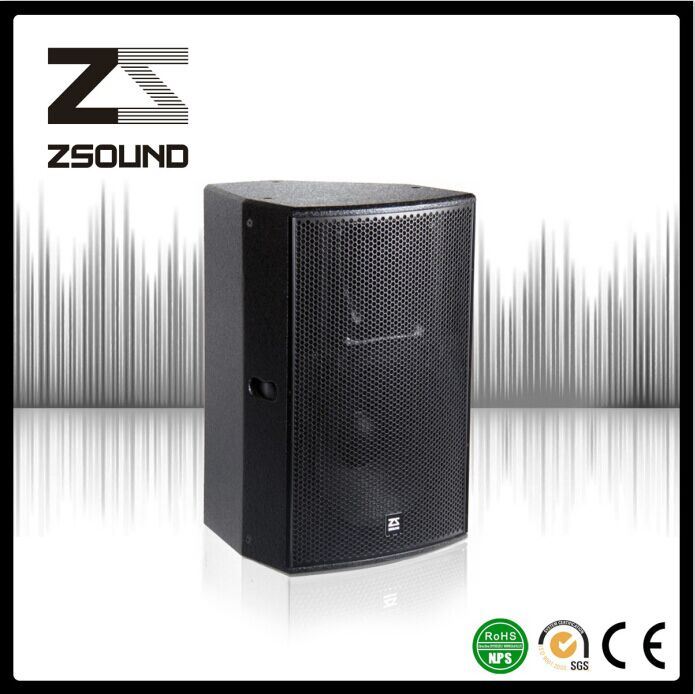

The Zsound P15 Speaker is a medium scale two-way passive system, utilizing the latest Phase control technology, with bandwidth ranges from 55Hz to 20KHz. Combining with SB series subwoofer, the frequency response will extend to 32Hz.
The enclosure features a 15 inch LF driver and a 2 inch (diaphragm) HF compression driver mounted on a constant directivity horn, with the Phase correction technology to eliminate distortion between LF units and keep smooth frequency and Phase response.
P15 consist of an adoptive crossover network, the given design would ensure the two drivers work together appropriately and perfect.
The loudspeaker is designed to comprise 50-100 °X55 °constant directivity coverage, to restore smooth frequency and Phase response. Moreover, any acoustic cancellation will not occur, even work in different frequencies.
The trapezoidal enclosure perfectly match multifunctional sound-reinforcement system with a fixed 30°angle,and a 60°angle (vertical) to achieve either short or long-distance stage monitoring. The enclosure shall be of a multi-laminated birch by construction with integral pole mount and threaded inserts for wall and ceiling mounting. Besides, the additional T15 bracket can be taken the best advantages to be fully fixed. (Besides, accessory T15 bracket is to be used in hanging for fixing operation in all-direction.)

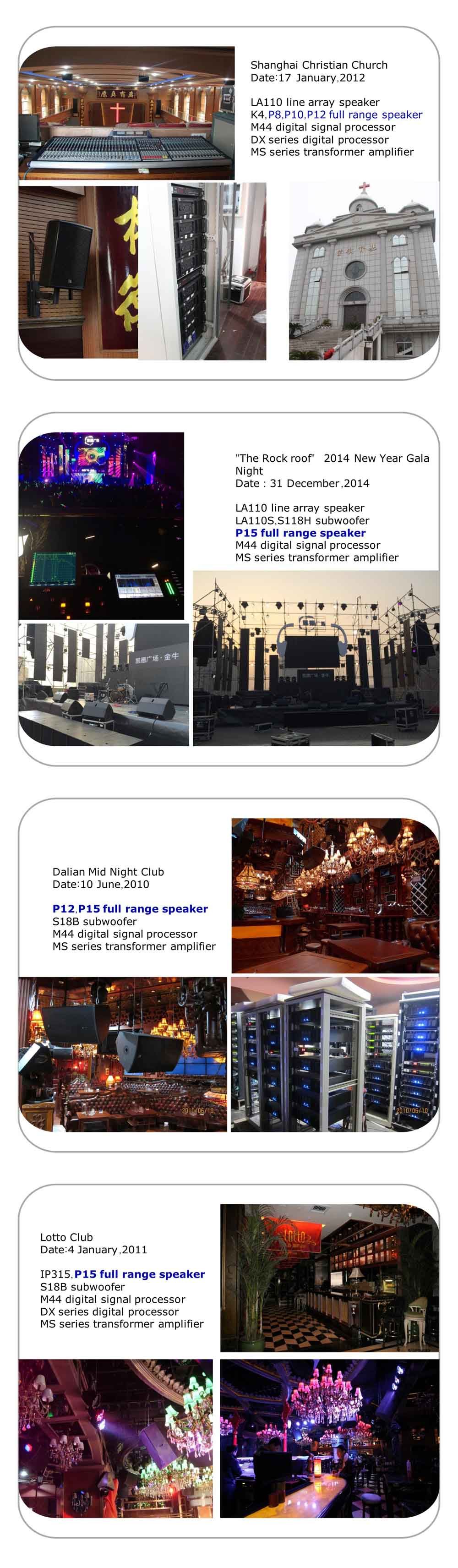

The loudspeaker is widely used in varies of applications, such as monitoring in recording studio, sound reinforcement in theater, concert hall, exhibition center, clubs and so forth. This loudspeaker creates beautiful timbre reaching studio recording requirement. It is widely used as stage monitoring, sound reinforcement in theater, concert hall, exhibition hall, clubs and so forth.
Features:
Frequency response special design to avoid auditory fatigue;
Rotatable and asymmetrical horn;
13xM8 rigging points;
Pole mount socket
Specification:

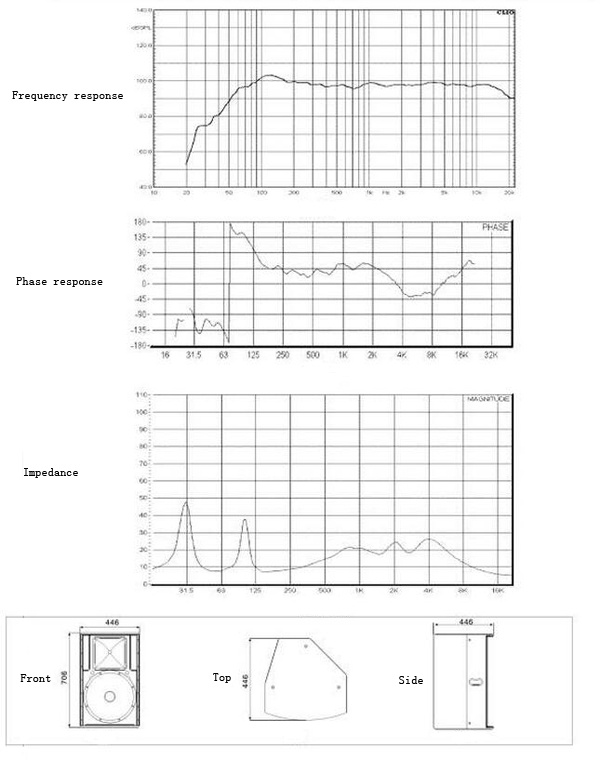

| TECHNICAL SPECIFICATION | |
| Frequency Response: | 60Hz-18kHz(+-3dB) 45Hz-20kHz(-10dB) |
| Nominal Coverage: | 50°~100°(H)55°(V)Constant directivity |
| Sensitivity (@1w/1m): | 96dB SPL |
| Power Rating (AES): | 450W |
| Nominal Impedance: | 8Ohm |
| Maximum SPL: | 124dB (continuous)130 dB(peak) |
| Drivers: | LF 1*15 inch (75mm voice coil)woofer; HF 1*44mm voice coil compression driver |
| PHYSICAL DATA | |
| Dimension (H*W*D): | 706(H)x446(W)x446(D)mm |
| Weights: | 31 kg |
| Connectors: | 2*NL4MP Neutrik Speakon connectors |
| Speaker Cables: | 1+1- |
| Materials: | 18mm,24mm birch multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated foam |
Applications:
Zsound Advantage:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.

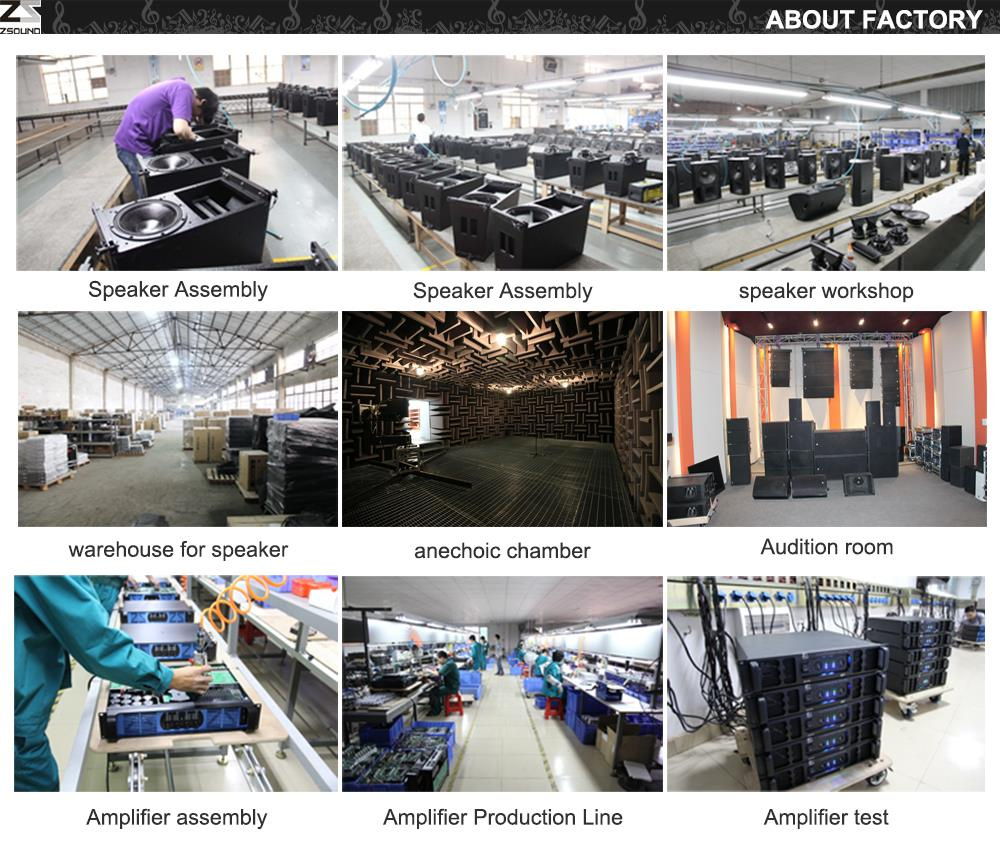

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.
