Prod Model: |
VCL |
Frequency Response: |
50Hz~16kHz(+-3dB) 40Hz~18kHz(-10dB) |
Nominal Impedance: |
Hf/Mf/Lf: 16/16/16ohm |
Maximum Spl: |
Hf135/141 dB Mf:130/136 Lf;129/135 dB |
Power Rating(AES): |
Hf/Mf/Lf: 160W/350W/900W |
Driver Number: |
Lf: 2X12inch; Mf: 1X10inch; Hf: 2X3inch |
Sensitivity(@1W/1m): |
Hf:113dB Spl Mf:105 dB Spl Lf:100 dB Spl |
Weight: |
60kg |
Speaker Cables: |
1-2+...Lf, 3-4+...Mf, 5-6+...Hf |
Materials: |
18mm, 24mm Birch Plywood |
Rigging: |
0~7.5 Degree Adjustable |
Noise: |
<95dB |
Hi-Fi: |
Hi-Fi |
Operation Mode: |
Wire / Remote Control |
Speaker System: |
Optional Combination |
Speaker Material: |
Wood |
Application: |
Club/Bar/Live Music Venus/Concert/Music Hall |
Certification: |
RoHS |
THD: |
<0.005% |
Monitor: |
None |
Product Description

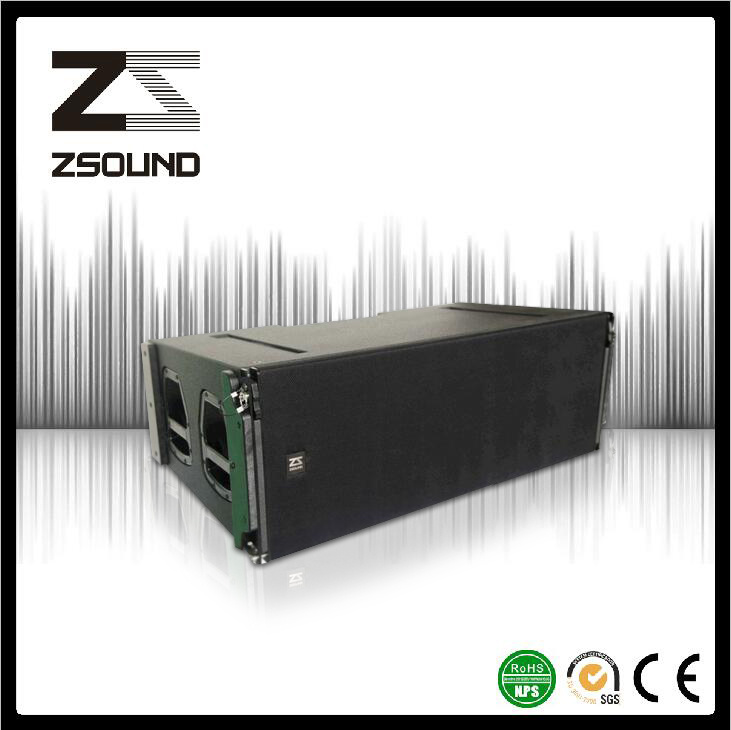

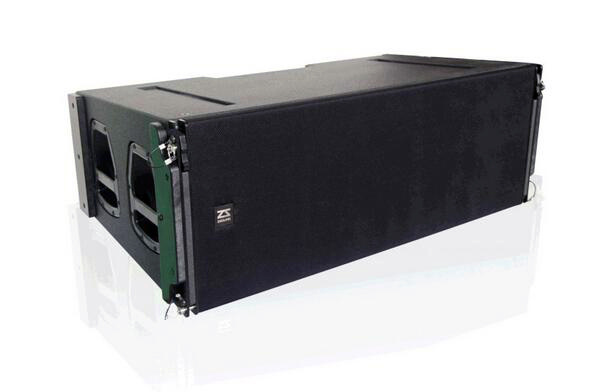

Zsound Vcl PRO HiFi Line Array Sound Speaker PA System
Features:
Large-scale, tri-amp, three-way line array;
Presettable angles;
Neodymium high-sensitivity driver, maximum headroom;
Rubber edge LF driver, extend low frequency.
Specification:

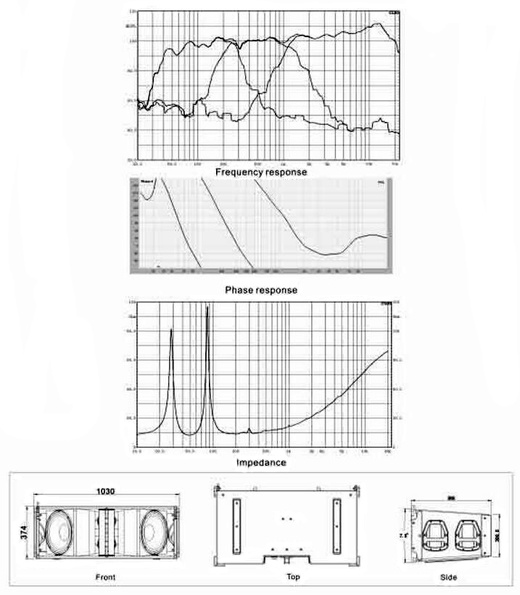

TECHNICAL SPECIFICATION | |
Frequency Response: | 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
Nominal Coverage: | 90°(H)7.5°(V) |
Sensitivity (@1w/1m): | HF:113dB SPL MF:105 dB SPL LF:99 dB SPL |
Power Rating (AES): | HF/MF/LF:160W/350W/900W |
Nominal Impedance: | HF/MF/LF:16/16/12Ohm |
Maximum SPL: | HF135/141 dB MF:130/136 LF;128/134 dB |
Drivers: | LF 2*12"(75mm Voice coil) woofer; MF 1*10"(65mm voice coil) mid-range; HF 2*3" compression driver |
PHYSICAL DATA | |
Dimension (H*W*D): | 367*1030*565mm |
Weights: | 60kg |
Connectors: | 2*WP7 connectors |
Speaker Cables: | 1-2+LF 3-4+MF 5-6+HF |
Materials: | 18mm,24mm birch multi-plywood |
Finish: | Black Polyurea coatings |
Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
Rigging: | 0,1 ,2,3,4,5,7.5 degree adjustable |
Applications:
- Touring performance/Live Show;
- Theater/Cinema;
- Stadium/gymnasium/sport facilities;
- Auditorium/Church
- Club/Bar/Live Music Venus;
- Concert/Music Hall;
- Airport/Square;
- Fixed Installation Architecture.

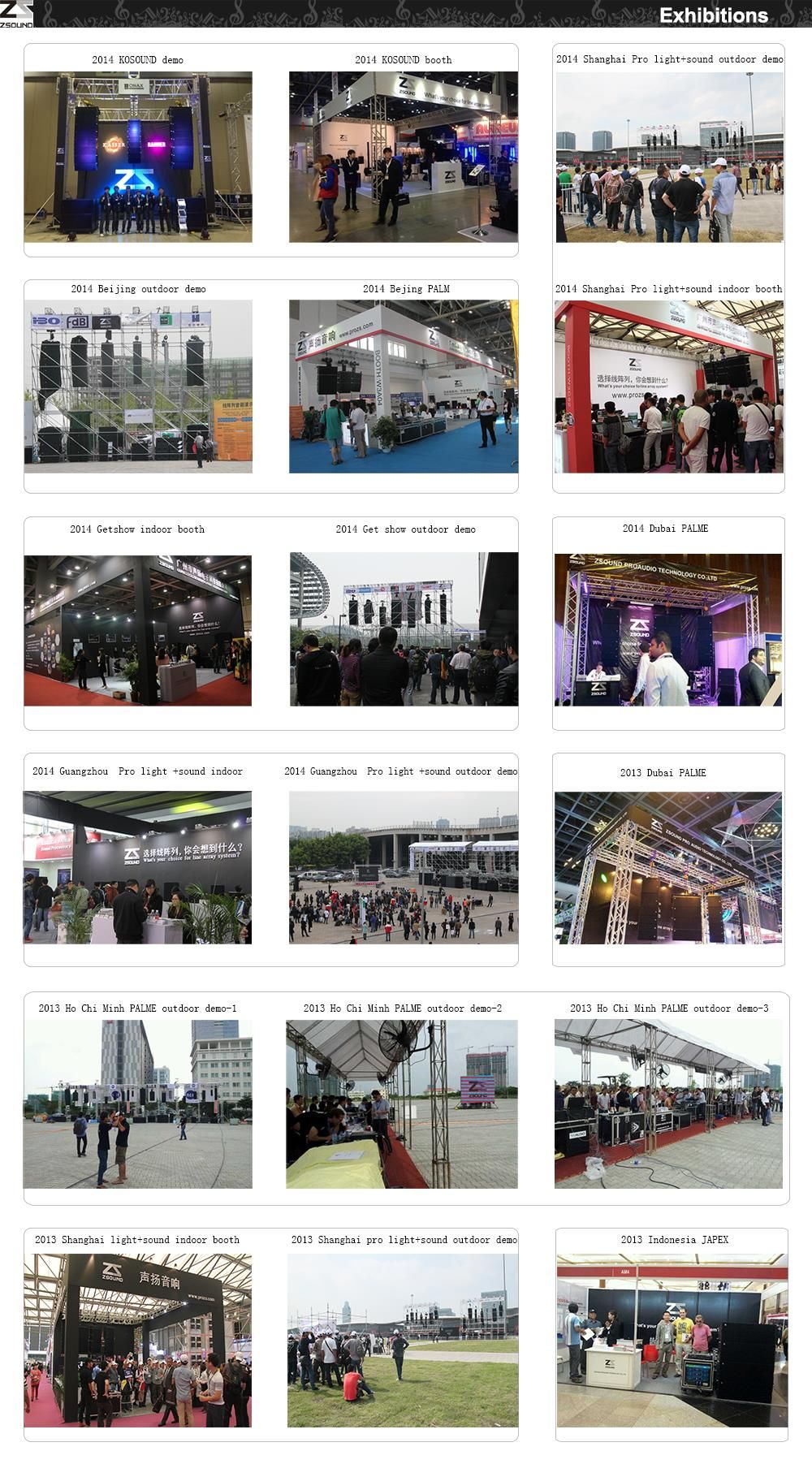

Every year, Zsound took part in the Pro Audio Exhibition around the world almost 10 times.
Zsound Advantage:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.

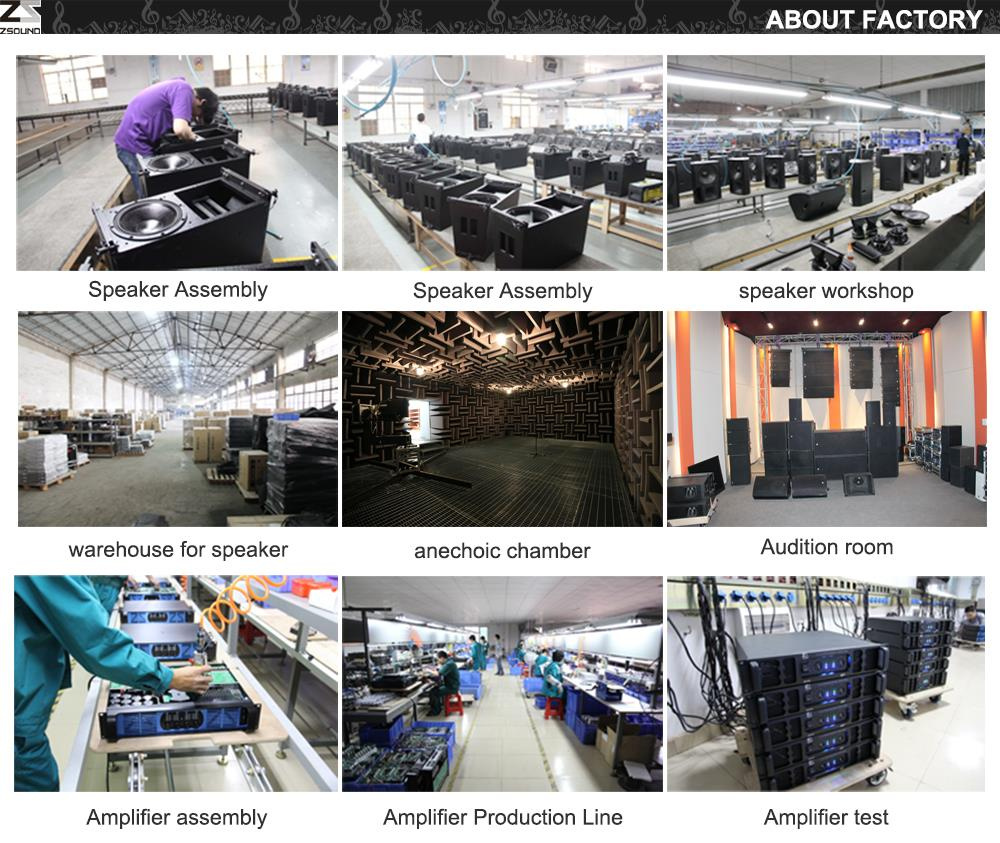

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.
