| Prod Model: |
ZYNJ220-30 |
| Scope Of Application: |
Φ73-Φ216 mm |
| Rated Torque: |
30kn.M |
| Type: |
Petroleum Drilling Tool & Accessory |
| Certification: |
ISO |
| Usage: |
Screw-on and Screw-off Machinery |
Product Description

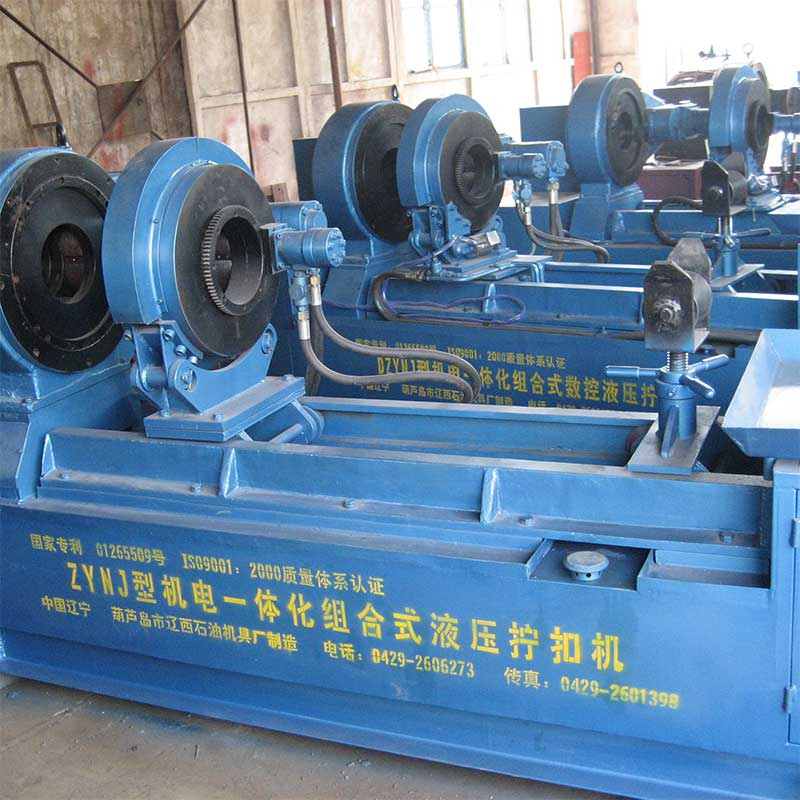

ZYNJ-220/30 hydraulic screw-on machine is designed as hydraulic, mechanical-electrical integrated type, and is mainly applicable to the flow process of the production line of oil, casing, down-hole tools and oil-well pump installation collar. The equipment is operated by means of hand-operated reversal valve, featuring simple and convenient operation. The main tong and backup tong adopt star clamping mechanism, featuring wide clamping range and adjustable speed. Within the applicable range of clamping, there is no need to change the tooth plates. This machine is featured by high operating efficiency and convenient operation and use.
Product standard configuration and Technical Specifications
| Configuration Name | Technical Specifications | QTY | Unit | Packing | Remarks |
Console | Control the operating handle according to the pressure gauge | 1 |
Set | Wooden cases | |
Hydraulic Power System | Motor:power 22KW speed1460r/min, Required power:380V,frequency for:50HZ | 1 |
Set |
Wooden cases |
| Hydraulic pump type: Variable plunger pump |
| Turnbuckle mechanism maximum working pressure: 14 mpa |
| Oil tank capacity:500L |
Make up/ breat out host machine |
Tailstock | Pipe dia.:Φ73-216mm | 1 |
Set |
Wooden cases |
| Walking speed :adjustable |
| The clamping accuracy: ≤ 1.5 mm |
spinning wrench | Pipe dia.:Φ73-216mm | 1 |
Set |
| Make-up torque range:0.1-30KN.m |
| Break-out torque range:0.1-30KN.m |
| Turnbuckle Angle: 360 hovering at any position |
| The clamping accuracy: ≤ 1.5 mm |
| Base | Length:3.5m | 1 | Set |
Huludao City Liaoxi Petroleum Machine & Tools Factory is located around the east exit of the expressway of Huludao City, which covers an area of 16, 000 square meters with the construction area of 6500 square meters. Our company is an independent incorporated enterprise which specializes in the development and production of various petroleum machineries and tools for many years. It has strong technical force and has passed the ISO9001 quality system certification and export product quality certification. It has also senior technical personnel for electrical automatic control, hydraulic pressure, machinery and computer, etc. And various mechanical processing equipments with a wealth of supporting and machining capabilities. And a number of products have obtained national patents.
The PLC full-automatically controlled NC makeup and breakout machine, NC high pressure water and oil casing pressure test machine, high pressure water and oil tubing cleaning machine, tube straightening machine and torque control console, etc. With computer monitoring man-machine interface and maintenance equipments of tubing, casing, drill pipe, pumping rod, oil well pump, etc. Has been sold to major domestic oil fields and foreign oil fields of Sudan, Indonesia, Kazakhstan, etc. And highly valued by the users.
We are willing to provide first-class products for oil field users, and insist on the aim of "Seeking increasing perfection, surviving depending on quality, mutual benefit, achieving development through cooperation" and the spirit of "Constant pursuit of perfection" to provide users with high quality and efficient products and services.
