| Prod Model: |
Type B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
From 1/2" to 4" |
| Process: |
Injection Molding Cam Lock Coupling |
| Shipment: |
35 Days After We Get The 30% Deposit |
| Connection: |
Male |
| Structure: |
Universal |
| Flexible Or Rigid: |
Flexible |
| Material: |
PP-R |
| Standard: |
Standard |
Product Description

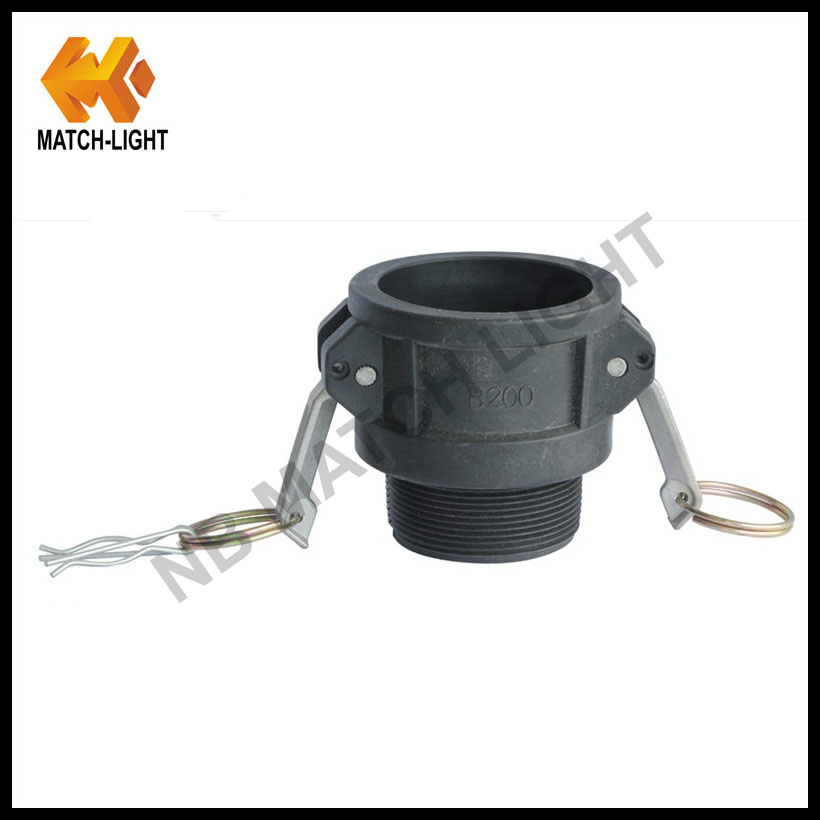

1 1/2" Easy Seal Poly Cam Lock Coupling (Type B)
Description:
Precision machined to rigid tolerances - How it works - To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. - Just lift the cam arms and remove the adapter. - Safety notes - Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part - Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
Specification
Product name: Cam Lock Coupling
Technic: Injection Moulding
Size: From 1/2" to 4"
Type: B
Body Material: Polypropylene and nylon (+30% glass fiber)
Cam Arm Material: Stainless Steel or PP
Gasket Material: NBR or EPDM
Thread: NPT or BSP(Usually, Female Thread is BSPP and Male Thread is BSPT)
Color: Black
Assembly: Body+ Gasket+ Handles+ S/S Pins+ S/S Pull Rings+ S/S Safety Clips
| B | Female Coupler X Male NPT/BSP |
| SIZE | Part Number |
| 1/2" | B 050PP |
| 3/4" | B 075PP |
| 1" | B 100PP |
| 1-1/4" | B 125PP |
| 1-1/2" | B 150PP |
| 2" | B 200PP |
| 2-1/2" | B 250PP |
| 3" | B 300PP |
| 4" | B 400PP |
| Handles available as:Stainless Steel and PP All 4" Poly Couplers have 4 handles. |
Working pressure. The 1/2" inch through 4 inch couplings shall be rated for 150 pounds per square inch working pressure . The 6-inch couplings be rated for 75psi or 150 psi working pressure as appropriate.
