| Prod Model: |
B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
From 1/2" to 4" |
| Process: |
Injection Molding |
| Shipment: |
35 Days After We Get The 30% Deposit |
| Standard: |
DIN |
| Material: |
Plastic |
| Connection: |
Male |
Product Description

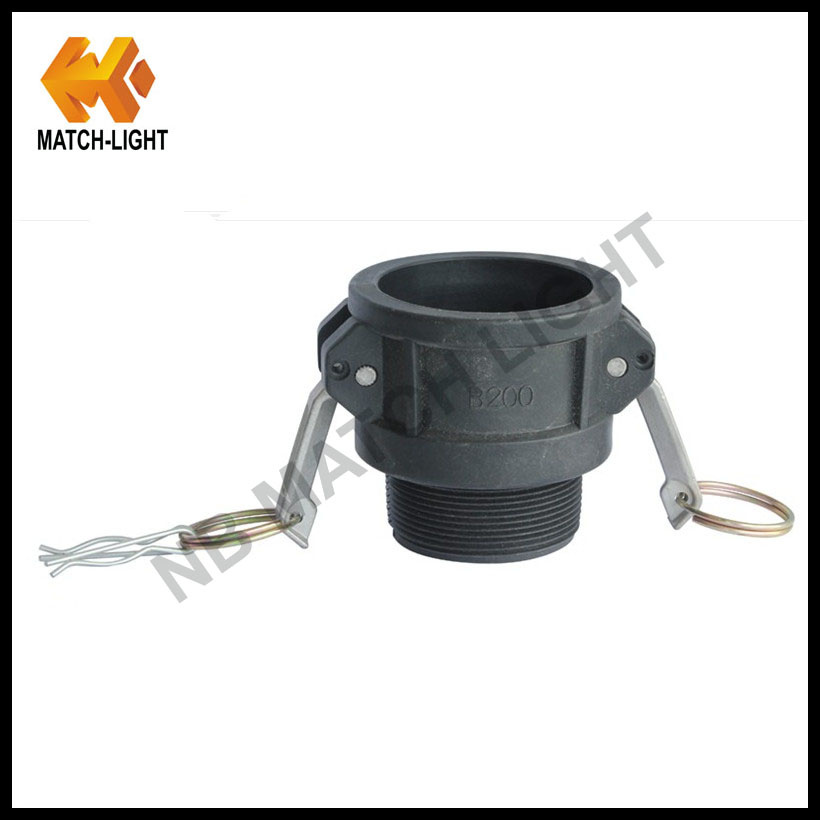

Polypropylen Camlock Coupler Type B Male Threaded Quick Connect Coupling
Description:
Technic: Injection Moulding
Size: From 1/2" to 4"
Type: B
Body Material: Polypropylene and nylon (+30% glass fiber)
Cam Arm Material: Stainless Steel or PP
Gasket Material: NBR or EPDM
Thread: NPT or BSP(Usually, Female Thread is BSPP and Male Thread is BSPT)
Color: Black
Assembly: Body+ Gasket+ Handles+ S/S Pins+ S/S Pull Rings+ S/S Safety Clips | B | Female Coupler X Male NPT/BSP |
| SIZE | Part Number |
| 1/2" | B 050PP |
| 3/4" | B 075PP |
| 1" | B 100PP |
| 1-1/4" | B 125PP |
| 1-1/2" | B 150PP |
| 2" | B 200PP |
| 2-1/2" | B 250PP |
| 3" | B 300PP |
| 4" | B 400PP |
| Handles available as:Stainless Steel and PP All 4" Poly Couplers have 4 handles. |
Technic:
Working Pressure:
Packing&Shipping:
Product Applications:Agriculture irrigation
Food and beverage
Oil and refinery
Fire control
Construction
Chemical
Colliery
Sanitary
Water treatment
Standards
Federal Mil A-A-59326A
The standard for camlock fittings is based on the specification of the US Military i.e. Mil-C-27487. Mil-C-27487 assigned the methods, dimensions, inspection procedures, materials, pressure ratings and tolerances. In 1998, the actual Mil-C-27487 specification was changed by another Federal Military standard: A-A-59326A. The Federal Mil A-A-59326A offers complete guarantee for the exchangeability of cam and groove couplings designed to the similar specification.
DIN 2828
Couplings designed to DIN 2828 are exchangeable with those which designed to the actual MIL-C-27487 standard. However, vary in terms of part number, thread and hose tail design. A flat thread seal is added to the female threaded parts and a smooth hose shank following by DIN 2817 is added to the RK safety clamps complying with the DIN 2817.
EN 14420-
