| Price: | US $ 600-2000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | YGD-70 |
|---|---|
| Product Name: | DTH Drilling Rig |
| Color: | Red |
| Voltage: | 380V |
| Usage: | Drilling |
| Drilling Type: | Rotary |
| Power: | Electric/Gas |
| Warranty: | 1 Year |
| Weight: | 320kg |
| Size: | 1740*260*420mm |

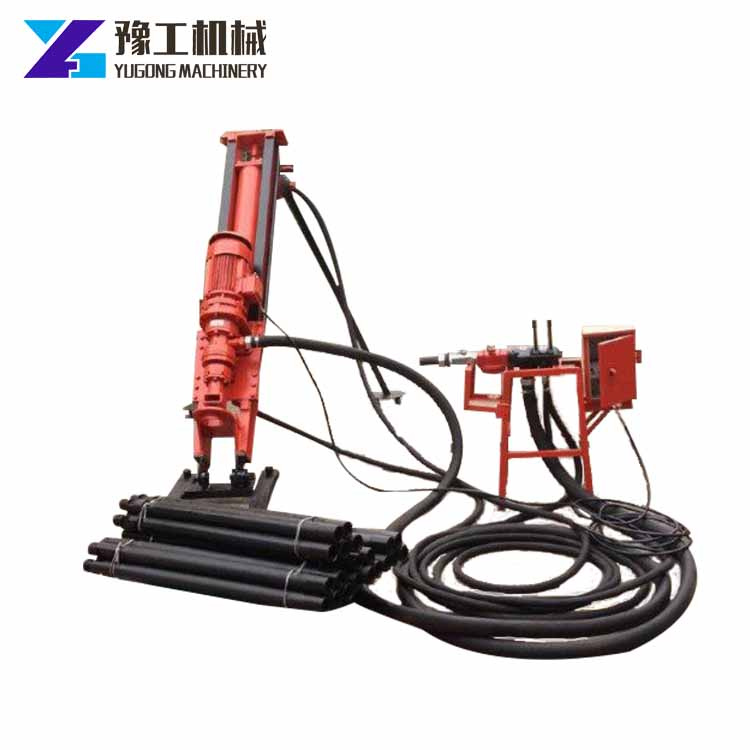

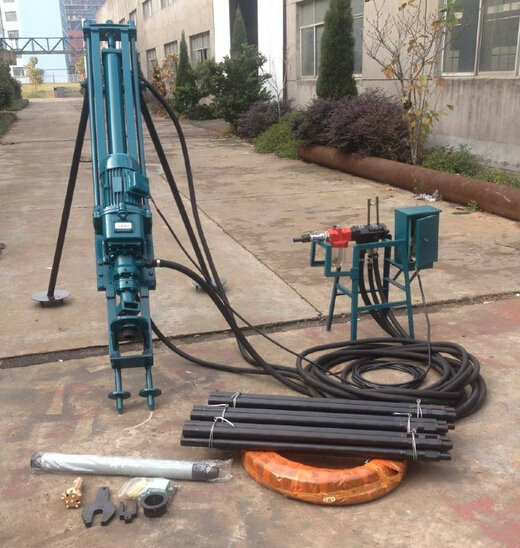

10m 20m Depth Electric Rock Drill Rig
10m 20m Depth Electric Rock Drill Rig is designed for these highway, railway, water conservancy, mine construction engineers which road inconvenient in the earlier projects stage. The auxiliary equipment for supplying power is lighter and easier to relocation and transfer. In the case of utmost reduce the main machine weight can still meet the needs of drilling large diameter and deep hole operations. But also is suitable for the slope support and other projects. So the machine is a kind of portable and economic model.
Product Features
10m 20m Depth Electric Rock Drill Rig
1) Low center of gravity.Reliable and easy to move and transport convenience.Particularly suitable for rugged terrain and original landscape
2) Impactor low air consumption,Supporting air compressor displacement is small,Energy-Efficient Economy
3)Rotary reducer torque is large,In the strong vibration, high load working conditions, good reliability
Model | YGD 70 YGD80 | YGD 100 | YGQ 100 | YGB100-4 YGB120-5.5 |
Drilling diameter (mm) | 50-90/90-120 | 90-130 | 90-130 | 90-130 |
Rock ruggedness coefficient | 20 | 20 | 20 | 20 |
Drilling depth (m) | 15 | 25 | 25 | 30-40 |
Rotate speed (r/min) | 110 | 110 | 110 | 110 |
Working air pressure (Mpa) | 0.5-0.7 | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 |
Air comsumption (m3/min) | 4 | 6 | 12 | 10 |
Propulsion stroke (mm) | 90 | 140 | 140 | 140 |
Max propelled force ( N) | 3600/8000 | 9600 | 9600 | 9600 |
Electric motor power (kw) | 3/4 | 4 | ----- | 4/5.5 |
Electric Motor Voltage( V) | 380 | 380 | ----- | 380 |
Rated speed (r/min) | 1440 | 1440 | 3200 | 1440 |
Drilling rod (mm) | 42 | 50/60 | 50/60 | 60 |
Drilling rod length (mm) | 1025 | 1025 | 1025 | 1025 |
Dimension (mm) | 1740*260*420 | 2280*440*550 | 2230*380*550 | 2230*380*550 |
Weight (kg) | 280/320 | 470 | 450 | 460/480 |
After-sales service
Within 3-7days after receiving the payment(modified need more)
We normally use containers or wooden boxes.
1. Packaging:
1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
FAQ
01) Q: What is your accept payment method?
A: T/T,L/C,Western-Union,Escrow,Paypal and so on.
(30% deposit, and the 70% balance must be paid before shipping )
02) Q:What is your package in shippment?
A: Usually safty export package(iron box) for LCL,Nude package for full container.
Also according to Customer's request.
03) Q:How long about the delivery time?
A: Within 15 days after received deposit.
04) Q: What certificate can you provide?
A: We can provide Certificate ISO9001-2008,BV.
05) Q: How long is your warranty terms?
A: Our Warranty terms is 1 years guarantee.
06) Q: What is the life span of your keyword?
A:usually 8-10 years
