| Prod Model: |
DM4-W046 |
| Shank: |
Round Shank or Hex Shank |
| Surface Finishing: |
Bright ,Amber,Tin,Black Oxide |
| Hardness: |
45HRC |
| Application: |
Soft Wood,Playwood and Hardwood |
| Diameter: |
6-40mm |
| Process: |
Ground |
| Cutting Edge: |
Angled Spurs |
| Head: |
Center Point |
Product Description
Product Description

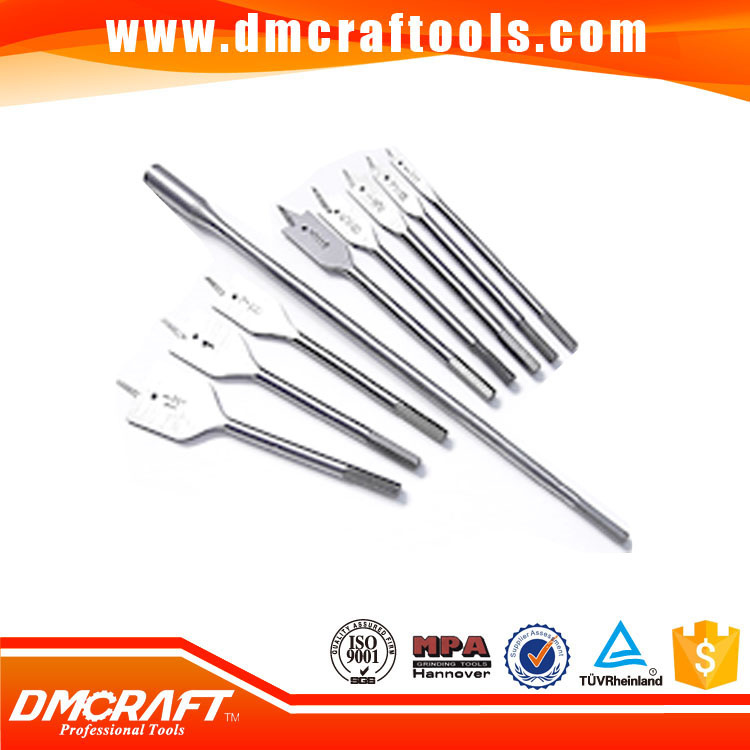

Using an expanded brad point tip with angle spurs and adistinguishable spike,spade bits are a drill bit type use exclusively for drilling large holes through wood.Thery most commonly feature a 1/4 hex shank ,come in a range from 6-38mm in diameter,and can be combined with an extension shank to extend their reach.
* made of high carbon steel or chrome vanadium (crv) with brad point and 2 shouldered cutting spurs.
* centre point enters first; prevents "skating".
* cutting flutes are engineered for optimum chip ejection so drill will not bind and burn out.
* for drilling accurate, splinter-free holes in soft wood, hard wood, plywood and hardboard.
* use in hand drills, electric portable drills, drill presses and lathes.
1.Material:45#Steel .
2.Surface:White Finish.
3.Package:pvc pouch.
wood flat drill bit
Forged in one piece from hign carbon steel
For drilling in soft and close grained wood.
Surface finished:white finished,tin coated
For drilling accurate,splinter-free holess in soft wood,playwood and hardwood
Metric size and different cutting type available.
Product Information
| Wood Flat Drill |
| Process | Shank | Tip | Long(mm) |
| Milled | Round | Hex | 1/4″Hex Quick Change | Normal | Cross Cutter | 3 Spurs with Cross Culter | 152 | 300 | 400 |
Size:
| Art No. | Diameter | Length |
| 30801001 | 6mm | 1/4" | 152mm |
| 30801002 | 8mm | 5/16" | 152mm |
| 30801003 | 10mm | 3/8" | 152mm |
| 30801004 | 11mm | 7/16" | 152mm |
| 30801005 | 12mm | 15/32" | 152mm |
| 30801006 | 13mm | 1/2" | 152mm |
| 30801007 | 14mm | 9/16" | 152mm |
| 30801008 | 15mm | 19/32" | 152mm |
| 30801009 | 16mm | 5/8" | 152mm |
| 30801010 | 17mm | 21/32" | 152mm |
| 30801011 | 18mm | 11/16" | 152mm |
| 30801012 | 19mm | 3/4" | 152mm |
| 30801013 | 20mm | 25/32" | 152mm |
| 30801014 | 22mm | 7/8" | 152mm |
| 30801015 | 24mm | 15/16" | 152mm |
| 30801016 | 25mm | 1" | 152mm |
| 30801017 | 26mm | 1-1/32" | 152mm |
| 30801018 | 28mm | 1-1/8" | 152mm |
| 30801019 | 30mm | 1-3/16" | 152mm |
| 30801020 | 32mm | 1-1/4" | 152mm |
| 30801021 | 35mm | 1-3/8" | 152mm |
| 30801022 | 38mm | 1-1/2" | 152mm |
| 30801023 | 40mm | 1-9/16" | 152mm
|
Product Information
Metric | Inch | Length |
| 6MM | 1/4" | 152MM |
| 8MM | 5/16" | 152MM |
| 10MM | 3/8" | 152MM |
| 11MM | 7/16" | 152MM |
| 12MM | 15/32" | 152MM |
| 13MM | 1/2" | 152MM |
| 14MM | 9/16" | 152MM |
| 15MM | 19/32" | 152MM |
| 16MM | 5/8" | 152MM |
| 17MM | 21/32" | 152MM |
| 18MM | 11/16" | 152MM |
| 19MM | 3/4" | 152MM |
| 20MM | 25/32" | 152MM |
| 22MM | 7/8" | 152MM |
| 24MM | 15/16" | 152MM |
| 25MM | 1" | 152MM |
| 26MM | 1-1/32" | 152MM |
| 28MM | 1-1/8" | 152MM |
| 30MM | 1-3/16" | 152MM |
| 32MM | 1-1/4" | 152MM |
| 35MM | 1-3/8" | 152MM |
| 38MM | 1-1/2" | 152MM |
| 40MM | 1-9/16" | 152MM |
Packing&shipping
Packing:pvc bag,plastic box ,blister card
Shipping
1. TNT/FedEx/DHL/UPS for samples or under 45KG weight goods , Door to Door.
2. By Air or by Sea for batch goods,from airport(seaport) to airport(seaport).
3. Customers specifying freight forwarders or not.
4. Production Time: 3- 7days for samples; 2-3.5 weeks for batch goods
