10000psi Industrial Alloy Drive Hydraulic Torque Wrench with Socket

Prod Model:	MXTA Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Hydraulic Torque Wrench
Max. Working Pressure:	700 Bar
Torque Value:	1483-48666nm
Square Drive:	3/4"-2 1/2"
Bolt Size:	16-115mm
Nut Size:	24-165mm
Net Weight:	2-43kg
Certificate:	Ce, ISO9001:2008
Warranty:	1 Year
Material:	Al-Ti Alloy

Product Description

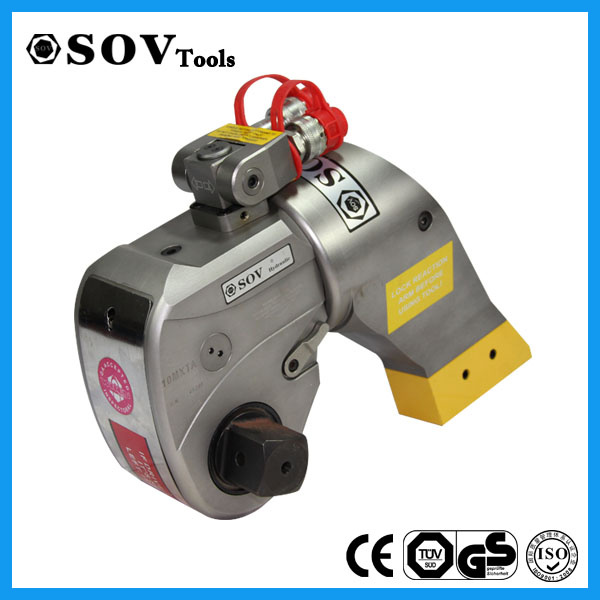

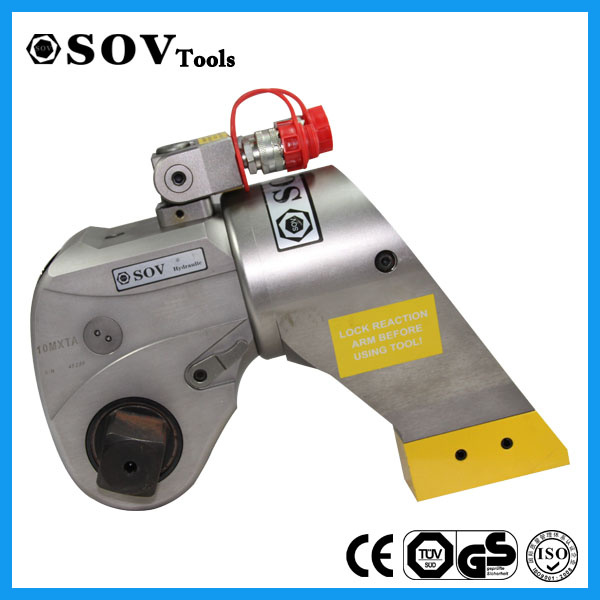

Industrial Alloy Hydraulic Torque Wrench

Product Features:
Patented integrated body design, more sturdy and durable
Rotary-return mechanism design, never-jam mechanism.
Hands-free operation, making the use more safety.
Slim nose radius and 360°×180° swivel hose connection allow easier positioning in confined space.
High repeatability, with accuracy±3%
360°reaction arm, makes the wrench get better supporting
Standard working pressure: 700par.

Technical Paramete

Model	Torque Range (Nm)	Driving Square (inch)	H1 (mm)	H2 (mm)	H3 (mm)	H4 (mm)	L1 (mm)	L2 (mm)	R1 (mm)	Weight (mm)
SOV-1MXTA	183-1837	3/4	50	72	90	131	125	189	26	2
SOV-3MXTA	451-4512	1	68	95	123	176	160	242	35	4.4
SOV-5MXTA	752-7528	1-1/2	80	122	149	198	204	264	42	7.5
SOV-8MXTA	1078-10780	1-1/2	90	130	167	216	222	293	47	9
SOV-10MXTA	1551-15516	1-1/2	100	142	186	231	243	369	53	13
SOV-20MXTA	2666-26664	2-1/2	120	183	220	269	310	386	64	23
SOV-25MXTA	3472-34725	2-1/2	137	200	247	296	330	406	66	31
SOV-35MXTA	4866-48666	2-1/2	147	218	276	331	353	539	75	43

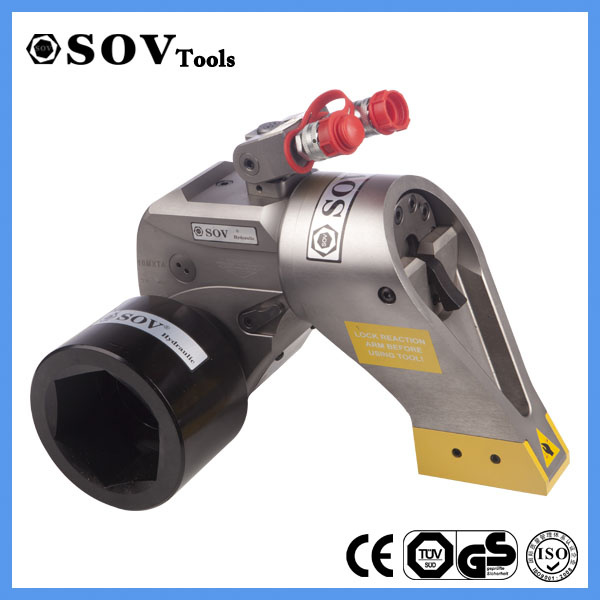

Socket Selection Table

Socket Model	Wrench	Square	Bolt Diameter	Width Across Flats	L1	L2	D1	D2
	Model	Size	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
SOV-MX-75-24	SOV-1MXTA	3/4"	M16	24	54	32	40	40
SOV-MX-75-27			M18	27	54	32	42	42
SOV-MX-75-30			M20	30	54	33	46	44
SOV-MX-75-34			M22	34	54	32	48	44
SOV-MX-75-36			M24	36	57	32	53	44
SOV-MX-75-41			M27	41	58	33	60	44
SOV-MX-75-46			M30	46	63	38	66	44
SOV-MX-75-50			M33	50	65	40	71	44
SOV-MX-75-55			M36	55	70	45	77	54
SOV-MX-100-30	SOV-3MXTA	1"	M20	30	59	32	54	54
SOV-MX-100-34			M22	34	59	32	58	58
SOV-MX-100-36			M24	36	62	32	59	59
SOV-MX-100-41			M27	41	65	38	67	54
SOV-MX-100-46			M30	46	65	38	74	54
SOV-MX-100-50			M33	50	70	43	79	60
SOV-MX-100-55			M36	55	80	52	84	60
SOV-MX-100-60			M39	60	85	57	89	60
SOV-MX-100-65			M42	65	85	58	98	70
SOV-MX-100-70			M45	70	90	62	104	70
SOV-MX-100-75			M48	75	95	65	108	70
SOV-MX-150-36	SOV-5MXTA SOV-8MXTA SOV-10MXTA	1-1/2"	M24	36	85	44	74	74
SOV-MX-150-41			M27	41	85	44	74	74
SOV-MX-150-46			M30	46	85	44	74	74
SOV-MX-150-50			M33	50	90	45	79	79
SOV-MX-150-55			M36	55	90	45	84	84
SOV-MX-150-60			M39	60	100	45	94	94
SOV-MX-150-65			M42	65	100	45	98	80
SOV-MX-150-70			M45	70	105	50	104	80
SOV-MX-150-75			M48	75	110	50	118	85
SOV-MX-150-80			M52	80	115	55	118	90
SOV-MX-150-85			M56	85	125	60	128	90
SOV-MX-150-90			M60	90	125	60	139	90
SOV-MX-150-95			M64	95	130	65	139	90
SOV-MX-150-100			M68	100	135	70	144	90
SOV-MX-150-105			M72	105	135	70	149	90
SOV-MX-150-110			M76	110	135	70	158	90
SOV-MX-150-115			M80	115	135	70	159	90
SOV-MX-150-120			M85	120	135	70	168	95
SOV-MX-150-130			M90	130	155	93	189	95
SOV-MX-250-55	SOV-20MXTA SOV-25MXTA SOV-35MXTA	2-1/2"	M36	55	100	57	86	114
SOV-MX-250-60			M39	60	100	52	119	119
SOV-MX-250-65			M42	65	100	52	119	119
SOV-MX-250-70			M45	70	120	67	128	128
SOV-MX-250-75			M48	75	120	67	128	128
SOV-MX-250-80			M52	80	130	71	128	128
SOV-MX-250-85			M56	85	130	71	129	129
SOV-MX-250-90			M60	90	140	73	139	139
SOV-MX-250-95			M64	95	140	73	139	139
SOV-MX-250-100			M68	100	140	81	148	130
SOV-MX-250-105			M72	105	150	89	149	130
SOV-MX-250-110			M76	110	150	90	158	130
SOV-MX-250-115			M80	115	150	98	168	130
SOV-MX-250-120			M85	120	150	98	178	130
SOV-MX-250-130			M90	130	170	98	188	130
SOV-MX-250-135			M95	135	170	114	198	130
SOV-MX-250-145			M100	145	170	122	210	152
SOV-MX-250-150			M105	150	190	140	216	152
SOV-MX-250-155			M110	155	190	140	229	152
SOV-MX-250-165			M115	165	190	140	241	152

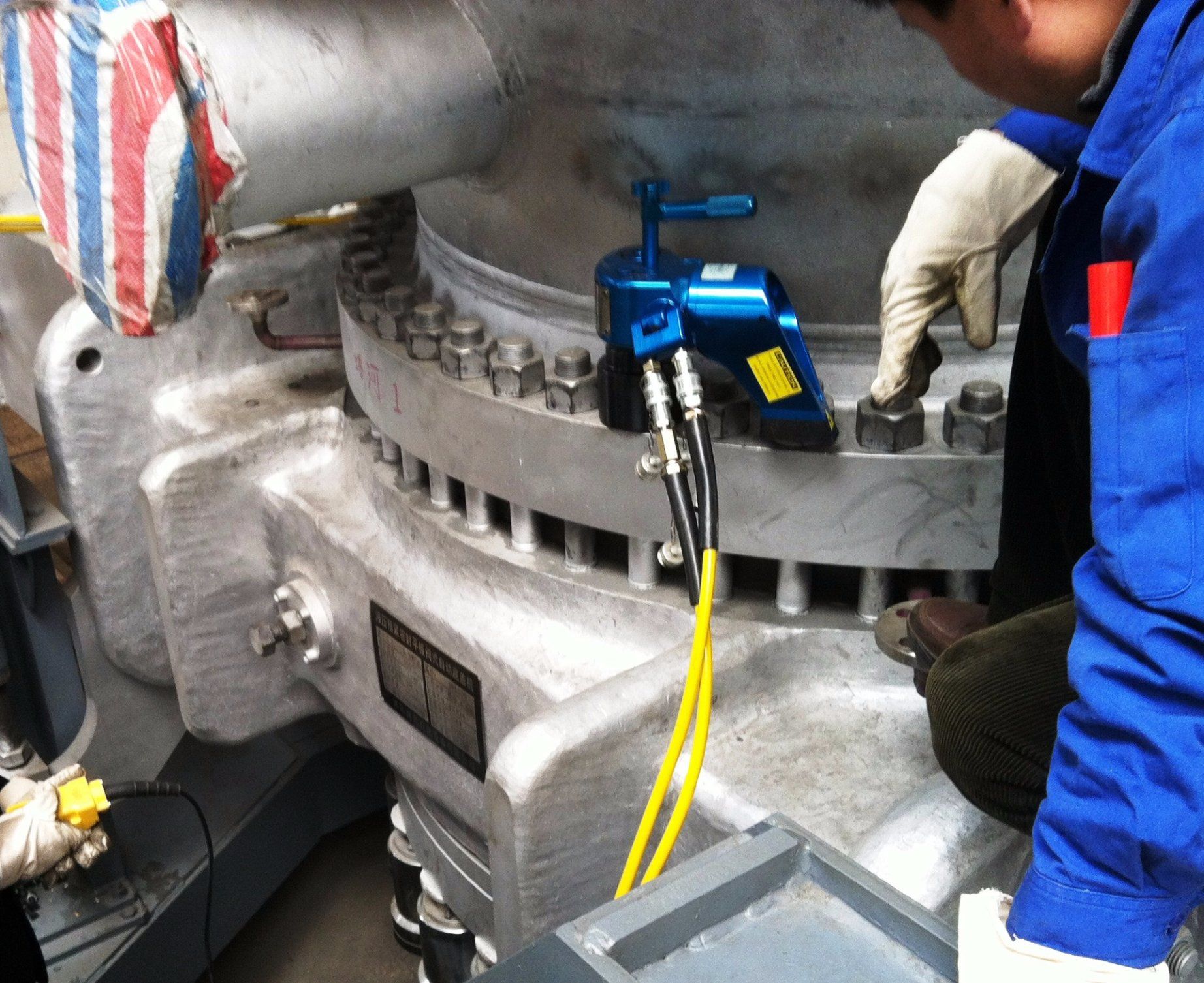

Application: Bolt tightening of large valve

Our Services
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.

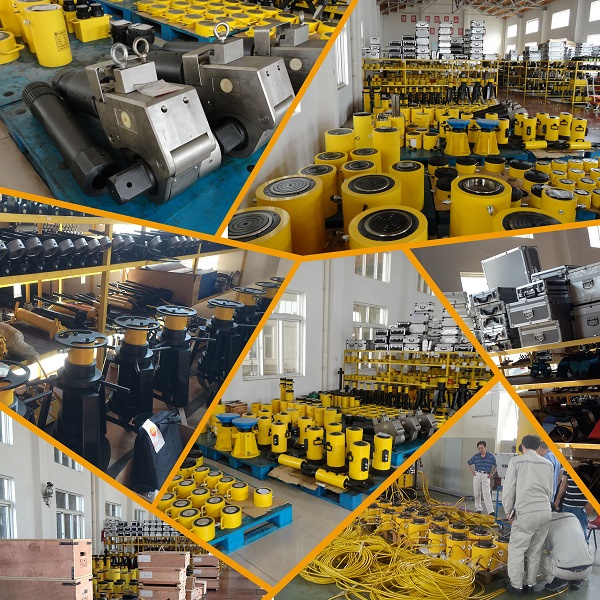

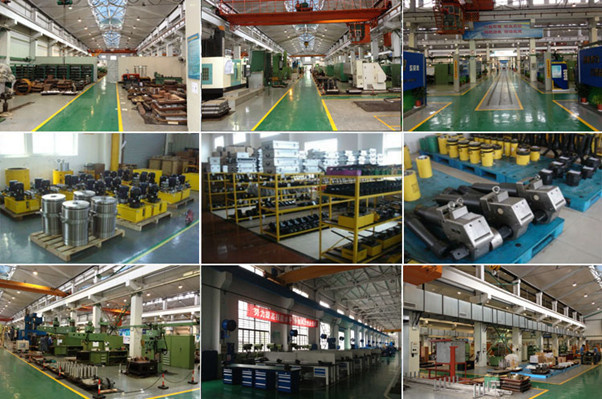

Company Information
