| Prod Model: |
1.2.2.6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Diameter (Inch): |
40 Inches |
| Outer Diameter: |
1000mm |
| Segment Size: |
40X5X10mm X58nos |
| Technology: |
Laser Welding |
| Thickness Of Blank: |
3.5mm |
| Machine Type: |
Wall Saw |
| Kind: |
Wall Saw |
| Manufacturing Arts: |
Welding |
| Usage: |
Engineering Material, Concrete Cutting |
| Saw Blade External Diameter: |
1000mm |
Product Description

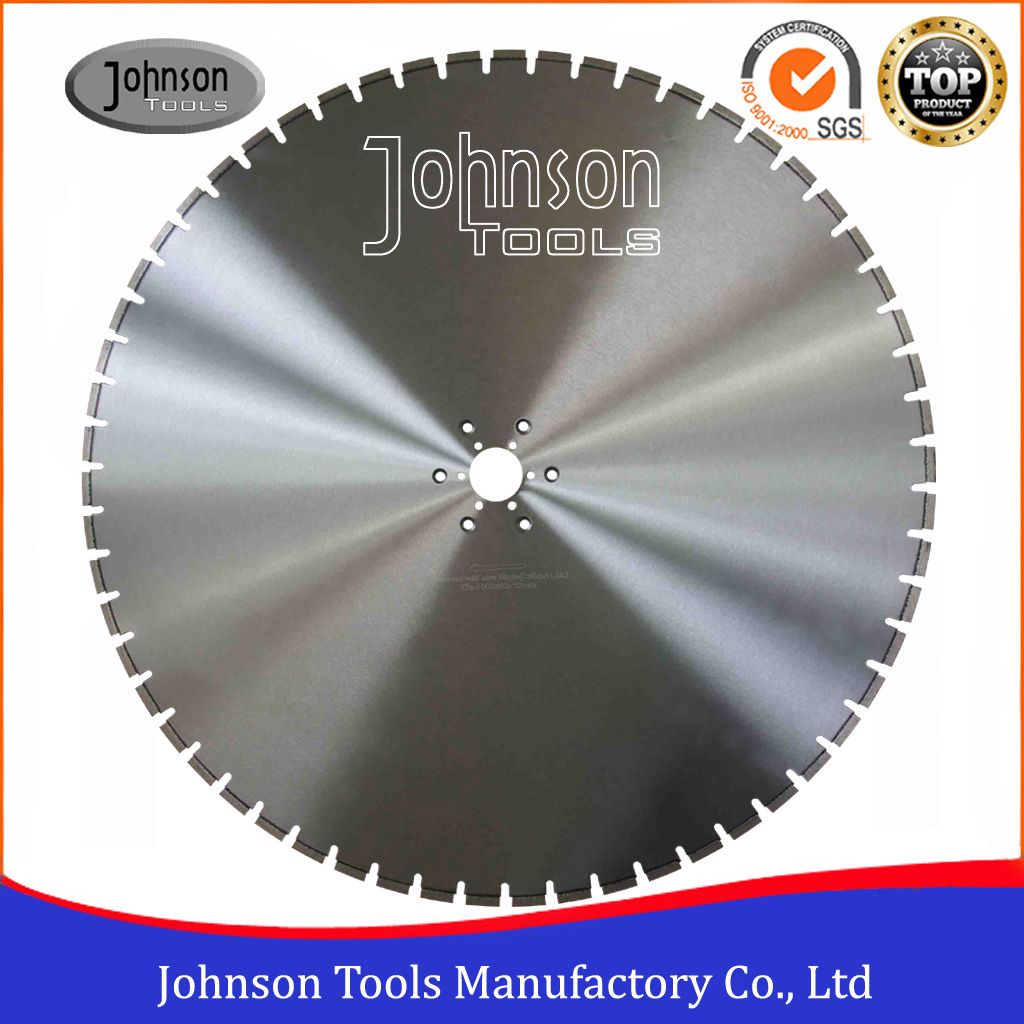

1000mm Diamond Circular Saw Blade wih Long Lifetime for Bridge Cutting
Why choose us
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time
1. Description of 1000mm Diamond Circular Saw Blade wih Long Lifetime for Bridge Cutting
1000mm diamond saw blade is 100% laser welding designed for solving the difficulty of heavily reinforced concrete cuttings. for example, demolition constrcution, including the partial modification and delimotion buildings and walls, opening window holes, doorways, demolition of bridges etc.
Normal type segment ensure long lifetime.
2. Feature of 1000mm Diamond Circular Saw Blade wih Long Lifetime for Bridge Cutting
a. Fit to hydraulic or electric powered wall saw.
b. Any flush-cut bolt holes size available.
c. Dry or wet cutting.
d. Mainly market:Asia, America, Africa, Europe, Australia.
3. Specification of 1000mm Diamond Circular Saw Blade wih Long Lifetime for Bridge Cutting
Diameter:1000mm
Segment thickness:4.8/5mm
Segment height:10/12mm
Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request
| OD (mm) | Teeth specification | Hole(mm) |
| Length (mm) | Thickness (mm) | Height (mm) | Number |
| 1000 | 40 | 4.8/5 | 10 | 58 | 25.4/60 |
| 1000 | 40 | 4.8/5 | 12 | 58 | 25.4/60 |
Other size we could do
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 48" | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 56" | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60" | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64" | 1600 | 40 | 4.8/5 | 10/12 | 92 |
4. Packing and Shipping
5pcs 1000mm wall saw blades are packed in one plywood, gross weight per plywood is limited within 100kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Our Technology:
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7. FAQ
Q: How to place order to your company?
1) Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2) Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3) Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4) Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5) After-Sale Service: Track the goods, learn the products' performance.
6) Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
8. Company information
Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries.
We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.
Johnson Tools people sincerely looking forward to serving you in the near future!
Let's work together to make the business better and better.
9. Contact us
More information about our products, welcome to visit our website www.johnsontoolscn.com and www.diamondsaw-blade.com, you will get more than you can see.
