| Prod Model: |
L12 |
| Noise: |
≥105dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
MET |
| Monitor: |
LED Screen |
| THD: |
<0.005% |
Product Description

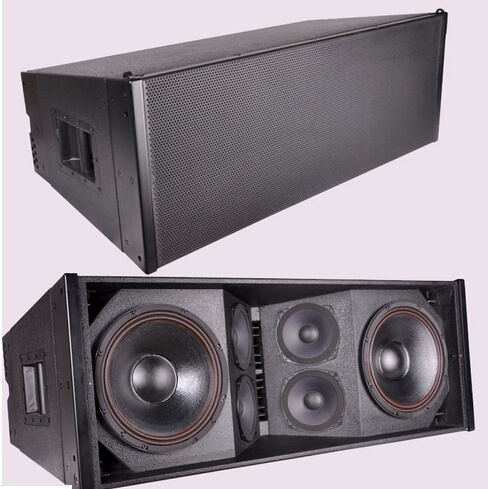

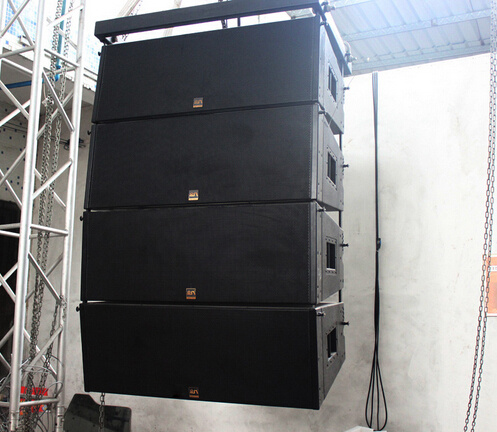

1000watts passive 16ohms dual 12 inch 3 way line array loudspeaker
| System | L12 |
| System Type | 3-way full range |
| Frequency Response | 45Hz - 18 KHz |
| Driver | LF: 12inch*2
HF:1.73inch*2
MF:6inch*4 |
| Sensitivity | 100dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL | 136dB |
| Power Rating(Continuous/Peak) | 1000w/4000w |
| Coverage Pattern | 100° x 16° (H x V) |
| Crossover mode | Built-in |
| suspension | Linear suspension |
| Dimensions (H x W x D) | 1125mm x563mm x 425mm |
| Net Weight | 67.5Kg |
| Shipping dimensions(H x W x D) | 1195mm*625mm*630mm(flycase) |
Our advantage:
1)Our product have passed ISO9001,SGS,CE, CCC, FCC, ROHS, CE-LVD.
2)Customized service are offered to meet our client's demand .Different raw material are optional according to your budget.
3)We are a factory which will provide reasonable price,high quality product and professional service.
4) Fast delivery and excellent after-sale service
About payment and Warranty
| EXW Price | EXW price in Guangzhou |
| Payment method | T/T , Western Union, Paypal,etc. |
| Payment term | 30% deposit before production, The balance to be paid before shipment |
| MOQ | 1 Piece |
| Delivery time | For sample,1 to 3 working days
For batch order,5 to 15 working days
|
| Warranty | Three years |
THREE YEARS WARRANTY
Contact information
my name is kevin , if you have any questions, pls ask me free.
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
