| Prod Model: |
GS-LFDS3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Area: |
3000X1500mm |
| Laser Source: |
Ipg/Rofin Fiber Laser Source |
| Cutting Way: |
Fiber Laser Cutting |
| State: |
New |
| Z Axle Stroke: |
150mm |
| Cooling: |
Water Cooling |
| Continuou Work Time: |
24 Hours |
| Total Protection Level Of Power Supply: |
IP54 |
Product Description
1000w 1500w 2000w 3000w cnc sheet metal laser cutting machine / fiber laser cutting machine /laser cutter for metal
Product description:

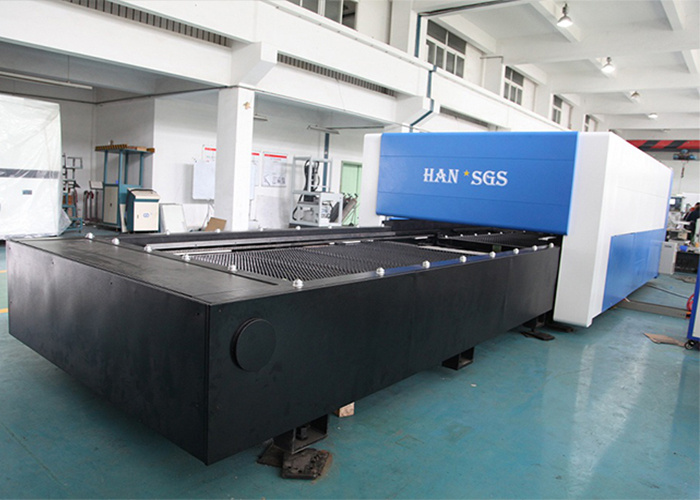

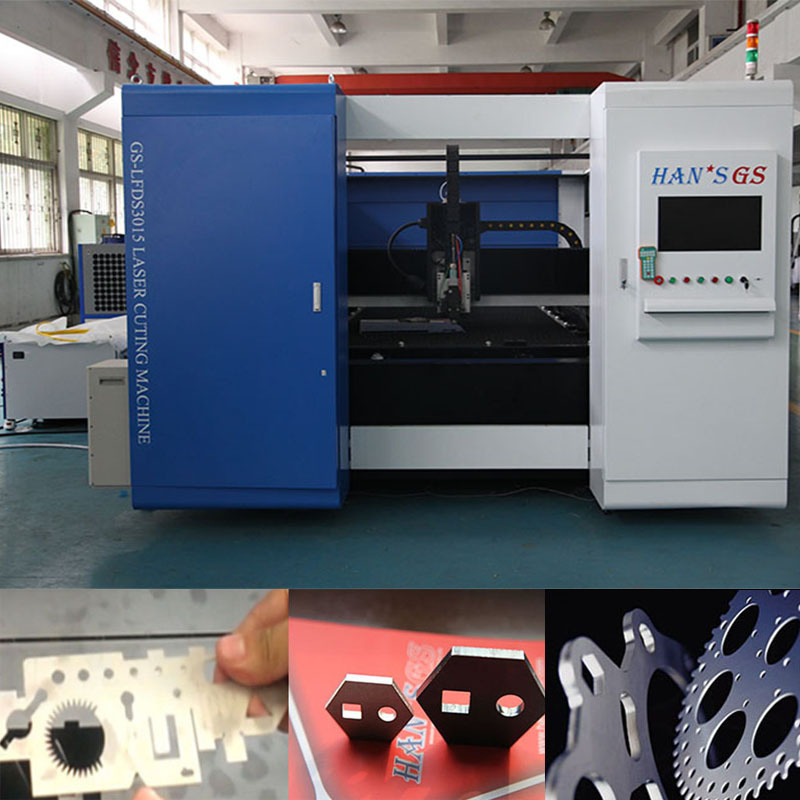

Han's GS series CNC fiber laser cutting machine adopted with gantry type machine tool, aluminum alloy beam, high precision gear rack, linear guide grinding drive system, German professional laser cutting CNC system, is a high-tech product integrated with advanced technologies of laser technology, mechanical technology, numerical control technology, etc.
The design of our equipment is advanced and reasonable, durable and reliable. All the key components have adopted international and domestic well-known brand products, making the system more integrated, more accurate controlling, more stable running to satisfy cutting requirements of the carbon steel, stainless steel and various sheet metals. It is the ideal choice for thin sheet processing. Because of its ultrahigh cost performance, it is called "the most profitable fiber laser cutting machine".
Specifications of the fiber laser cutting machine: | Model | GS-LFDS3015 | GS-LFDS4020 | GS-LFDS6020 |
| Laser source medium | Fiber |
| Cutting range(L*W) | 3000mm × 1500mm | 4000mm × 2000mm | 6000mm × 2000mm |
| Z axle stroke | 250 mm |
| Max positioning speed | 120m/min |
X,X,Y axle Max accelerate speed
| 1.2G |
| Cooling form | water cooling |
| Laser wavelength | 1070nm |
| Output power of laser source | 1000W~ 4000W(imported) |
| Min. cutting gap | ≤0.1mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.01mm |
Thickness of cutting material
(according to material) | 0.2-25mm |
| Drive model | Imported servo motor |
| Power requirement | 380V,50/60Hz |
| Working temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Machine weight | About 11440Kgs |
| Outer dimension | 8500mm x 3800mm x 2000mm |
| Total protection level of power supply | IP54 |
Advantages of the fiber laser cutting machine:
1. Smaller Focal spot and cutting gap. Much more efficient and better processing quality.
2.Extremely high cutting speed which equals to two times of tradition CO2 laser cutting machine with same power specification.
3.Adopt international top brand laser source with stable performance.
4.The photoelectric conversion rate is three times higher than traditional CO2 laser cutting machine, and it's environmental protection.
5.Lower running cost compared with traditional CO2 laser cutting machine, the power consumption is 20%-30% of CO2 laser cutting machine.
6.The maintenance cost of fiber laser cutting machine is much lower since it's without reflective lenses.
7.Convenient operation with fiber transmission, laser route adjustment is unnecessary.
8.Satisfied with flexible processing with small size and intense structure design.
9.Gantry design with double drive structure, high damping machine tool with better rigidity which can stand higher speed and acceleration speed.
10.Adopt with imported AC server motor system and transmission system to ensure the high speed, high precision and high reliability.
11.The rack and guide is comprehensively sealed to prevent the friction without oil and dust pollution in order to make the drive system much longer service time and ensure the movement precision of the machine tool.
12.Professional CNC laser control system with computer control which is more simple and convenient for operation.
13.equipped with central lubrication devices at the same time to guarantee the long-term stability and reliable running.
14.There is collection device below cutting bed, small cutting material and metal powder will be collected in it.

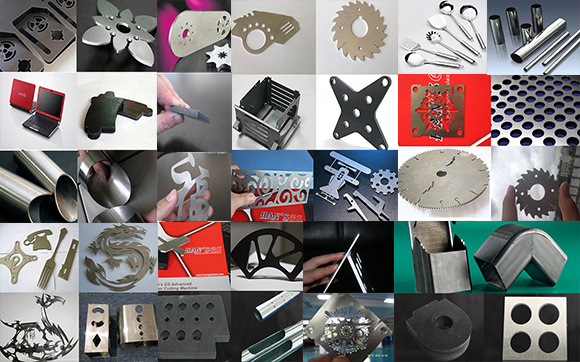

Laser cutting machines Highlights1.It is used to cut the metal materials,such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanize plate, pickled plate, copper plate, aluminum plate, etc.
2.Our Laser Cutting Equipment will participate in the exhibition every year, to provide the highest quality products and services to our customers
Our Services
1. Pre-sale Service
Welcome to send your sample to our company for testing. We will supply testing report with video and photos together for your consider.
2. In-sale service
We can supply experienced engineer of Han's Laser, Han's Laser has world-wide service offices. Thus save your time and cost, and convenient to maintain your machines in the future.
3. After-Sale Service
Our aftersale network is all over the world which will provide the comprehensive aftersale service to our customer. One year guarantee for the whole equipment. We will answer your questions within 24hours. About Han's GS laser:

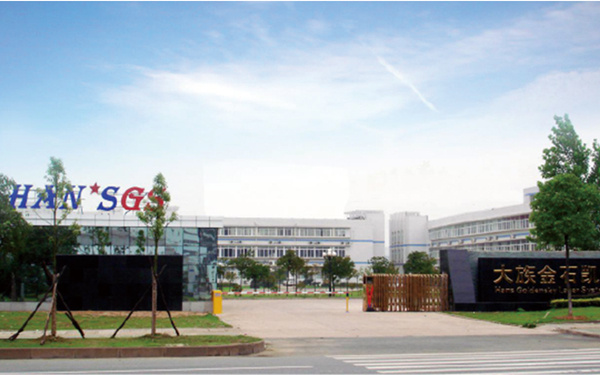

Han's Goldensky is the High power laser expert in China.
1.Located in Wuhan"Optics Valley" Core enterprise
2.Founded in 1998;Registered capital is $13 million, Total assets is $24.6 million
3.Han's Goldensky Science and technology park, the first phase of construction is 20000 square meters
4.Three products are included in The National Torch Plans Key projects list
SaveSaveSave
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
