| Prod Model: |
GS-LFDS3015 |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Certification: |
Ce, ISO 9001:2000 |
| Automation: |
Semi-Automatic |
| Condition: |
New |
| Type: |
Laser Cutting Machine |
| Type For Fold-Bending Machine: |
Laser Cutting Machine |
| Type For Pipe And Tube Bending Machine: |
Laser Cutting Machine |
| Power Source: |
Fiber Laser |
Product Description

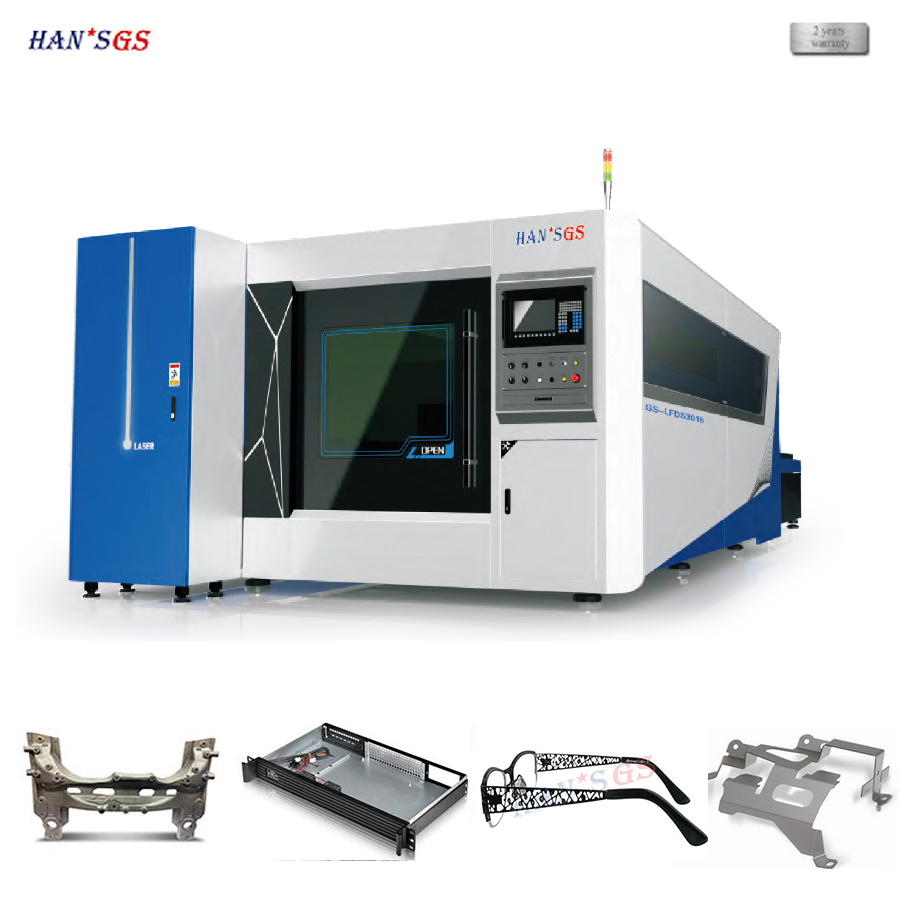

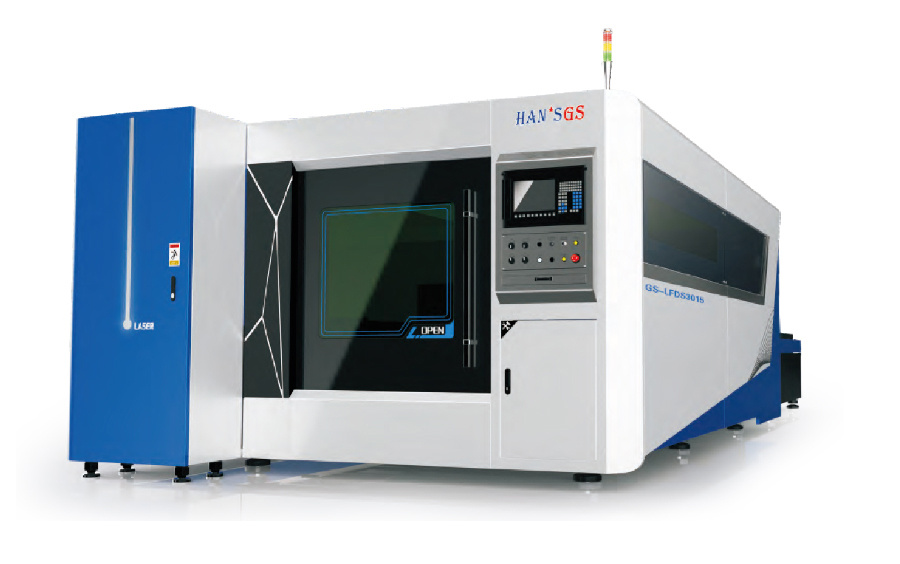

Fiber laser cutting machine,metal sheet cnc laser cutter for aluminum , steel , metal plate
Fiber Laser Cutting Machine Performance
1. Excellent overall performance, changeable working tables, 7 seconds to finish high speed changing, improve working efficiency of more than 48%.
2. The machine tool includes loading area and processing area, standard configuration is changeable working tables, auto change the workpiece between processing area and loading area by motor, convenient to upload and download. With the design of changeable working table, could prepare the next uploading while processing, highly improved working efficiency.
3. Equipped with exhaust device, have good exhausting effect and little pollution.
Product
Fiber Laser Cutting Machine Different Laser Sources Comparing
| Model | GS-LFDS3015 | GS-LFDS3015 | GS-LFDS3015 |
| Laser source medium | Fiber |
| Cutting range(L*W) | 3000mm × 1500mm | 3000mm × 1500mm | 3000mm × 1500mm |
| Z axle stroke | 150 mm |
| Max cutting speed | 40m/min | 42m/min | 45m/min |
| Max positioning speed | 140m/min |
| Wok platform size/Max height of feeding material | 4250x2500mm/more than 120mm |
| Cooling form | water cooling |
| Laser wavelength | 1070nm |
| Output power of laser source | 1000W (imported) | 1500W (imported) | 2000W (imported) |
| Min. cutting gap | ≤0.1mm | ≤0.125mm | ≤0.125mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm |
Thickness of cutting material
(according to material) | 0.2-8mm | 0.2-12mm | 0.2-16mm |
| Drive model | Imported servo motor |
| Power requirement | 380V,50/60Hz |
| Working temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Machine weight | About 5950Kgs |
| Outer dimension | 7828mm x 3741mm x 1940mm |
| Total protection level of power supply | IP54 |

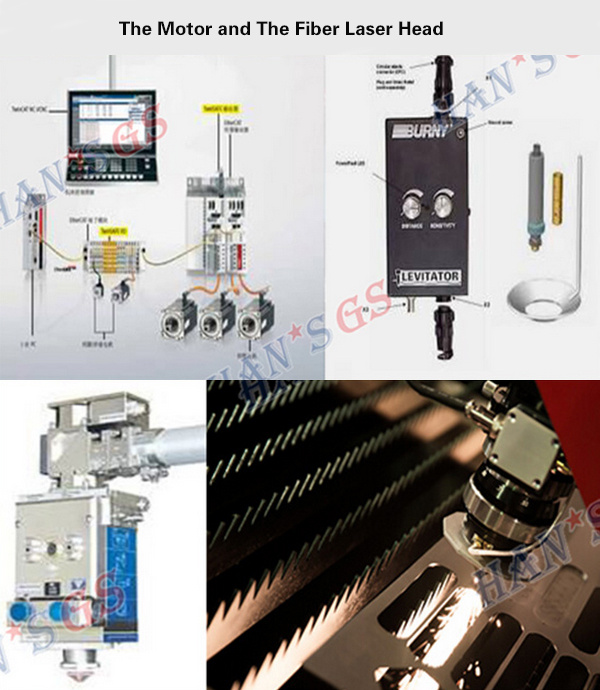

Fiber Laser Cutting Machine Germany Original Precitec Laser Cutting Head
Laser cutting head of stable performance and convenient operation and maintenance
1. With Germany original PRECITEC fiber laser cutting head and non contact capacitor auto tracking system , Z-axis floats stability, auto adjusts optimal focal distance.
2. Two different focus lenses, adapt to cutting various thickness materials, assure the optimal cutting effect.
3. The laser cutting head can bear 2.0Mpa pressure, high pressure gas path, improve cutting ability for the materials difficult to cut such as stainless steel.
Cutting sample
Please let us know following informations:1.What kind of material do you want to cut?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
