| Prod Model: |
XY-200F |
| Name Item: |
Small Drill Wells |
| Max Depth: |
200m |
| Max. Drilling Diameter(mm): |
75-400mm |
| Application: |
Water Wells, Geothermal Wells, Core Drilling,etc |
| Control System: |
Hydraulic Control System |
| Drilling Tower: |
Hydraulic Integrated Drilling Tower |
| Support Legs: |
Four Hydraulic Support Legs |
| Diesel Engine: |
22HP Electric Start Diesel Engine |
| Mud Pump: |
Bw-160 Mud Pump, 160L/Min |
| Operation Training: |
Offer Free Operation Training |
Product Description

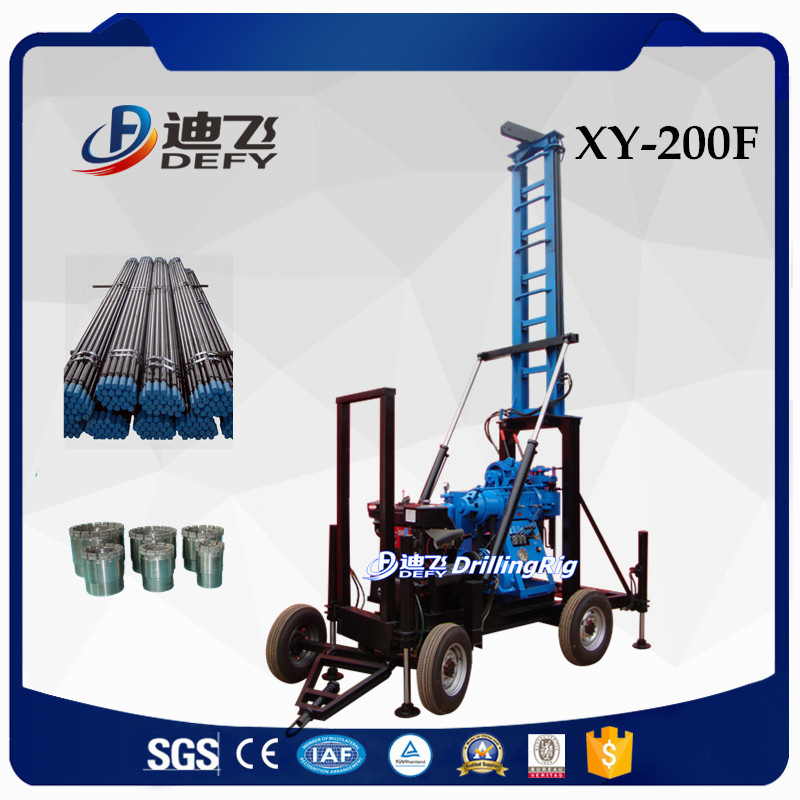

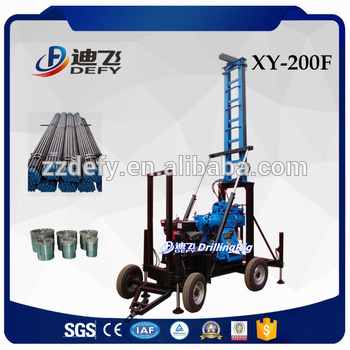

XY-200F 100m-200m Portable trailer mounted small drill wells Advantages:Drilling Capacity: Can drill max 200m depth, diameter range 75mm-400mm.
Diesel engine: 22HP electric start diesel engine.
Mud pump: BW-160 mud pump, 160L/min.
Drilling Tower: Hydraulic integrated telescoped drilling tower.
Support legs: Four hydraulic support legs.ensuring working stability.
Quality Certificates: SGS, BV,CE, ISO
Technical Parameter: | XY-200F 100m-200m Portable trailer mounted small drill wells |
| 1. Main parameter |
| Model | XY-200F |
| Drilling depth | 200m |
| Maximum borehole caliber | 400mm |
| Minimum borehole caliber | 75mm |
| Weight(including diesel engine) | 1950kg |
| Unity machine dimension | 2750*950*1600mm |
| 2. Vertical Spindle | |
| Spindle rotating speed | 64,128,287,557r/min |
| Spindle stroke | 450mm |
| 3. Hoist | |
| Max. single line lifting capacity | 1600kgf |
| Reel lifting speed | 17,35,75,151m/s |
| 4. Mud pump | |
| Type | BW-160 |
| Type | Horizontal Single Cylinder with 2 purpose |
| 5. Power | |
| Diesel engine | 22HP |
| Electric | 15KW |
| 6. Drilling tower | |
| Type | Integrated on drilling rig |
| Control system | Hydraulic |
Company Certificates:
Contact Info:Dear friend, are you looking for 100m-200m Portable trailer mounted small drill wells? i am ready to help you, if you have any questions, please feel free to contact me.
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience.
Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advices whenever you need.
Benefiting from the excellent performance of our drilling rigs, as well as our professional service, we have established friendly business relations with clients all over the world. Our products are serving for projects in Africa, South America, United States, Asia and so on. We cordially look forward to cooperating with you, let's work together to realize win-win result!
