| Price: | US $ 15000-19000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | XY-200C |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Drilling Depth: | 200m |
| Rated Borehole Diameter: | 400mm-75mm |
| Contrlling System: | Fully Hydraulic |
| Power Supply: | 22HP Diesel Engine/15kw Electrical Motor |
| Warranty: | 1 Year for Main Machine |
| Drill Tower: | Hydraulic Rise and Fall,Integrated on Drill Rig |
| Configuration: | Provide All The Accessories for Drilling |
| Movement: | Self-Propelled Crawler Chassis |
| Mud Pumpd: | Independent Bw-160 |
| Training: | Free Training,Manul and Operation Video |
| Power Type: | Diesel |
| Type: | Core Drilling Rig |
| Condition: | New |
| Usage: | Coring |

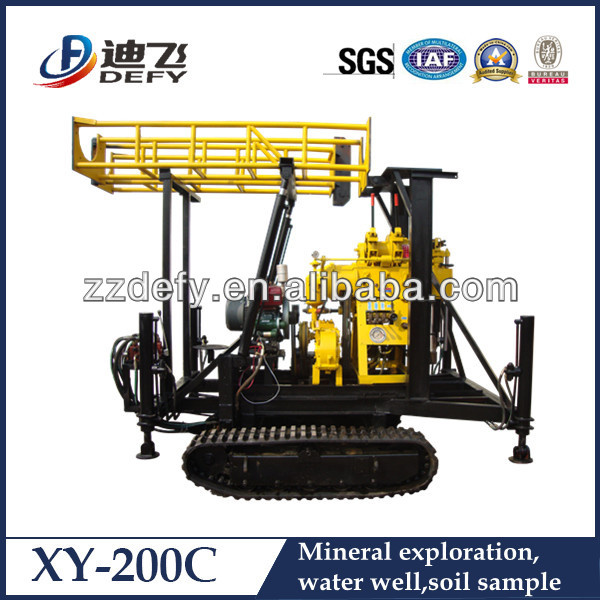

Model XY-200C crawler mounted granite core sampling drilling rig
*200m depth,75~400mm diameter
*For water wells,Geothermal wells,Irrigation wells,Exploration Coring and so on
*Advanced hydraulic automatic mast,mechanical or hydraulic support legs
*Using different drill tools for soft ground or hard rock layer
*Independent BW-160 mud pump
Features:
(1) With integrative drilling tower, supported by Four high strength oil cylinder, hydraulic controlling the rise and fall of the tower, operation is extremely convenient, saving time and labor effort.
(2) The chassis uses crawler,self propelled,people can sit and handle, achieve rapid turnarounds, very convenient.
(3)Chassis have four high strength hydraulic legs,while working to support reliable stability.
(4) Uses the electric-start diesel engine, greatly reduces the labor intensity of operators, especially more efficient in the cold season when the diesel engine start is difficult, showing its great advantage.
(5) The machine is equipped with a complete set of independent BW - 160 mud pump, with high pump flow rate and pressure, convenient maintenance, convenient to buy spare and accessory parts all around.
Zhengzhou DEFY:

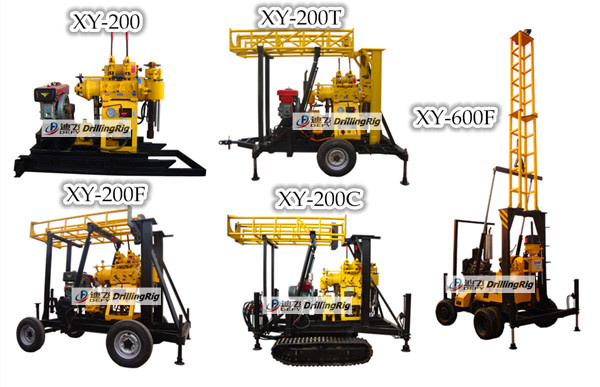

We offer different capacity 100m,200m,300m,400m,600m drilling rig with trailer,tractor,crawler,truck chassis. From traditional to advanced, from economical to effective, if you are interested, please do not hesitate to contact with us.
Drilling depth | 200m |
Maximum borehole caliber | 400mm |
Minimum borehole caliber | 75mm |
Diameter of Drill pipe | 42,50,60mm |
Drilling angle | 90°~75° |
Weight(Not include power) | 810kg |
Unity machine dimension | 2750*950*1600mm |
