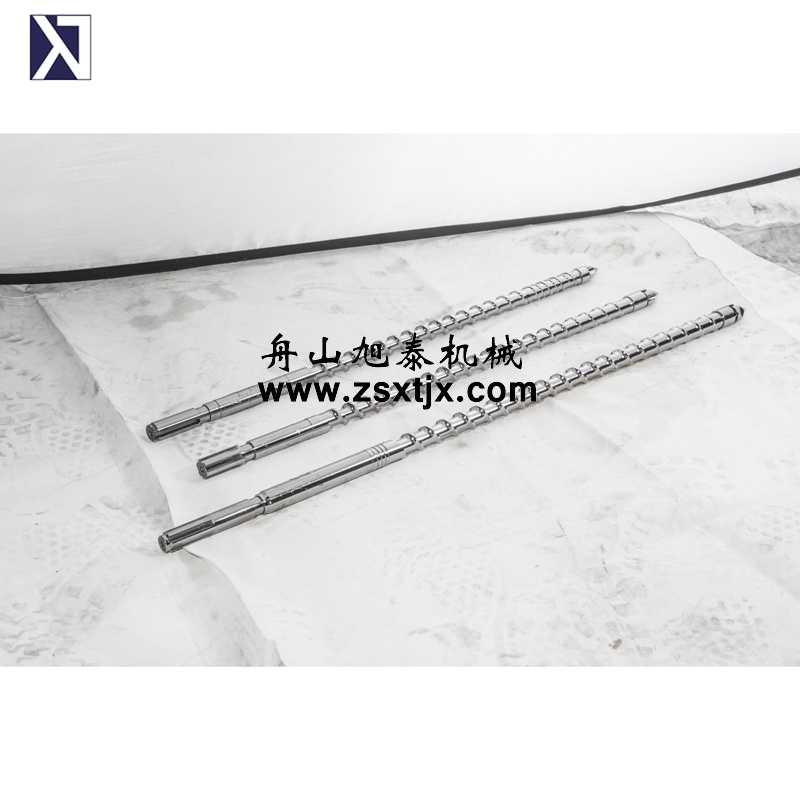

100mm PP Injection Molding Machine Screw Barrel

100mm PP Injection Molding Machine Screw Barrel
Price: US $ 199-4999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Prod Model: XTIS
Material: 38crmoala 42crmoala SKD61

Product Description

Xutai MachineryTM

Screws are designed to provide improved melt quality and increased production.

We Xutai machinery is a leading supplier of Extruder Feed machine, Injection machine, Blow molding machine Screws and Barrels.

1) Located in the hometown of screw and barrel--Jintang Town, Zhejiang Province, China.Where has raw material market, screw machining and heat treatment technology and much improved technicals to make sure of screws quality.

2) High quality control system, tolerance 0.01 are available.

3) Within 2.5 hours distance from Shanghai airport, and 1 hour from Ningbo airport, we also have very convince transportation port.

4)100% totally manufactory made with an experience international trade team.

5) ISO9001 and SGS certification


Specification
Place of Origin: Zhejiang Brand Name: XTModel Number: SSE001
Application: Extrude machineApplica.Material:PE/PS/PVCMaterial: 38CrMoAla
Surface treatment: NitridingWarranty:12monthsAdvantage:improving working life


Technical parameter
Techical IndexNitriding layer depth: 0.5-0.8mmProcessing1.Heat treatment
Nitration hardness: 900-1020HV2.Quenching
Depth of bimetallic layer: 3mm3.Nitriding Treatment
Hardness of bimetallic layer:HRC55~724.Bimetallic alloy welding for screw
Thickness of Cr-coating layer: 0.03-0.08mm5.Bimetallic alloy centrifugal casting for barrel
Hard-Chrome plating hardness after nitriding≥9506.Hard-Chrome electroplating
Surface roughness :Ra 0.47.Linearity of Screw:0.015mm
Main Material1.38CrMoAla/ JIS SCM645Main Alloy
Material
1. Ni-based alloy/Deloro alloy
2.SKD-612. Tungsten carbide/Wolfram carbide
3.42CrMoAla(SCM440)3. NiCo-based alloy
4.W6Mo5Cr4V24. Fe-based alloy
5.9Cr18MoV5. Co-based alloy


Model & Details
Amount of injection(g)Diameter of Screw X Length(mm)Diameter of Barrel
X Length(mm)
Amount of injection(g)Diameter of Screw X Length(mm)Diameter of Barrel
X Length(mm)
30-90Φ30x900Φ85x860800-1250Φ75x1825Φ170x1725
60-125Φ35x910Φ85x8601000-1500Φ80x2000Φ180x1805
100-150Φ38x935Φ95x9002000-3000Φ85x2300Φ190x1900
125-160Φ40x980Φ95x9102500-5000Φ90x2700Φ210x2000
125-300Φ42x1030Φ105x18802500-5000Φ100x2600Φ230x2405
250-400Φ45x1210Φ115x11653000-6000Φ110x2600Φ256x2590
300-500Φ50x1300Φ125x12604000-10000Φ120x2800Φ256x2800
450-600Φ55x1335Φ130x13206000-8000Φ130x3010Φ256x2970
500-700Φ56x1350Φ130x13508000-10000Φ145x3010Φ256x3200
500-700Φ60x1380Φ140x135010000-15000Φ160x3500Φ270x3200
650-800Φ65x1415Φ150x142013000-25000Φ170x3415Φ317x3380
700-1000Φ70x1790Φ160x1685---

Application
Plastic Machine: PP, PE,ABS,AS,PS,PC,PET




Processing
Nitride Screw Processing                                           Nitride Barrel Processing
1.High Quality Material                                1.High Quality Material

2.Heat treatment(quenching and tempering)             2.Rough machining(inner diameter)     3.Rough machining                                    3.Inspection
4.Heat  Treatment(shaping)                             4.Presision machining
5.Presision machining                                  5.Rough milling
6.Rough milling                                        6.Inspection
7.Inspection                                            7.Heat treatment(Nitride hardening)
8.Heat treatment(Nitride hardening)                       8.Presision milling
9.Precision milling                                       9.Inspection
10.Inspection                                            10.Packing and Delievery
11.Packing and Delievery








With more than 12 years specialized screw and barrel producing experience

Zhoushan XuTai Machinery is one of the leading manufacturer of conical twin/parallel twin screws /single screw/injection molding screw/rubber machine/bimetallic screws/planet screw etc.

Located in Zhoushan City, Zhenjiang province, where is the hometown of China screw and barrel, we owned a complete team for designing/producing /selling and service. Quality is controlled from the very beginning of concept to inspection during The whole products' life circle.

Our enterprise has passed ISO9000 and SGS certification. Our aim is to supply not only the good quality products but also best service and solution for worldwide customers

Main Products

--conical twin screw and barrel

--parallel twin screw and barrel

--single screw, extruder screw, barrel

--injection molding machine screw and barrel

--rubber machine screw and barrel

--bimetallic screw and barrel

--planetary screw and barrel

--accessories of injection molding machine screw

--Gear box series

--Extruder machine

Main market

Plastic products machine: PP/PVC/ABS/PE/RUBBER

Food extruder machine: Pet food extruder/meat grinder extruder/ animal food extruder

Main Customers

--German Mado food extruder expert

--GATES Fluid Power Technologies

-AMPHENOL

-Prysmian Gruop

--screws for kraussmaffei/Cincinnati/Haitian/LK /Tongjia etc
