Product Description

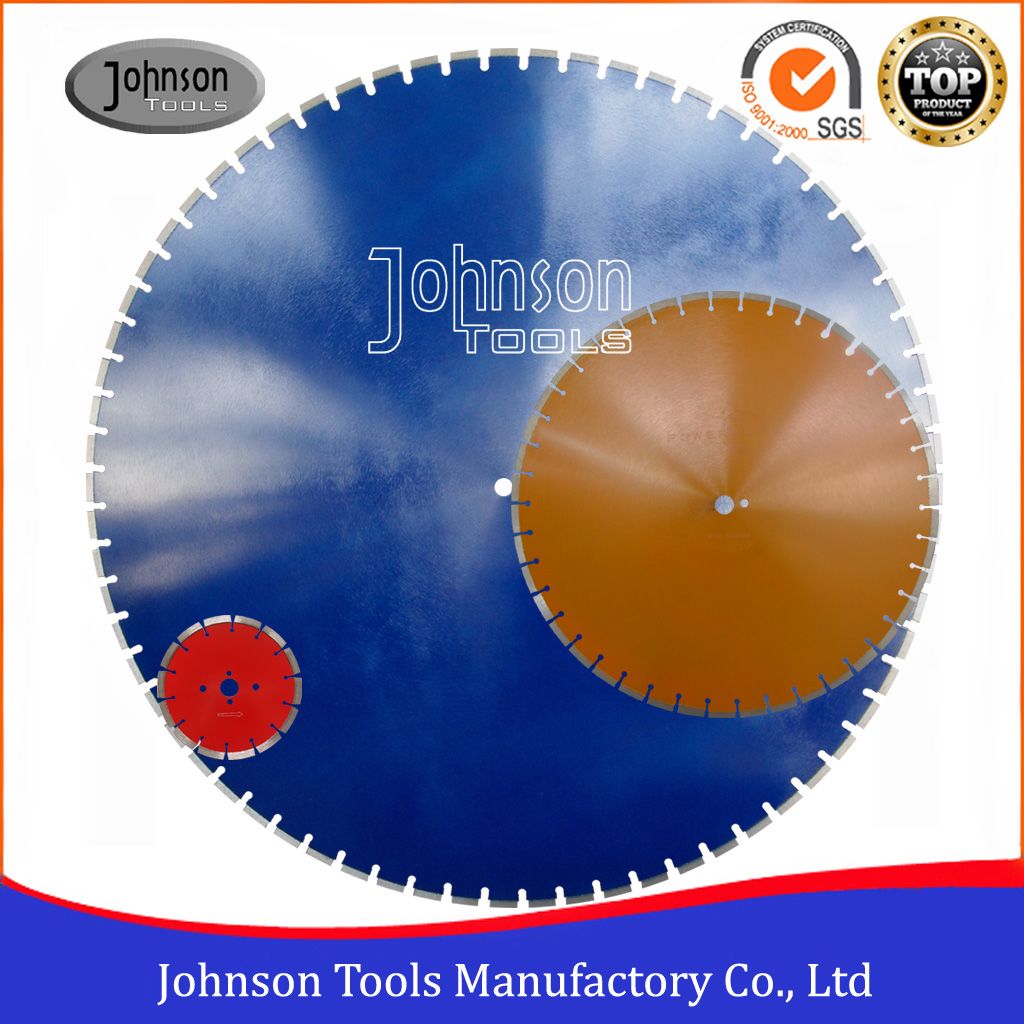

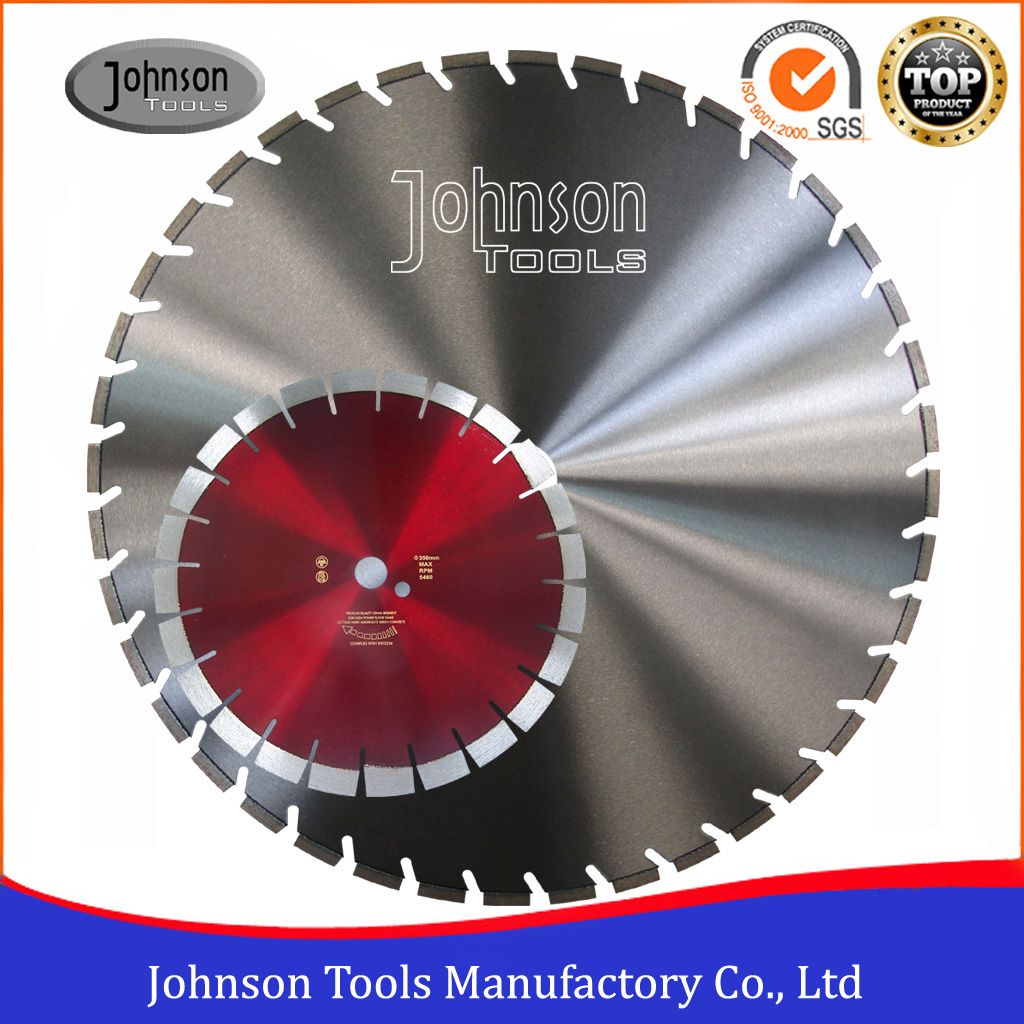

105-600mm Diamond Concrete Saw Blades for Reinforced Concrete Cutting
Why choose usEstablished in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time1. Description of 105-600mm Diamond Concrete Saw Blades for Reinforced Concrete CuttingConcrete Cutting Saw Blades are professionally designed for wet or dry cutting reinforced concrete, high quality diamond makes faster cuting and longer cutting life.

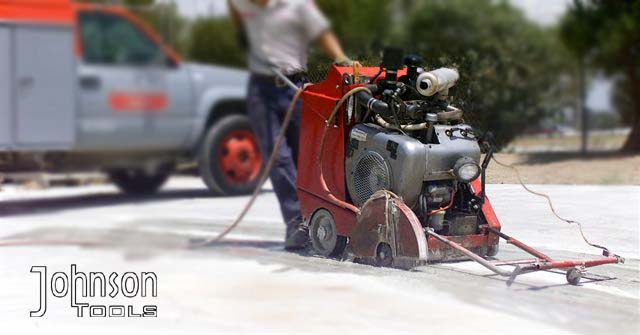

Application on Angle Grinders, table Saws, walk behind concrete saws, handheld power saws.
2. Feature of 105-600mm Diamond Concrete Saw Blades for Reinforced Concrete Cutting1) High precision and speed for cutting Reinforced concrete
2) Widely used in various types of concrete structural, such as concrete, reinforced concrete, cured concrete, green concrete, brick concrete, concrete pipe.
3) Cutting reinforced concrete is not restrictedby the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.
3. Specification of 105-600mm Diamond Concrete Saw Blades for Reinforced Concrete CuttingDiameter:105-600mm
Segment thickness:2.2-4.4mm
Segment height:7/10/12/15mm
Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
4. Packing and ShippingEach laser saw blade is packed in white box, then 5-10pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment termT/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Client Feedback

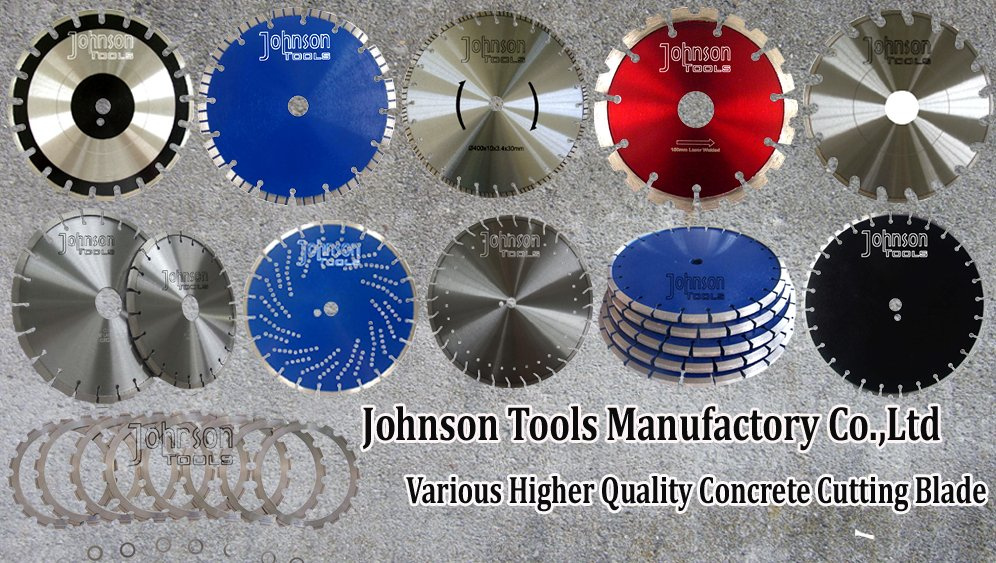

7. Our Related Products

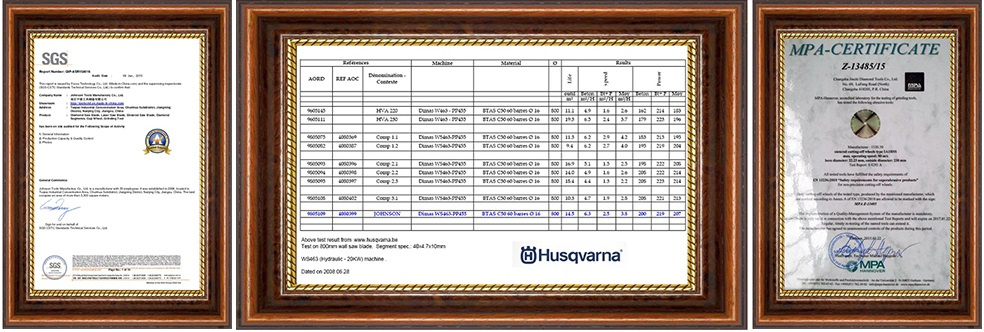

8. Certification
9. Our Exhibition
10. FAQ
Q: How to place order to your company?
1.Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2.Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3.Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4.Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5.After-Sale Service: Track the goods, learn the products' performance.
6.Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
