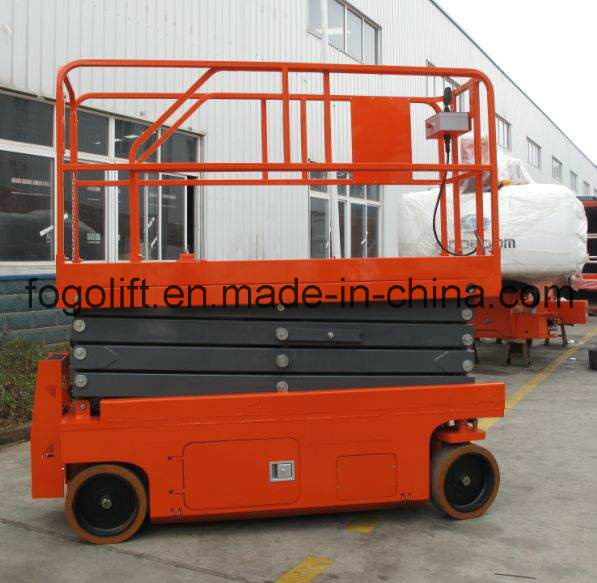

10m Self-Propelled Battery Power Working Platform Lift
| Price: |
US $ 8499/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
SJYZ0.3-10 |
| Capacity: |
300kgs, 500kgs |
| Working Height: |
4-14meters |
| Power Unit: |
24V/3kw |
| Charger Volt: |
110V, 220V, 380V/50Hz, 60Hz |
| Forward Speed: |
Less Than 10km/H |
| Application: |
Warehouse Crane |
| Carrying Capacity: |
Light Level |
| Driven Type: |
AC |
| Running Mode: |
Moving |
| Feature: |
Insulating |
Product Description
10 m self propelled scissor lift /aerial work platformProduct Description
1. Advantage:
-- you can control it on the platform and on the chassis, operate easily and freely.
-- extension platform, large working place.
-- Removable guardrail
-- 90 degree steering wheel can run in high and low speed.
2. Main parameter:| Model No. | SJYZ0.3-10 |
| Max. Platform Height | 9.8m |
| Max. working Height | 11.5m |
| Lift Rated Capacity | 320kg |
| Platform Size(A*B) | 2.26*1.13m |
| Platform Extend Length | 0.9m |
| Max. Drive Speed(Platform Stowed) | 3.2km/h |
| Max. Drive Speed(Platform Elevated) | 0.8km/h |
| Min. Turning Radius | 2.3m |
| Grade-ability | 25% |
| Tyre | 0.305*0.125m |
| Lift motor | 24/3
v/kw |
| Battery | 4*6/230
v/Ah |
| Charger | 24/20-30
v/A |
| Ground Clearance | 100/21mm |
| Overall Length-D | 2.485m |
| Overall Width -E | 1.15m |
| Overall Height -C | 2.41m |
| Min. Platform Height-G | 1.31m |
| Overall Net Weight | 2450kg |
3. Introduction:
1. The scissors lift tables storage battery as the power source, and makes low noise and no emission when working, so it can be used in indoor occasions such as workshops, warehouses, hotels, ect.
2. Larger working space: The platform can extend on one side, whic can enlarge the working space.

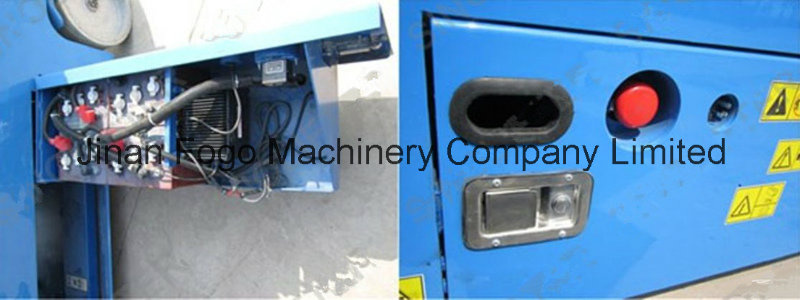

3. Swing-out battery box and power moduletrays allow easy access to engine componentsfor convenient service
4.Scissor platforms offer up to 25% grade ability when driving on slopes with safety protection.

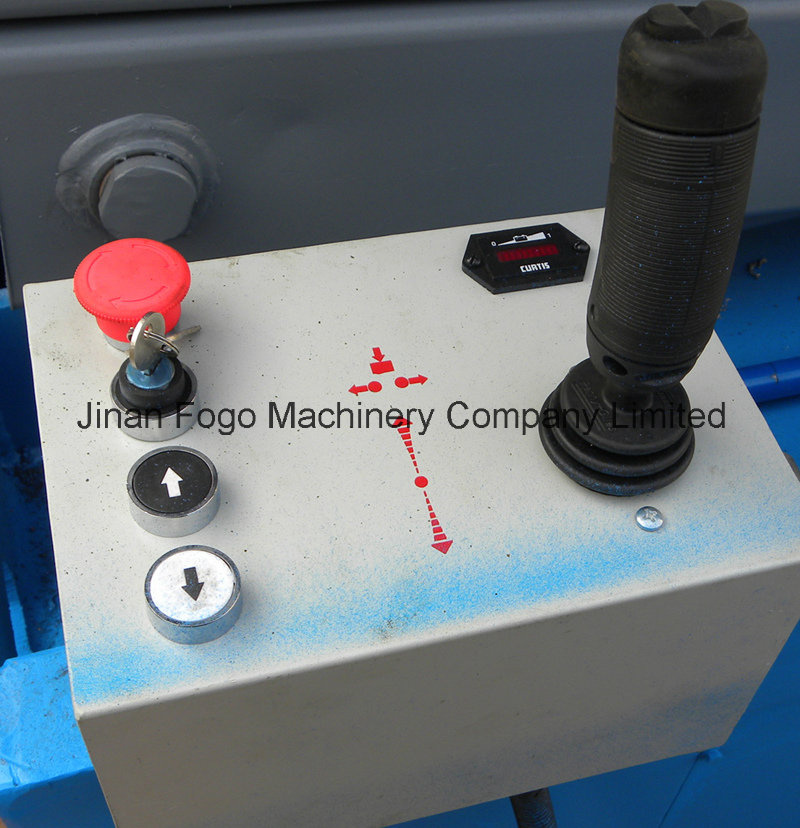

5. Control box: there are control box not only on the platform but also on the chassis, easy to control.

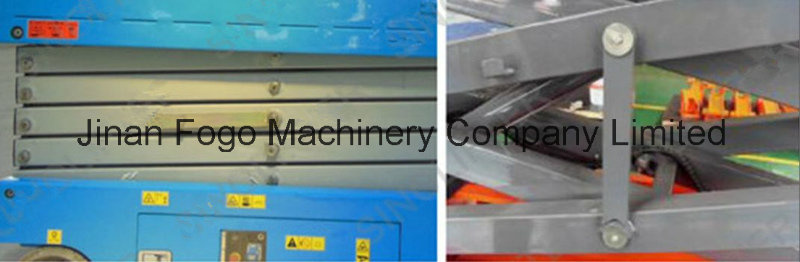

6. Safety bar: The safe bar helps to support the unit as a duplicate protection when the machine need some maintenances.
7. Battery with charger: Trojan brand, import from USA, better service than normal battery.
8. Hydraulic motor: The hydraulic motor support the 2-front wheel driving with oil inlet pipe and oil outlet pipe conveying oil.

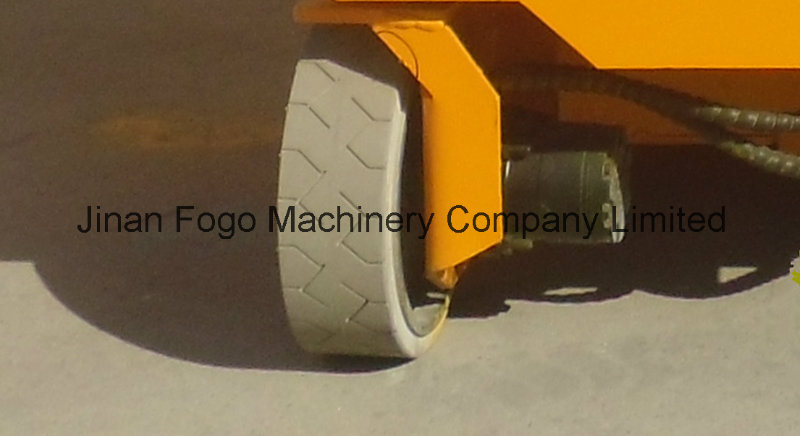

Tire: Non-marking tire help to prevent the damage to the floor and stuck by the impurities.
Packaging & Shipping

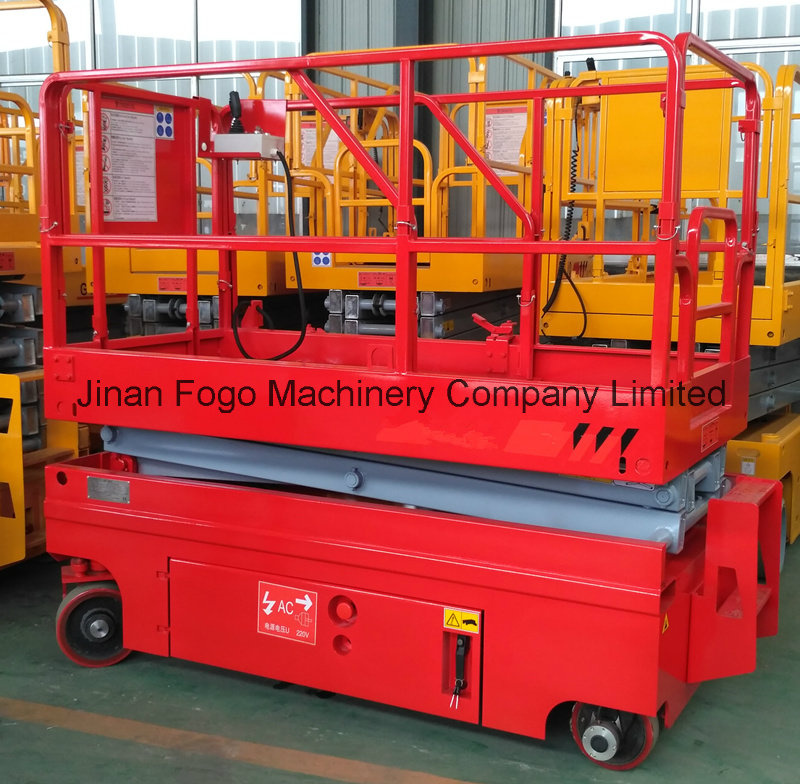

4. Product picture:
Jinan Fogo machinery Co., Ltd is a company which is professional in producing the hydraulic lift platform and handling equipment for logistics using and is also the biggest producer in making Aluminum Aerial Work LT, Cylinder hydraulic aerial work platform, Arm Lifter and dock levelers and is a member of China Association of Warehouses and Storage.
With excellent facilities, advanced techniques, full-scale analysis technique, tremendous technology, all of our products has passed the detection of Check station of China Special Equipment and Manufacture License of Special Equipment of People's Republic of China with the number TS2437071-2009. Our machine's burden has reached the maximum load: 10 tons.
Our company has got the 2000 Quality System Certification of ISO9001. Our product was awarded the first-class prize of Shandong Mechanical Designing Competition and its Quality and capability had been tested by using in several national project. We have got a reputation by selling our goods towards domestic market and overseas market such as: America, Canada, and German. Our products are compartmentalized to six BIG SERIES and FIFTY VARIETIES.
The management criterion is "Quality is the best, Users' demand is the highest, Employee moves fast, and the honesty is the first". Welcome the friends coming from all over the world!
