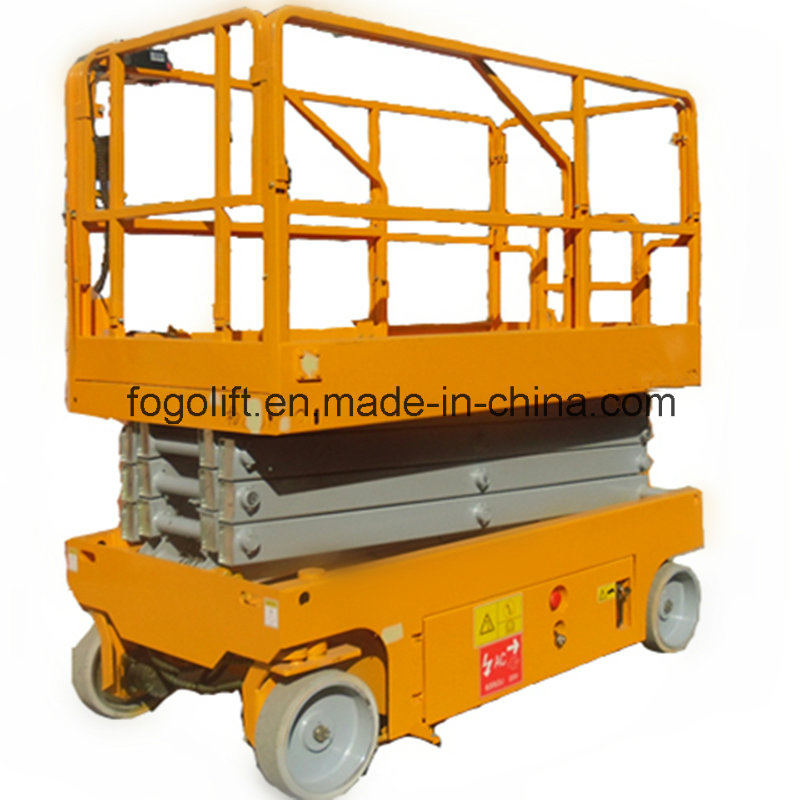

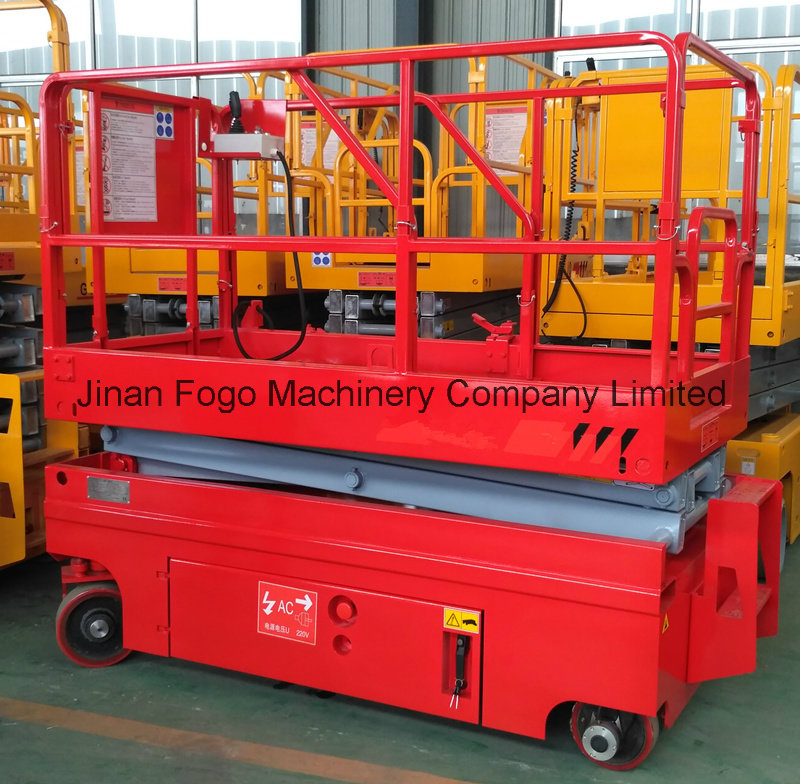

6m Self-Propelled Battery Power Working Platform Lift
| Price: |
US $ 6999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
SJYZ0.3-6 |
| Capacity: |
300kgs, 500kgs |
| Working Height: |
4-14meters |
| Power Unit: |
24V/3kw |
| Charger Volt: |
110V, 220V, 380V/50Hz, 60Hz |
| Forward Speed: |
Less Than 10km/H |
| Application: |
Warehouse Crane |
| Carrying Capacity: |
Light Level |
| Driven Type: |
AC |
| Running Mode: |
Moving |
| Feature: |
Insulating |
Product Description
6m self propelled scissor lift /aerial work platformProduct Description
1. Advantage:
-- you can control it on the platform and on the chassis, operate easily and freely.
-- extension platform, large working place.
-- Removable guardrail
-- 90 degree steering wheel can run in high and low speed.
2. Main parameter:| Model No. | SJYZ0.3-6 |
| Max. Platform Height | 6.15m |
| Max. working Height | 7.65m |
| Lift Rated Capacity | 230kg |
| Platform Size(A*B) | 1.79*0.75m |
| Ground Clearance | 60/21mm |
| Platform Extend Length | 0.9m |
| Max. Drive Speed(Platform Stowed) | 3.2km/h |
| Max. Drive Speed(Platform Elevated) | 0.8km/h |
| Min. Turning Radius | 1.6m |
| Grade-ability | 25% |
| Tyre | 0.305*0.1m |
| Lift motor | 24/3
v/kw |
| Battery | 4*6/230
v/Ah |
| Charger | 24/20-30
v/A |
| Overall Length-D | 1.89m |
| Overall Width -E | 0.76m |
| Overall Height -C | 2.4m |
| Min. Platform Height-G | 1.25m |
| Overall Net Weight | 1580kg |
3. Introduction:
1. The scissors lift tables storage battery as the power source, and makes low noise and no emission when working, so it can be used in indoor occasions such as workshops, warehouses, hotels, ect.
2. Larger working space: The platform can extend on one side, whic can enlarge the working space.

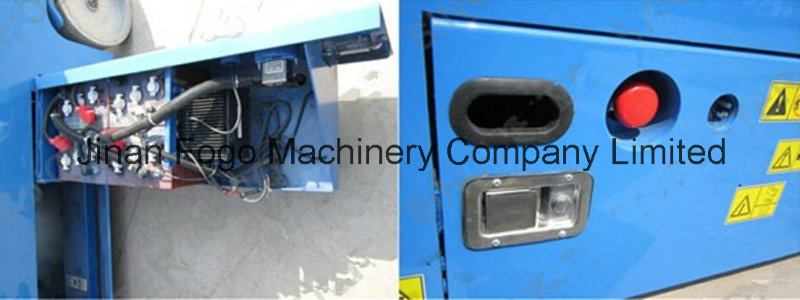

3. Swing-out battery box and power moduletrays allow easy access to engine componentsfor convenient service
4.Scissor platforms offer up to 25% grade ability when driving on slopes with safety protection.

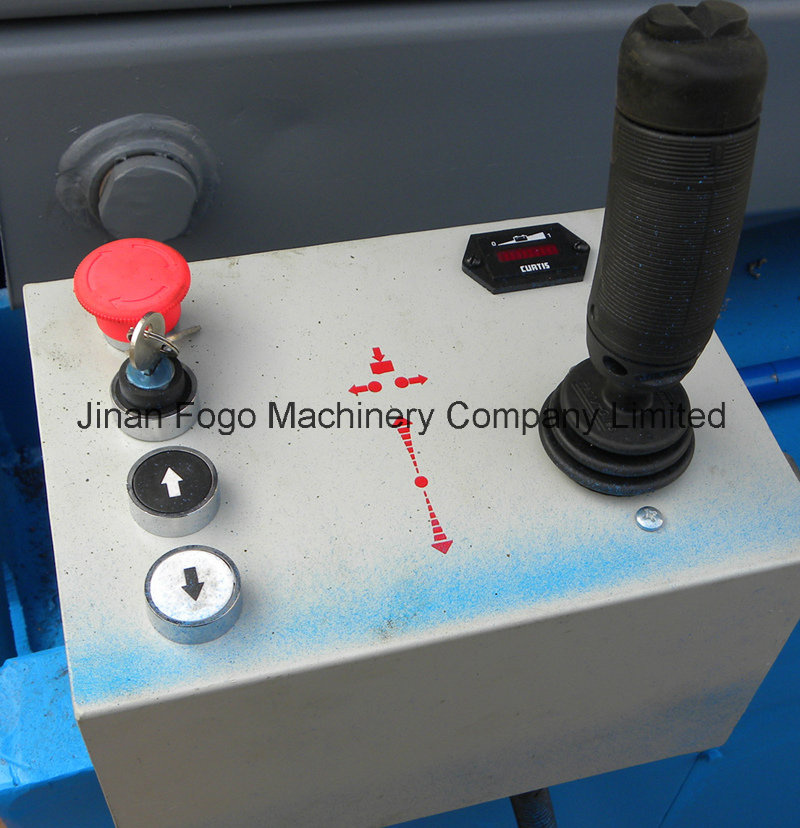

5. Control box: there are control box not only on the platform but also on the chassis, easy to control.
6. Safety bar: The safe bar helps to support the unit as a duplicate protection when the machine need some maintenances.
7. Battery with charger: Trojan brand, import from USA, better service than normal battery.
8. Hydraulic motor: The hydraulic motor support the 2-front wheel driving with oil inlet pipe and oil outlet pipe conveying oil.

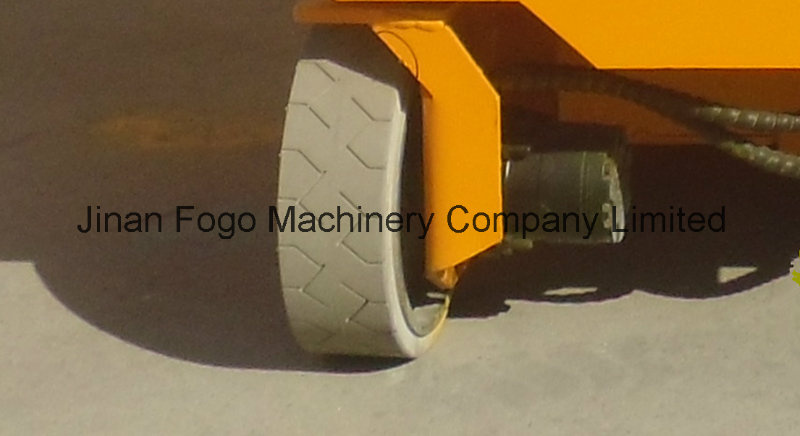

Tire: Non-marking tire help to prevent the damage to the floor and stuck by the impurities.
Packaging & Shipping

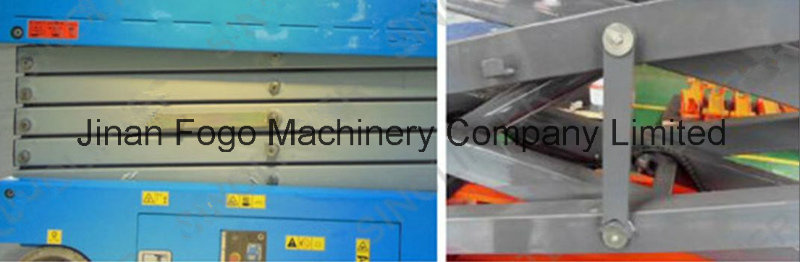

4. Product picture:
