| Prod Model: |
D2N series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity(Tons): |
160, 200, 250, 300, 400, 500, 600 |
| Type: |
General Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description

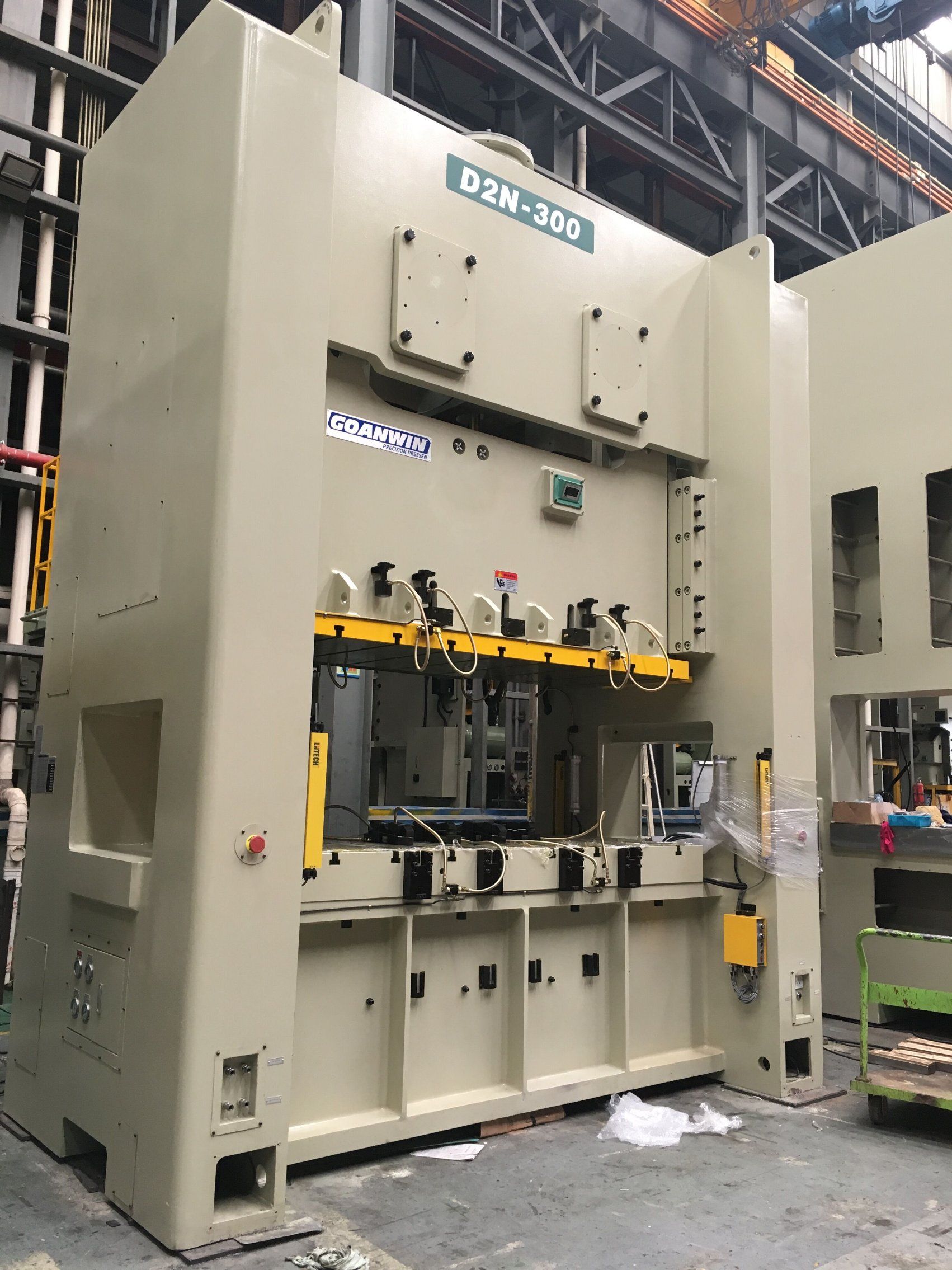

110-600 Ton Straight Side Double Crank Mechanical Power Press Stamping Machine Application:Generally suitable for the small, single engineering steel sheet and continuous mould parts blanking, punching, blending, molding, can be single mode, continuous mode, manipulator or add attachment transmission system operation.
Features:High rigidity press frame
Six-Point gibbings for slide guide way
Dry type clutch/brake
Highly responsive hydraulic over-load protector(H.O.L.P.)
Variable slide knock-out device
Increased pressure point center distance enhances off-center load capability
Precision: JIS first class

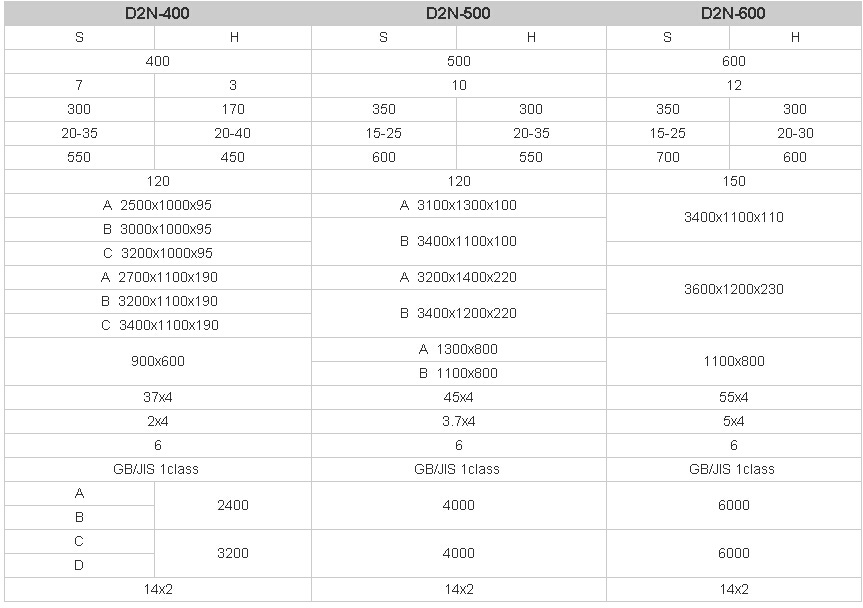

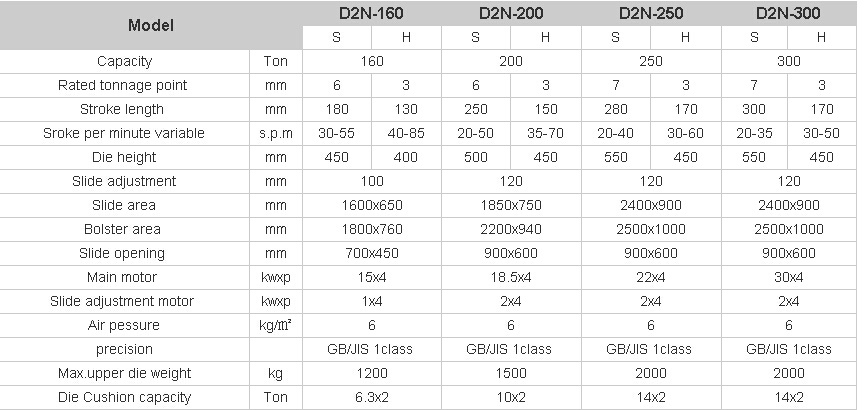

Parameters:
Standard accessories:Inverter
Touch pad
Preset counter
Electrical cam
Hydraulic over-load protectort
Silde adjust device
Die height indicatot
Balance device
Crank angle indicator
Electric stroke counter
Air source receptacle
Against over-run safety device
Misfeed detection consent
Power supply
Maintenance tool box
Operation Manual
Optional accessories:Electrical automatic lubrication system
pneumatic die cushion device
Foot switch
Quick die change device(die lifter, clamp and die arm sepjes)
Slide knock-out device
Die room light
Anti vibration press mount
Photo-electronic safety device
Feeder
Uncoiler
Leveler
Mechanism hand
Guaranty & Service1. Guaranty period
One year
2. Guaranty covers
Main parts of the machine, wearing parts not included
3. Parts delivery
Within 3working days by TNT
4. Technical support
Technical support via email or video, technicians available for overseas service with reasonable additional costs
5. Installation & commissioning
Seller can dispatch technicians to do installation & commissioning, technician costs will be on buyer's side
