110A 55kw Sanyu AC Drive for Fan Machine (SY8000-055G-4)

Name: 110A 55kw Sanyu AC Drive for Fan Machine (SY8000-055G-4)
Brand: tool-buy.com
SKU: 810569945
Availability: InStock
Rating: 4.9 (142 reviews)

Price:	US $ 60-7000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shanghai Sanyu Industry Co., Ltd.

Showroom Product Company Profile

Prod Model:	SY8000-055G-4
Product Name:	Frequency Inverter
Communication:	RS485 Modbus
Carrier Frequency:	1.0~10.0 kHz
Output Power:	55kw
Output Current:	110A
Size:	360280825 mm
Weight:	62kgs
Warranty:	1 Year
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	High Carrier Frequency PWM Control
Main Circuit Type:	Current
Brand:	Sanyu

Product Description

55kw SANYU AC drive for fan machine (SY8000-055G-4)

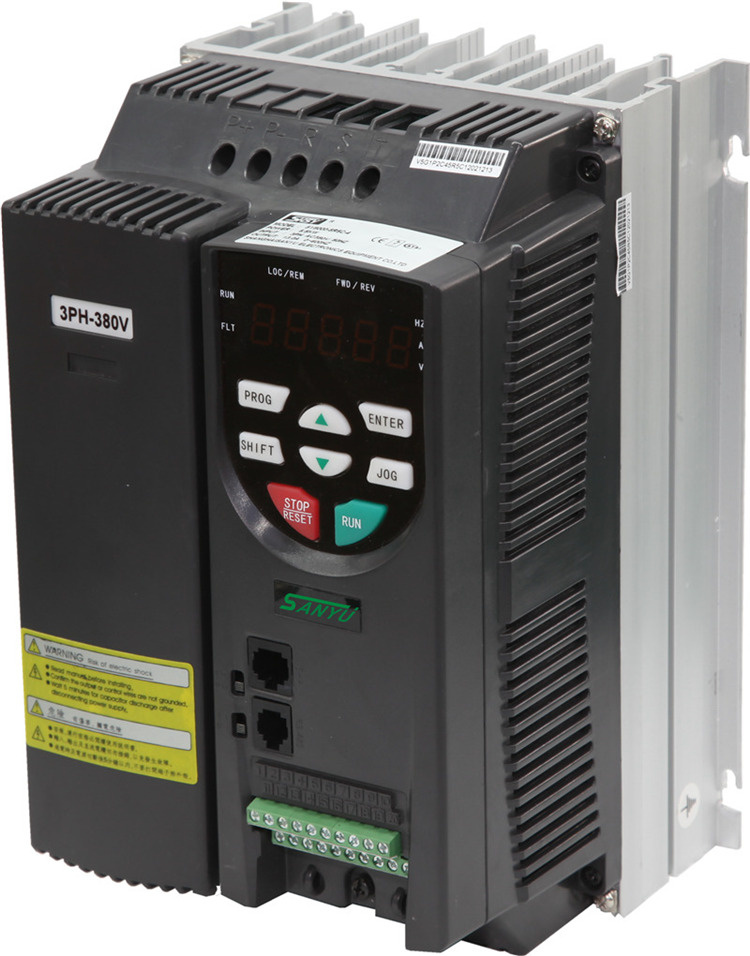

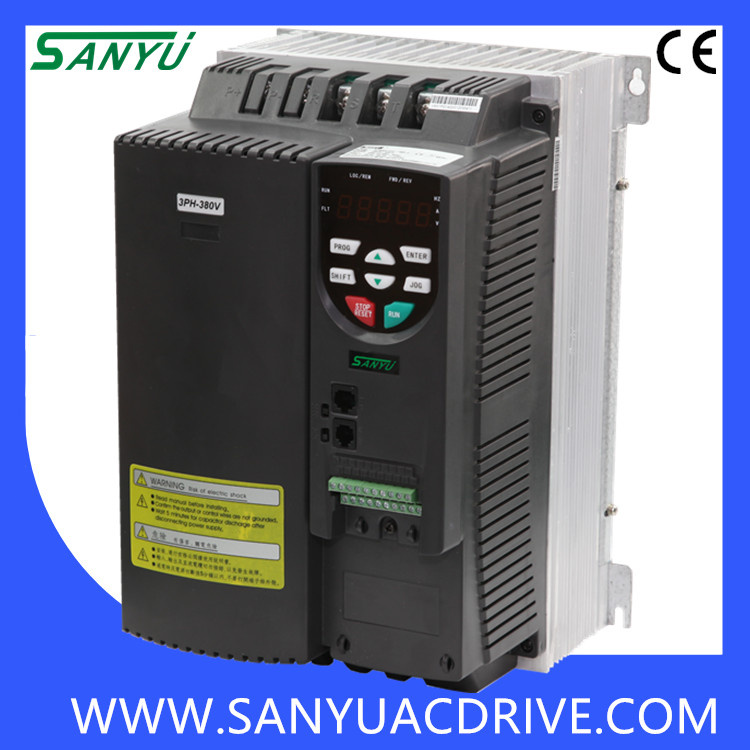

1. Product Show
SY8000 380V/3phase, Variable frequency inverter, AC inverter, frequency converter, VFD, VSD

2. Product description

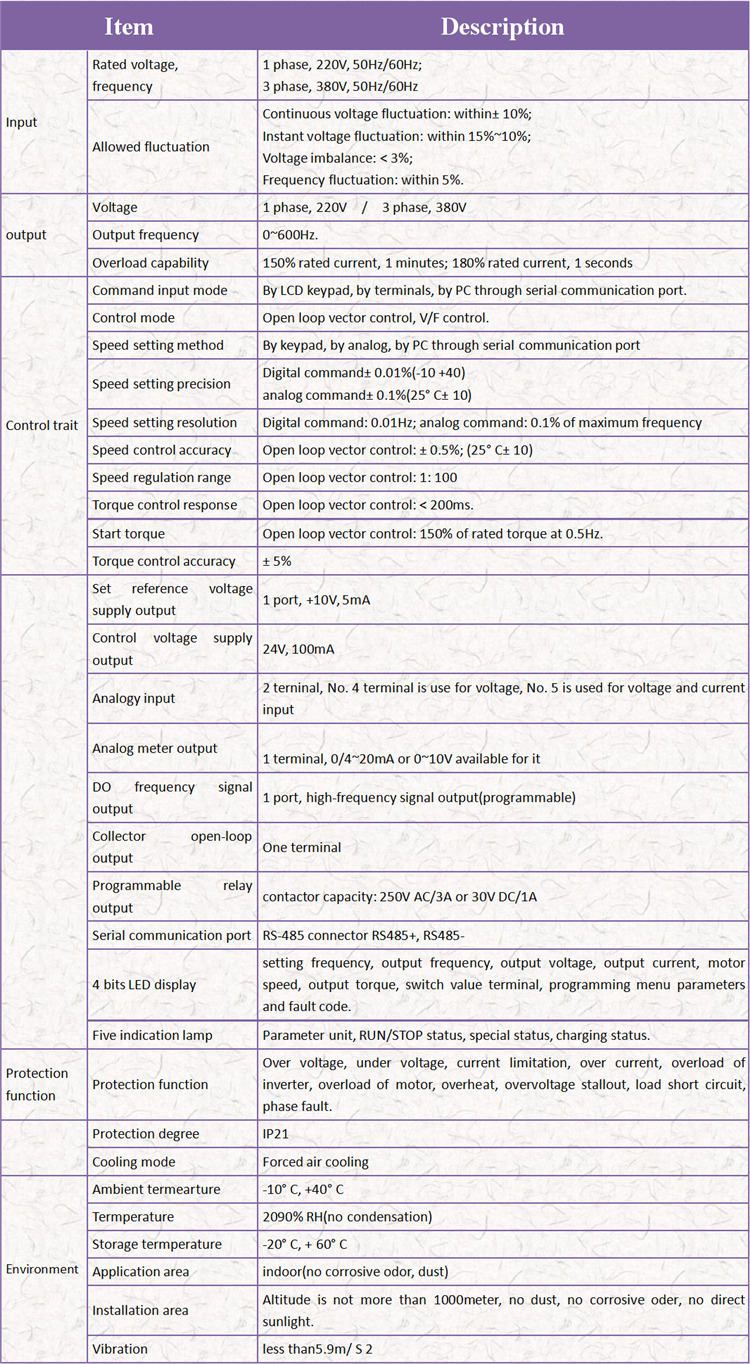

3. Product parameters

Model	Applicable motor (KW)	Rated input current (A)	Rated output current (A)	Dimension *(LWH mm)*	G.W. (KG)	Input voltage
SY8000-0R7G-4	0.75	3.4	2.5	100154173	1.8	380V±15% 3Phase
SY8000-1R5G-4	1.5	5.0	3.7	100154173	1.8
SY8000-2R2G-4	2.2	5.8	5	100171260	3.0
SY8000-004G/5R5P-4	4/5.5	10/15	9/13	100171260	3.0
SY8000-5R5G/7R5P-4	5.5/7.5	15/20	13/17	175171260	4.5
SY8000-7R5G/011P-4	7.5/11	20/26	17/25	175171260	4.5
SY8000-011G/015P-4	11/15	26/35	25/32	248175350	11
SY8000-015G/018P-4	15/18.5	35/38	32/37	248175350	11
SY8000-018G/022P-4	18.5/22	38/46	37/45	248175350	14
SY8000-022G/030P-4	22/30	46/62	45/60	248175350	14
SY8000-030G/037P-4	30/37	62/76	60/75	330265540	30
SY8000-037G/045P-4	37/45	76/90	75/90	330265540	30
SY8000-045G/055P-4	45/55	90/105	90/110	330265540	30
SY8000-055G/075P-4	55/75	105/140	110/150	360280825	62
SY8000-075G/090P-4	75/90	140/160	150/176	360280825	62
SY8000-090G/110P-4	90/110	160/210	176/210	3602901040	72
SY8000-110G/132P-4	110/132	210/240	210/253	3602901040	72
SY8000-132G/160P-4	132/160	240/290	253/300	3602901040	72
SY8000-160G/185P-4	160/185	290/330	300/340	5153201315	138
SY8000-185G/200P-4	185/200	330/370	340/380	5153201315	138
SY8000-200G/220P-4	200/220	370/410	380/420	5553651665	270
SY8000-220G/250P-4	220/250	410/460	420/470	5553651665	270
SY8000-250G/280P-4	250/280	460/500	470/520	5553651665	270
SY8000-280G/315P-4	280/315	500/580	520/600	6003651665	285
SY8000-315G/350P-4	315/350	580/620	600/640	6003651665	285
SY8000-350G/400P-4	350/400	620/670	640/690	6003651665	285
SY8000-0R4G-2	0.4	2	2.4	100154173	1.8	220V±15% 3Phase
SY8000-0R7G-2	0.75	5.0	4.5	100154173	1.8
SY8000-1R5G-2	1.5	7.7	7	100171260	3.0
SY8000-2R2G-2	2.2	11	10	100171260	3.0
SY8000-004G-2	4	17	16	100171260	4.5
SY8000-5R5G-2	5.5	21	20	248175350	11
SY8000-7R5G-2	7.5	31	30	248175350	11
SY8000-011G-2	11	43	42	248175350	14
SY8000-015G-2	15	56	55	248175350	14
SY8000-018G-2	18.5	71	70	330265540	30
SY8000-022G-2	22	81	80	330265540	30
SY8000-030G-2	30	112	110	360280825	62
SY8000-037G-2	37	132	130	360280825	62
SY8000-045G-2	45	163	160	3602901040	72

4. Application
Widely used in:
Metallurgy, Chemical, Petroleum, Textile, Electric power, Building materials, Coal, Plastics, Printing and Dyeing, Cable, Washing, Water supply, Heating, etc

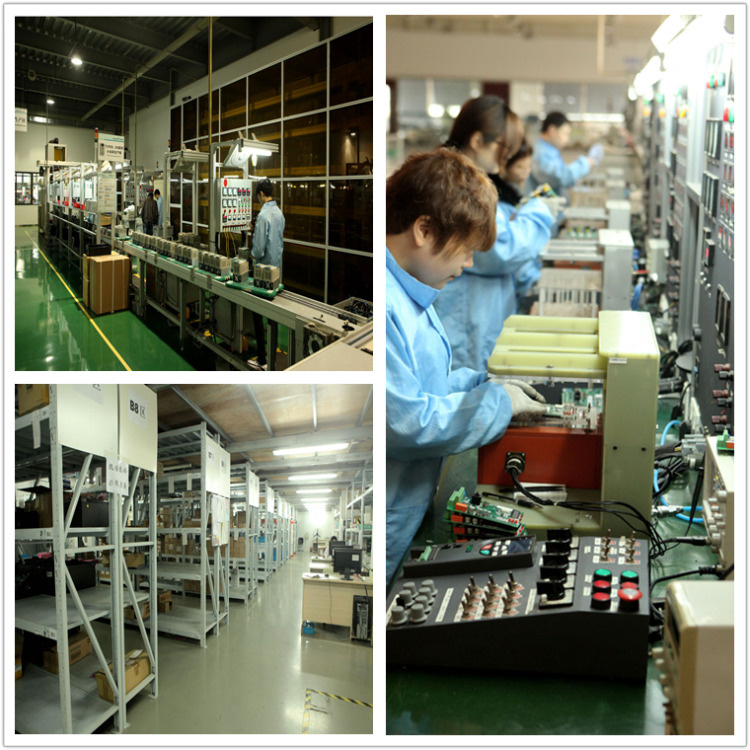

5. Factory show

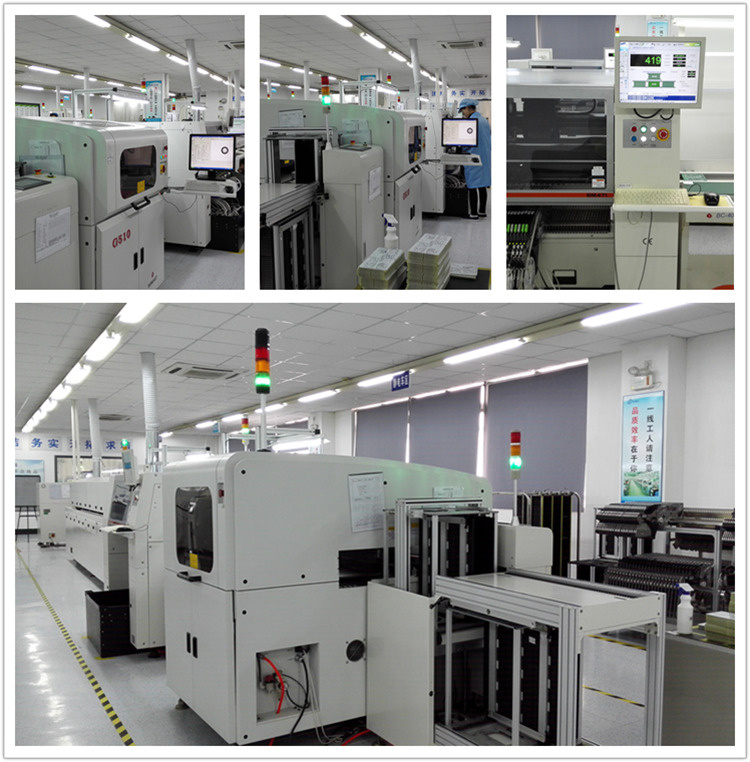

PCB processing plant

Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.

SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.

In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.

Let's make a bright future together!
