210A 110kw Sanyu AC Drive for Fan Machine (SY8000-110G-4)

210A 110kw Sanyu AC Drive for Fan Machine (SY8000-110G-4)
Price: US $ 60-7000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SY8000-110G-4
Product Name: Frequency Inverter
Communication: RS485 Modbus
Carrier Frequency: 1.0~10.0 kHz
Output Power: 110kw
Output Current: 210A
Size: 360*290*1040 mm
Weight: 72kgs
Warranty: 1 Year
Application: High Frequency Converter Transducer
Output Type: Triple
Principle Of Work: Vector Control Transducer
Switch Mode: High Carrier Frequency PWM Control
Main Circuit Type: Current
Brand: Sanyu

Product Description

110kw SANYU AC drive for fan machine (SY8000-110G-4)

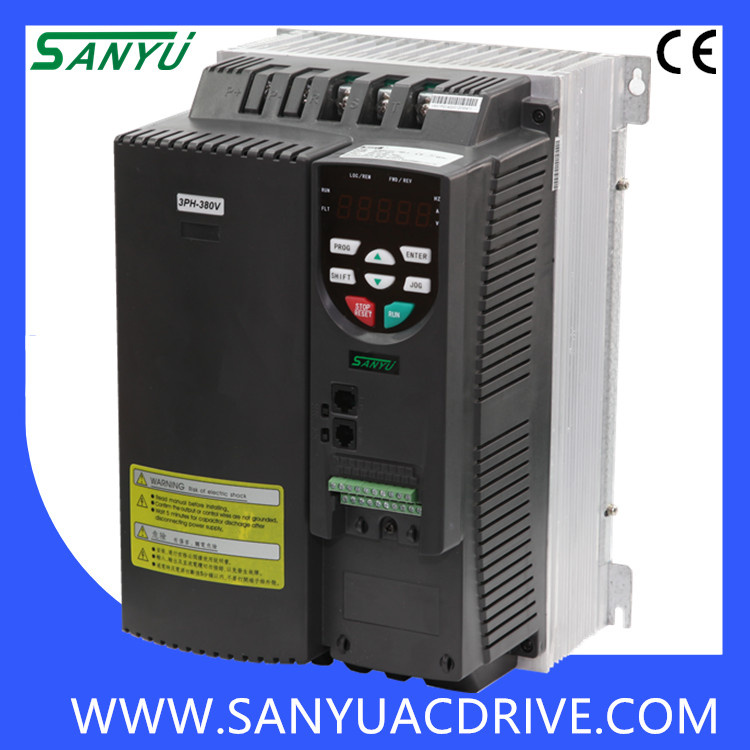

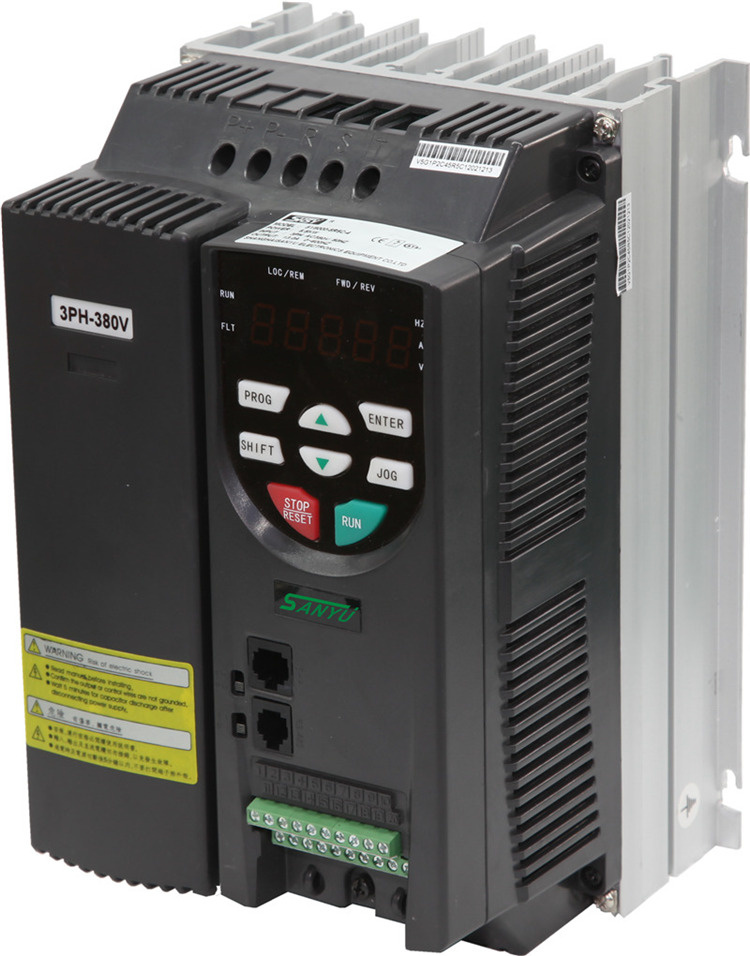

1. Product Show
SY8000 380V/3phase, Variable frequency inverter, AC inverter, frequency converter, VFD, VSD



2. Product description

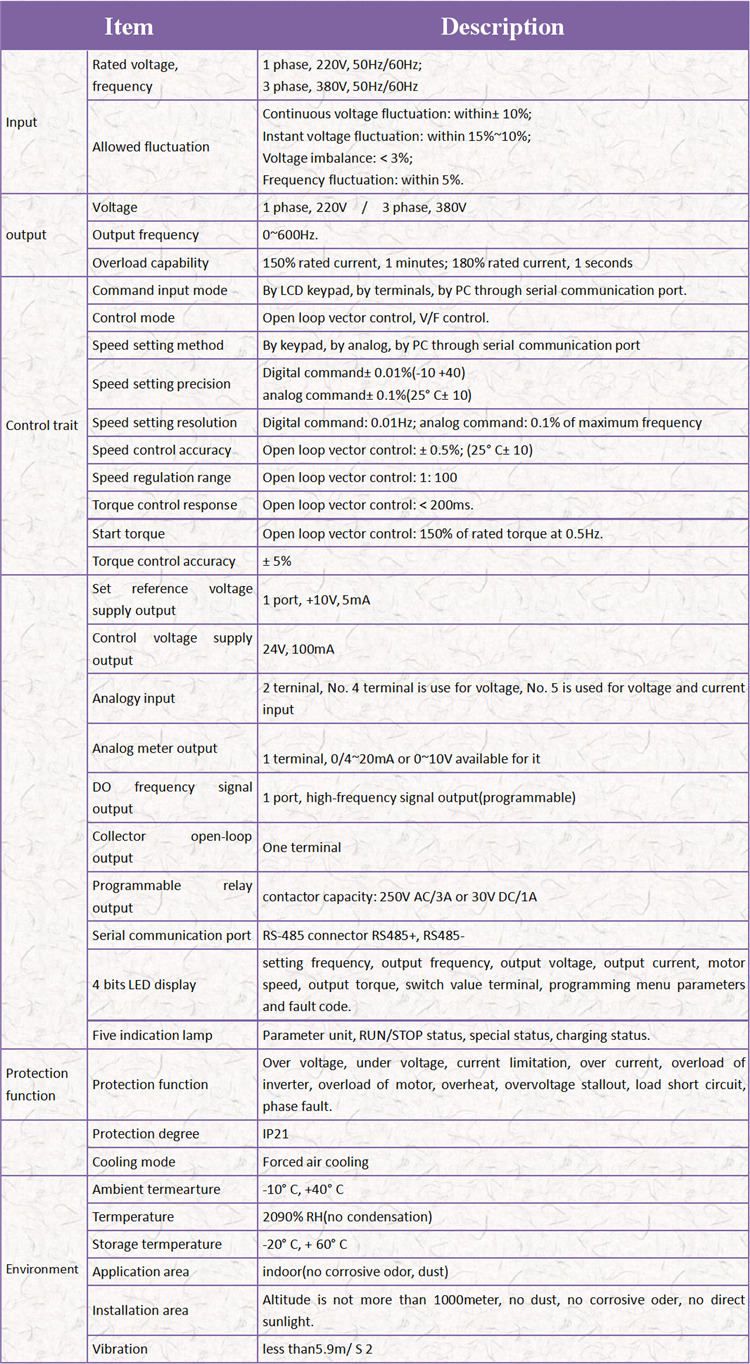

3. Product parameters
ModelApplicable motor
(KW)
Rated input current
(A)
Rated output current
(A)
Dimension
(L*W*H mm)
G.W.
(KG)
Input voltage
SY8000-0R7G-40.753.42.5100*154*1731.8380V±15%

3Phase
SY8000-1R5G-41.55.03.7100*154*1731.8
SY8000-2R2G-42.25.85100*171*2603.0
SY8000-004G/5R5P-44/5.510/159/13100*171*2603.0
SY8000-5R5G/7R5P-45.5/7.515/2013/17175*171*2604.5
SY8000-7R5G/011P-47.5/1120/2617/25175*171*2604.5
SY8000-011G/015P-411/1526/3525/32248*175*35011
SY8000-015G/018P-415/18.535/3832/37248*175*35011
SY8000-018G/022P-418.5/2238/4637/45248*175*35014
SY8000-022G/030P-422/3046/6245/60248*175*35014
SY8000-030G/037P-430/3762/7660/75330*265*54030
SY8000-037G/045P-437/4576/9075/90330*265*54030
SY8000-045G/055P-445/5590/10590/110330*265*54030
SY8000-055G/075P-455/75105/140110/150360*280*82562
SY8000-075G/090P-475/90140/160150/176360*280*82562
SY8000-090G/110P-490/110160/210176/210360*290*104072
SY8000-110G/132P-4110/132210/240210/253360*290*104072
SY8000-132G/160P-4132/160240/290253/300360*290*104072
SY8000-160G/185P-4160/185290/330300/340515*320*1315138
SY8000-185G/200P-4185/200330/370340/380515*320*1315138
SY8000-200G/220P-4200/220370/410380/420555*365*1665270
SY8000-220G/250P-4220/250410/460420/470555*365*1665270
SY8000-250G/280P-4250/280460/500470/520555*365*1665270
SY8000-280G/315P-4280/315500/580520/600600*365*1665285
SY8000-315G/350P-4315/350580/620600/640600*365*1665285
SY8000-350G/400P-4350/400620/670640/690600*365*1665285
SY8000-0R4G-20.422.4100*154*1731.8220V±15%

3Phase
SY8000-0R7G-20.755.04.5100*154*1731.8
SY8000-1R5G-21.57.77100*171*2603.0
SY8000-2R2G-22.21110100*171*2603.0
SY8000-004G-241716100*171*2604.5
SY8000-5R5G-25.52120248*175*35011
SY8000-7R5G-27.53130248*175*35011
SY8000-011G-2114342248*175*35014
SY8000-015G-2155655248*175*35014
SY8000-018G-218.57170330*265*54030
SY8000-022G-2228180330*265*54030
SY8000-030G-230112110360*280*82562
SY8000-037G-237132130360*280*82562
SY8000-045G-245163160360*290*104072





4. Application
Widely used in:
Metallurgy, Chemical, Petroleum, Textile, Electric power, Building materials, Coal, Plastics, Printing and Dyeing, Cable, Washing, Water supply, Heating, etc

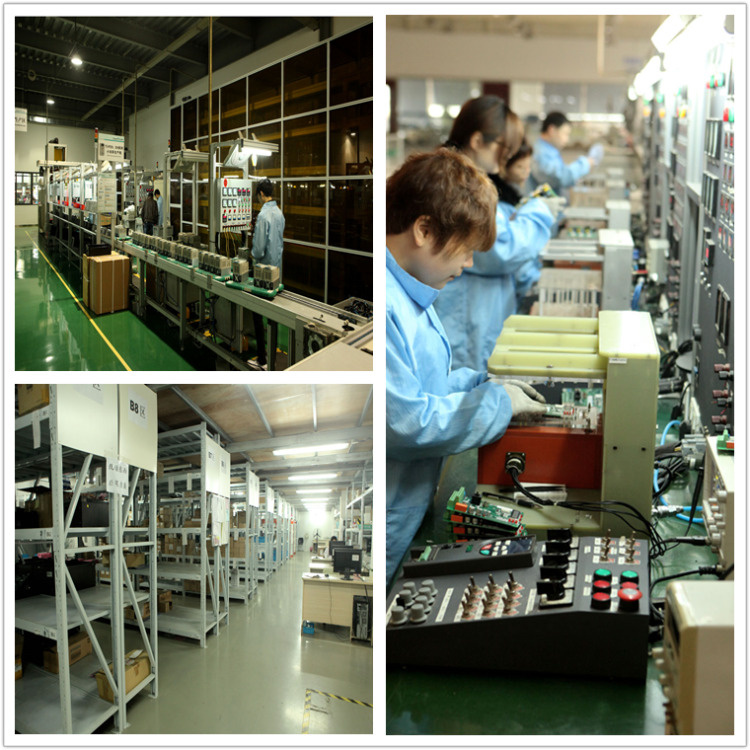

5. Factory show

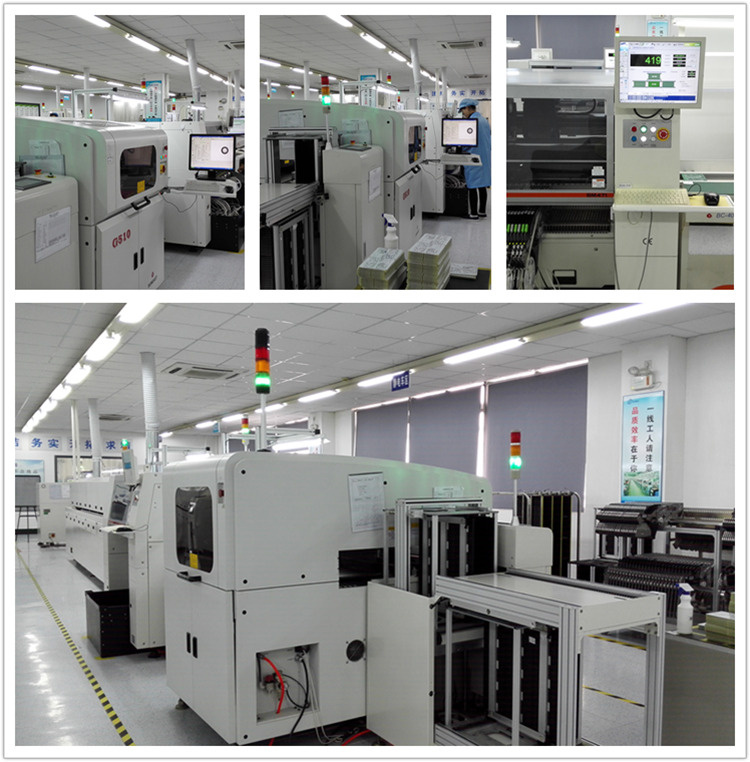

PCB processing plant
Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.

SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.

In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.

Let's make a bright future together!
