| Prod Model: |
6.2.2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Diameter: |
100-350mm |
| Technology: |
Sintered |
| Segment Type: |
Turbo |
| Inner Hole: |
16 /20 /22.23 /25.4 /50mm |
| Shape: |
Round |
| Kind: |
Diamond Saw Blade |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone and Concrete Cutting |
| Saw Blade External Diameter: |
105-350mm |
| Customized: |
Customized |
Product Description

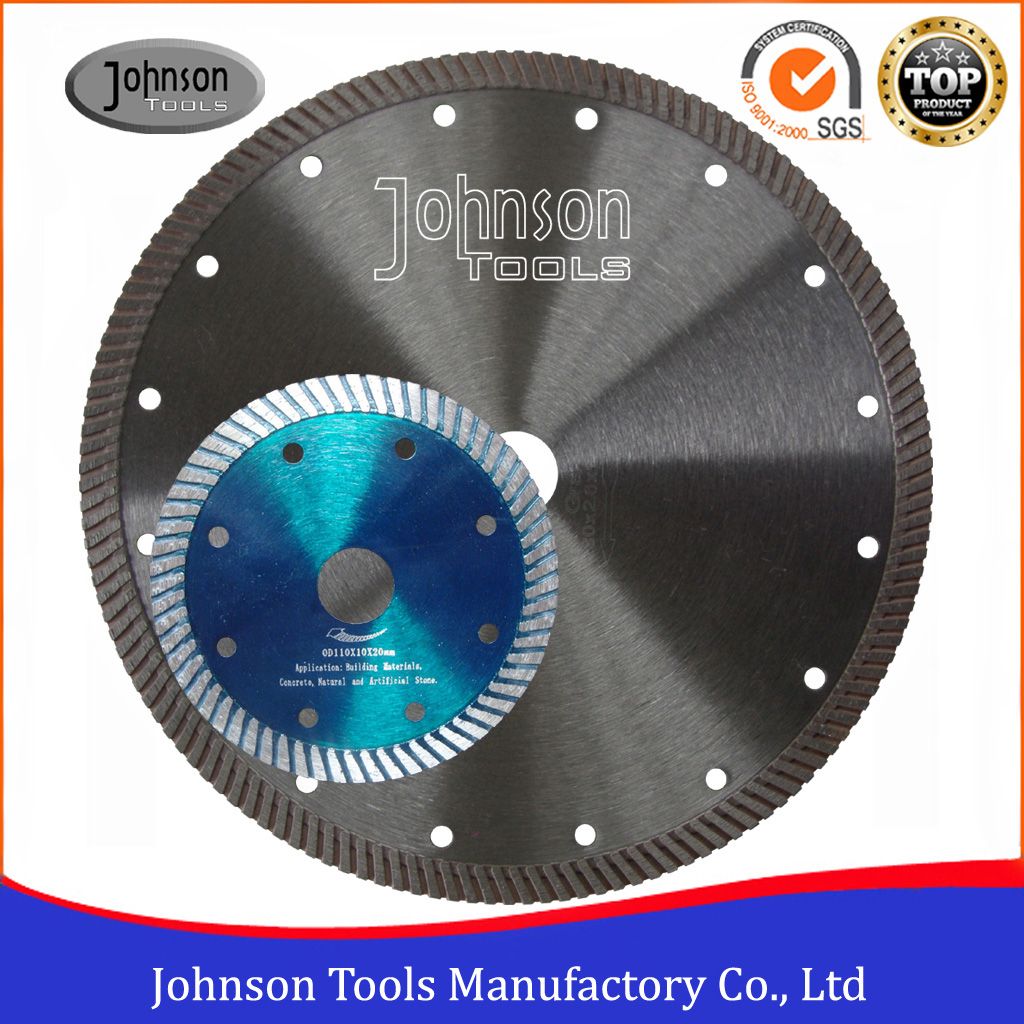

110mm-230mm Hot Press Sintered Turbo Saw Blade Granite Cutting Blade
Why choose us:
1.SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2.Well approved by our worldwide clients, export more than 70 countries.
3.Success formula for concrete saw blade
4.Quick Delivery time.
5.One-Day reply to your inquiry and question.
1.Description of 110mm-230mm Hot Press Sintered Turbo Saw Blade Granite Cutting Blade
Diamond turbo saw blade using a special design, especially for high-speed rotating motor, high efficiency, cut smoothly, fast cooling, exhaust cut better, safe to use, can not afford the tip, ensure the safety of workers, able to withstand uninterrupted high-speed cutting, dry cutting, wet cutting available, add water cutting better.
2. Features of 110mm-230mm Hot Press Sintered Turbo Saw Blade Granite Cutting Blade
1). For cutting all kinds of stone, ceramics, concrete, brick and asphalt pavement, a wide range usage.
2). Continuous turbo teeth, easy chip removal, the tip with a solid, not easy for segment dropping.
3). Powder alloy hot pressing, long service life, and the better.
4). for a variety of angle grinders
Outer diameter from 110mm to 230mm. Segment height and center hole can be done based on client's request.
a) Specification is complete and varied.
b) Can do with Flange M14 or 5/8"-11.
c) Good balance assures excellent grinding effect
d) Long lifespan and stable performance
e) Competitive price and superior quality
f) Excellent service
Application:
Manual cutting machine, grinder; suitable for manual, pneumatic cutter, grinder and other handheld devices, professional wet cutting each hardness grade granite, marble and other stone, all kinds of ceramics, artificial stone, concrete and other building materials. Since the saw blade for small and medium size, it is easy to use, cutting a smooth deformation, flexible usage; it is one of the most commonly used cutting diamond series.
3. Specification information of 110mm-230mm Hot Press Sintered Turbo Saw Blade Granite Cutting Blade
Details specification:
| Item | Inch | Diameter | Seg. Thickness | Segment Height | Teeth number | Inner hole |
| ST-110 | 4" | 110 | 2 | 10 | 64 | 20/16 |
| ST-115 | 4.5" | 115 | 2 | 10 | 64 | 20/16 |
| ST-125 | 5" | 125 | 2.2 | 10 | 86 | 20/22.23 |
| ST-180 | 7" | 180 | 2.4 | 10 | 102 | 20/22.23 |
| ST-230 | 9" | 230 | 2.6 | 10 | 144 | 20/22.23 |
4. Packing and shipping of 110mm-230mm Hot Press Sintered Turbo Saw Blade Granite Cutting Blade
According to the size, normally put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there are steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6.Our technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7.FAQ.
Q: How to place order to your company?
Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
After-Sale Service: Track the goods, learn the products' performance.
Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement
