| Prod Model: |
HXSAW115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: 105mm--350mm: |
Can Be Customized |
| Saw Blade External Diameter: |
105mm, 115mm, 125mm, 175mm |
Product Description
Specifications
Diamond tools:
1.30% faster Sharpness
2.30%-40% higher Cutting Life
3.Noise reduction by 30%
4.Save 20% Power Absorption

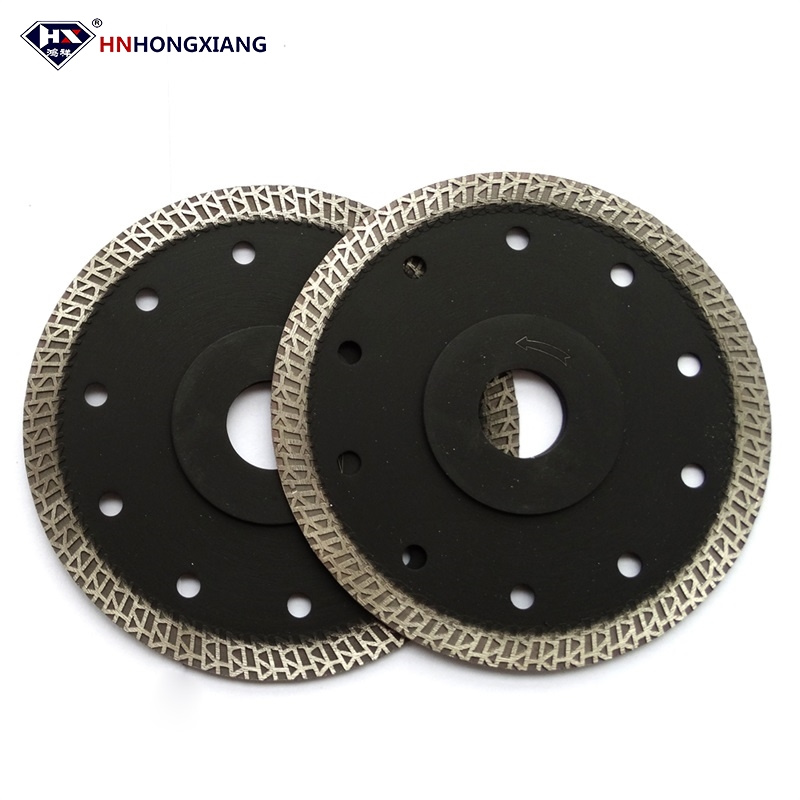

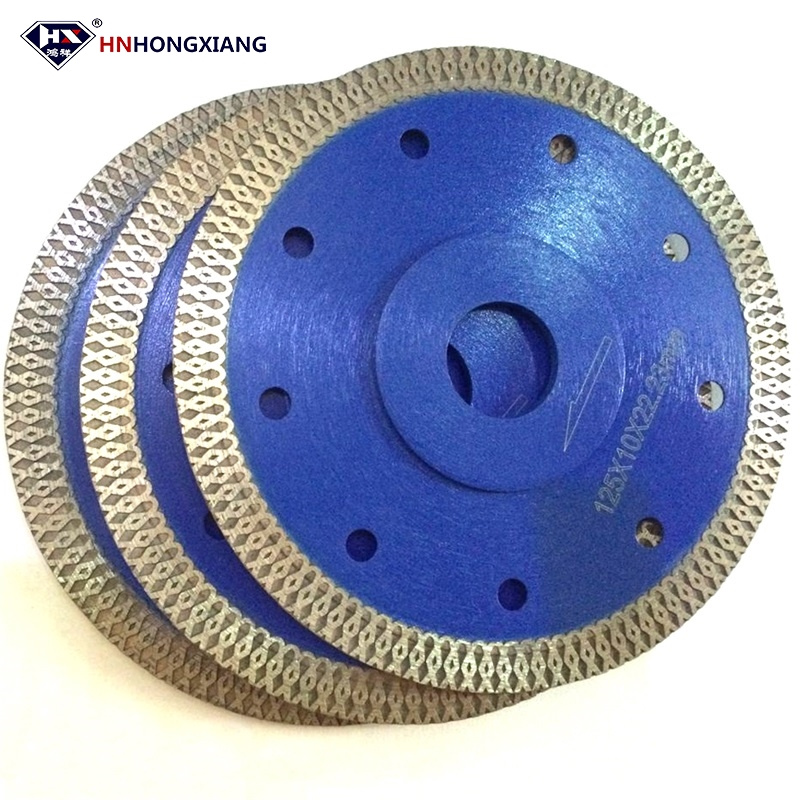

HOT PRESSED SUPER THIN TURBO BLADES
| Item No. | Diameter
(inch/mm) | Segment Thickness
(mm) | Segment Height
(mm) | Arbor
(mm) |
| TTB-115 | 4.5" / 115 | 1.2 | 8 | 22.2 |
| TTB-125 | 5" / 125 | 8 |
| Other specifications are available upon request. Please specify wet or dry use. |
Features:
Super thin turbo rim and soft band are especially designed for fast and smooth cutting.
Applications:
All kinds of ceramic tiles and porcelain.
Machinery:
Angle hand grinder, circular saw.
Other size of diamond tools:
115mm Diamond Turbo Saw Blade Dry Cut for Construction
Diamond saw blade for masonry
Designed for masonry, ceramic tiles, brick, marble wall, stone and other building materials.
Advantage
--- Fast cutting speed, high cutting efficiency
--- Long cutting life
--- Best diamond grits to choose
--- Mature production technology, low cost
--- Different grade to choose
--- Offer customized service
Size detailes
| diamond saw blade |
| Diameter | Body thickness | Work thickness | Height | Hole |
| 105 | 1.2 | 2 | 8 | 20 |
| 114 | 1 | 1.8 | 11 | 20 |
| 114 | 1.2 | 2 | 11 | 20 |
| 120 | 1.2-1.4 | 1.8-2 | 11 | 20 |
| 125 | 1.3-1.4 | 1.9-2.1 | 11 | 20 |
| 350 | Road cutting blade | 3.4 | 10/15 | 50 |
| 400 | 3.8 | 10/15 | 50 |
| 500 | 4 | 10/15 | 50 |
| Grit size:35/40-50/60 |
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.
Our products include,
Synthetic diamond
Diamond powder
Diamond saw blade
Diamond drill bit
Poly crystalline Diamond composite ( PDC )
PCD wire drawing dies
Diamond glass tools
Diamond polishing pad
Diamond cutting tools
Diamond grinding tools
Diamond wheels
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order
3. Advanced production equipment
4. Own design team, can help you custom the packaging
5. Own provincial engineering technology center
6. D&B and ISO9001 Certificates
We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
