| Price: | US $ 1.8-23.4/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | HZ-169 |
|---|---|
| Segment Material: | Diamond Powder, Cobalt, Metal |
| Working Condition: | Wet/Dry Cut |
| Segment Type & Shape: | Normal, Turbo; Sandwich, Groove, etc |
| Welding Method: | High Frequency Welding/Laser Weld |
| Perfromance Comparison: | Sharp Diamond Blade, Wearable Diamond Blade |
| Type: | Power Tool Parts |
| Outer Diamond: | 80mm-350mm |
| Inner/Bore Diamond: | 25.4mm,22.23mm,20mm,16mm |
| Segment Height: | 8/10/12mm |
| Thickness: | 1.7mm,1.8mm,2.0mm,2.2mm |

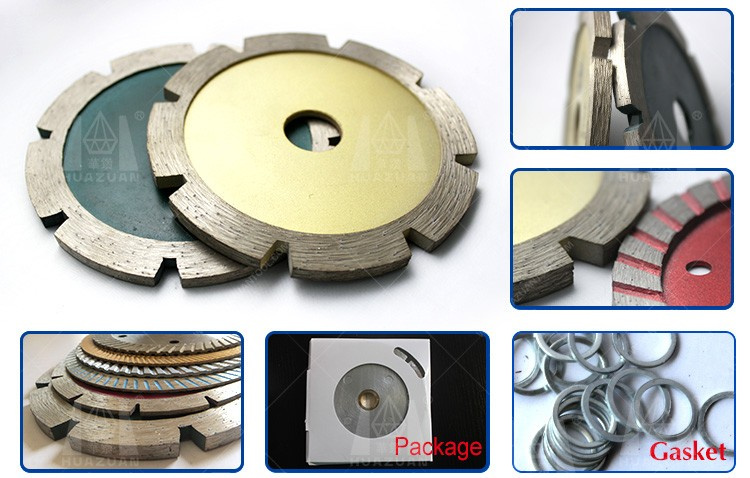

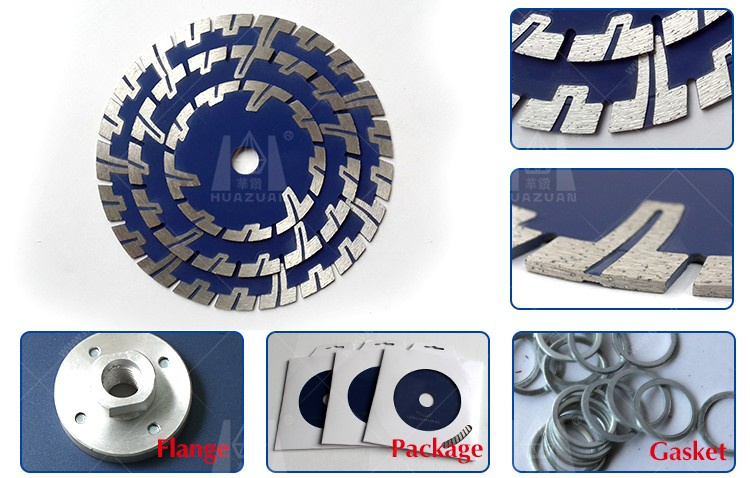

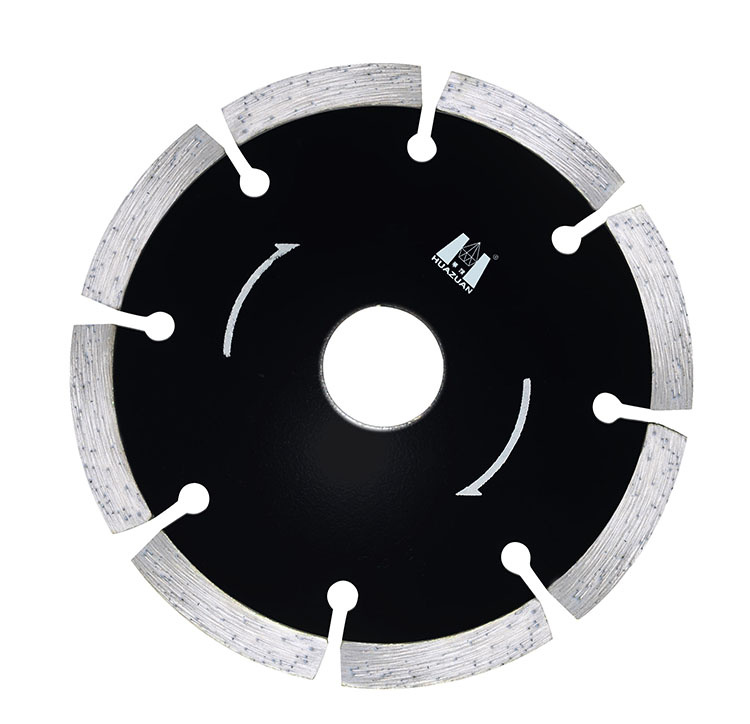

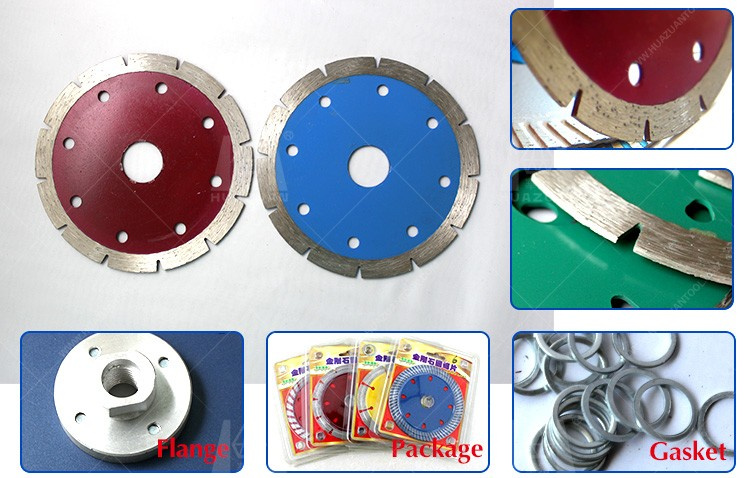

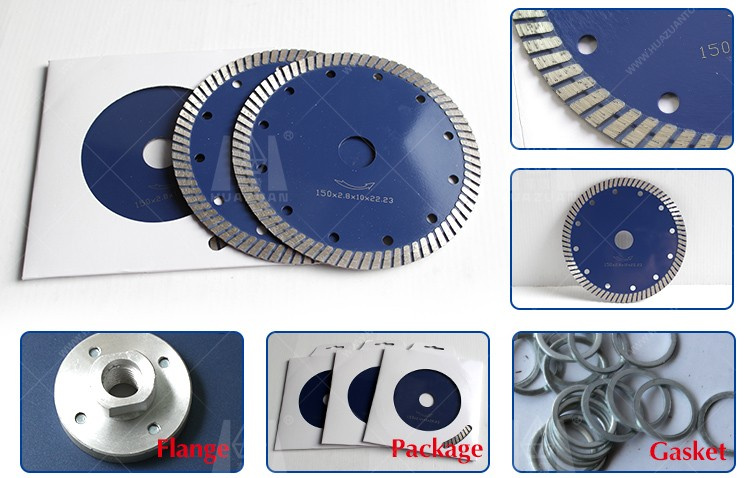

Product name | 115mm Hot Pressed Sintered Diamond Small Saw Blade/ Diamond Tool |
Brand: | Huazuan or OEM |
Specification:
| 1.Size:4"-9"(105mm-230mm) 2.Segment height:8/10/12mm 3.Inner hole:16mm/20mm/22.23mm/25.4mm
|
Features: |
The adjustment of process technology makes our blade safer,sharper and more universal. |
Application |
|
Machinery | Angle grinder,circular saw,masonry saw,table saw |
Technology | Cold pressing and hot pressing |
Quality Control |
1. Strict Raw material inspection 2. Professional formula 3. Production process control(PDCA+7S Principle) 4. Do some cutting testing to sure the using function 5. Products pass SGS inspection
|
Our advantage | 1.High sharpness |
MOQ | 20PCS for each size |
Delivery | Sample:7-12 working days after receiving payment. Big order depend |
Certification | ISO9001 and SGS product quality control |
Main market | Iran,India,American,Poland,Brazil,Germany,Egypt,Russia etc. |
Diameter | Bore | Segment | Segment | |
mm | inch | Size(mm/inch) | Thickness(mm) | Height(mm) |
105 | 4" | 20/0.787" | 1.8 | 8/10/12 |
110 | 4.3" | 20/0.787" | 1.8 | 8/10/12 |
115 | 4.5" | 22.23/0.875" | 1.8 | 8/10/12 |
125 | 5" | 22.23/0.875" | 2.0 | 8/10/12 |
150 | 6" | 22.23/0.875" | 2.2 | 8/10/12 |
180 | 7" | 22.23/0.875" | 2.4 | 8/10/12 |
200 | 8" | 22.23/0.875" | 2.4 | 8/10/12 |
230 | 9" | 22.23/0.875" | 2.6 | 8/10/12 |
250 | 10" | 22.23/0.875" | 2.8 | 8/10/12 |
| Other specifications are available upon request. |
Attention when use:
1. Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools.
2. Do not use any saw blade that has been deformed for being pressed of crashed.
3. When operating, operator must wear safety helmet, safety footwear and goggles,
protective glove,additionally, if necessary operator must use earplug, mask and so on.
4. Electric tools shall have protective cover.
