| Prod Model: |
KL-DC-214567 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Tdp002z |
| .Battery Type: |
Lithium-Ion Battery |
| Battery Capacity: |
48V 8ah; 48V 10ah; 36V 10ah |
| Running Distance: |
45-60KM |
| Brake: |
Front V-brake / Rear Drum Brake |
| Voltage Of Battery: |
24V |
| Power: |
200-250W |
| Maximum Loading Capacity: |
75-120kg |
| Wheel Hub: |
Lightweight Alloy Hubs |
| Charging Time: |
<6h |
| Part: |
Battery |
Product Description

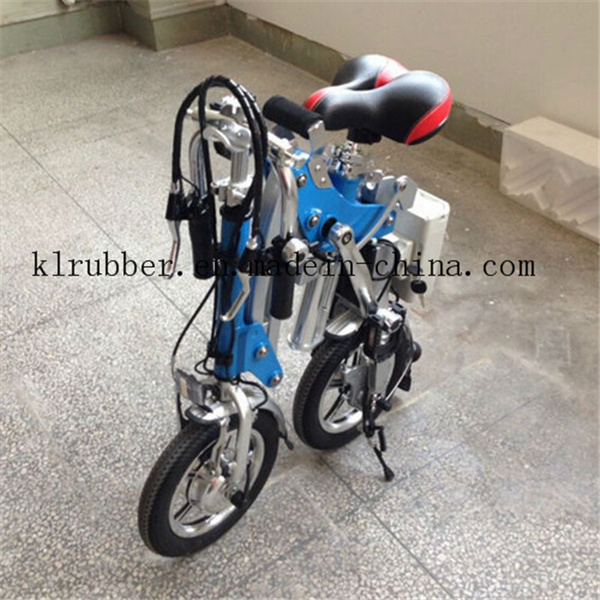

12'' Folding Electric Bike with Lithium Battery
1. Highlights:
A. New Vertical sytle folding/foldable system: Easy, quick, portable
B. Green transportation, good for environment, save energy, eco-friendly
C. Save ride: Signal lamp, bell, disc brake
D. Key-locked lithium battery
E. Aluminum alloy frame, DURABLE
F. 40 Miles charging capacity takes you to where you want
G. Adjustable seat and handbar suitable for every one
2. Package:
A) M-Bike
B) M-Bike Large Carrying Bag
C) Manual Instruction (in English &/or Mandarin)
D) A set of tools (3 Allen Keys & 2 Wrenches)
E) lithium batterY
F) charger
G) inflator pump
| 1. 12'' Mini Electric bicycle fig. | 2. Li-ion Battery fig. |
| Mini Size : L*W*H | 1255*490*1090mm | Type: | Li-ion Battery |
| Folding Size : L*W*H | 640*280*810mm |
| N.W :( KG ) | 16Kg | Battery Content Capacity ( Ah ) : (optional) | 6.75Ah/9Ah
|
| Max Speed : Km/h | 20 ~ 23Km/h |
| Battery Once Full Charge Range: | By net E-power: 30-40km , With Pedal assistant riding:50-60km | Nominal Voltage(v): | 36V |
| F/R wheel center distance | 980mm | Once Full Recharge Needing Time(h): | 3-5h |
| Max. Loading: | <180Kg |
| 3. DC Motor fig. | 4. E-controller set fig. |
| Type: | DC Brushless with gear | Bottom-voltage limited protection index(V): | 28.5 ± 1V |
| Output Rating(W): | 180W/200W |
| Rating Rotating Speed(r/min): | 235 r/min | E-current limiting protection index(A): | 11 ± 1.5A |
| Rating Voltage (V) | 36V | Riding Power Resource Type: | Riding by li-ion battery power, or with pedal assistant |
| Output Rating Torque: | 6 N.m | Climbing Capacity: | ≤ 7 ° |
