| Prod Model: |
KL-A015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Hydraulic Rubber Hose |
| Size: |
1/4-5inch |
| Standards: |
SAE / Bin / GB |
| Length: |
1-100m |
| Material: |
Natural Rubber |
| Capability: |
Water Rubber Hose |
| Color: |
Black |
Product Description
High Pressure Spiral Hydraulic Rubber Hose Kl-A015Specifications
High Pressure Rubber Hose
1. ISO 9001 Certificate
2. Large stocks Timely delivery
3. Professional
4. Good after-sale service
SAE 100 R9 High Pressure Rubber Hose
With wire braided, this kind of hydraulic rubber hoses are mainly used in mine and oilfield exploitation, Suitable for the construction, lifting transport, forging metallurgy, mining equipment, ships, Injection molding machinery, agricultural machinery, machine tools, as well as various industrial sectors Mechanization and automation of hydraulic transmission system in a certain pressure and temperature Of the oil (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricants) liquid, water based liquid (such as emulsion, the oil water emulsion, water), such as gas and liquid transmission used.

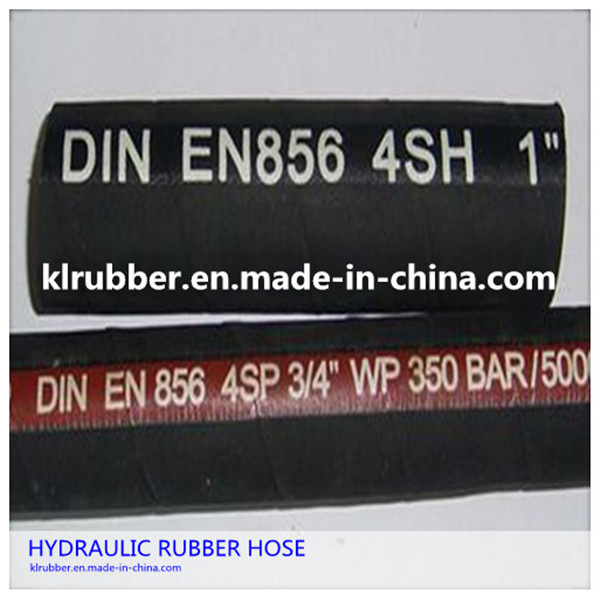

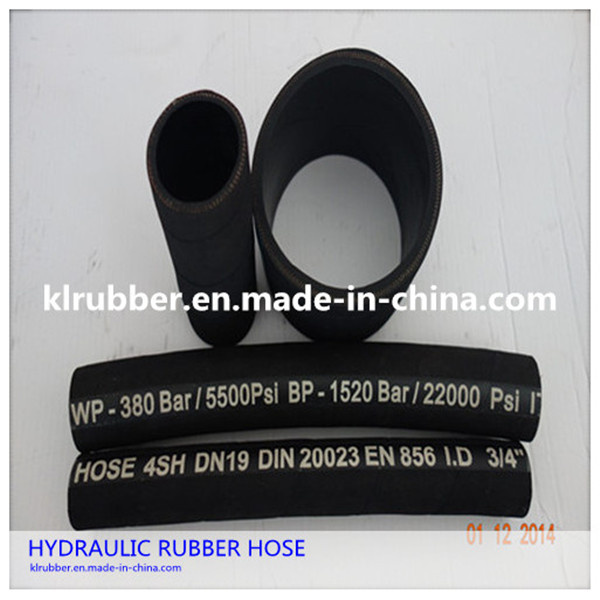

DIN-4SH Winding hose
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral layers ( 4 W/S )
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40 ° C to +100 ° C

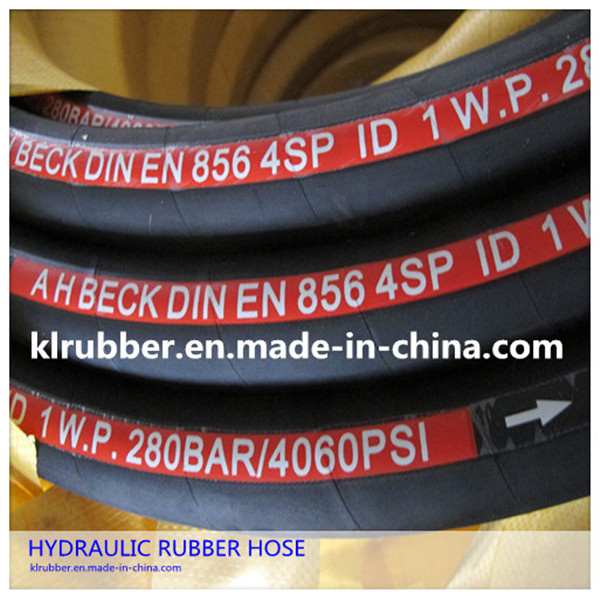

DIN-4SP Winding hose
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire layers ( 4 W/S )
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40 ° C to +100 ° C
| Hose Size | Reinforcement Diameter
mm | | Working Pressure | Burst Pressure | Min.Bend Radius
mm | Weight Kg/m |
| Ply*Innerdiameter*Pressure | MPA | Psi | MPa | Psi |
| 4sp-6-100 | 14.4±0.8 | | 100 | 14490 | 210 | 30492 | 130 | 0.65 |
| 4sp-8-80 | 16.4±0.8 | | 80 | 11592 | 210 | 30492 | 145 | 0.85 |
| 4sp-10-70 | 19.2±0.8 | | 70 | 10143 | 210 | 30492 | 160 | 1.03 |
| 4sp-13-60 | 22.2±0.8 | | 60 | 8694 | 180 | 26082 | 410 | 1.21 |
| 4sp-16-55 | 26±0.8 | | 55 | 7970 | 165 | 23909 | 260 | 1.72 |
| 4sp-19-46 | 30±0.8 | | 46 | 6665 | 140 | 20286 | 280 | 2.08 |
| 2sp-19-28 | 27±0.8 | | 28 | 4057 | 84 | 12172 | 280 | 1.32 |
| 4sp-22-40 | 33±0.8 | | 40 | 5796 | 120 | 17388 | 320 | 2.39 |
| 4sp-25-35 | 36±0.8 | | 35 | 5072 | 112 | 16229 | 360 | 2.51 |
| 2sp-25-21 | 33±0.8 | | 21 | 3043 | 64 | 9274 | 360 | 1.64 |
| 4sp-32-32 | 44±0.8 | | 32 | 4667 | 96 | 13910 | 460 | 3.12 |
| 2sp-32-20 | 41±0.8 | | 20 | 2898 | 60 | 8694 | 460 | 2.14 |
| 4sp-38-25 | 50.8±1 | | 25 | 3623 | 75 | 10868 | 560 | 4.31 |
| 4sp-45-23 | 57.8±1 | | 23 | 3333 | 69 | 9998 | 650 | 4.87 |
| 4sp-51-20 | 63.8±1 | | 20 | 2898 | 60 | 8694 | 720 | 5.40 |
| 2sp-51-14 | 60.8±1 | | 14 | 2039 | 52 | 7535 | 720 | 3.42 |
