12 Inch Building Water Supply PE Pipe

Product Name:	PE Pipe
Name:	HDPE Plastic Pipe
Certification:	Ce ISO SGS
Feature:	Corrosion Resistant,Non-Toxic, Lightweig
Connection:	Socket Fusion, Hot Melting, Flanged Joint
Thickness:	2mm-90.2mm
Standard:	ISO9001:2008
Material:	PE
Hardness:	Hard Tube
Type:	Thermoplastic Pipe
Color:	Color
Hollow:	Hollow
Shape:	Round
Usage:	Agricultural Irrigation Pipe

Product Description

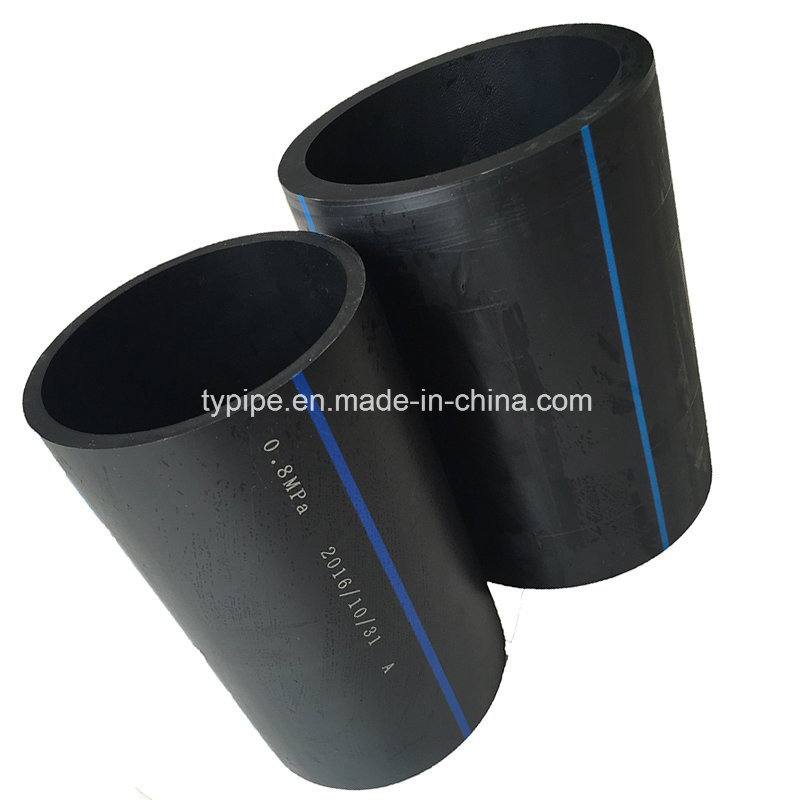

                 12 Inch Building Water Supply Pe Pipe
PE Pipe Feature
1.Nontoxic
 PE pipe material nontoxic, tasteless,it belongs to green building materials, never scaling, which can effectively improve the water quality.
2.Corrosion resistance
 High resistance to attack from various types of chemicals. No electron chemical corrosion.
3.No Leakage
 PE pipe is connected in the ways of butt fusion, socket fusion and electron   fusion and the
 strength of joint point is higher than tube itself .
4.higher flow capacity
The Smooth inner wall is easy for pipeline transportation .Under the same condition
delivery capacity can be increased by 30%.
5.Convenient for construction and installation
PE pipe could be installed in a variety of trenchless ways, so it is very convenient for
construction and installation.
6.Lower system and maintenance costs
PE pipe is not only convenient to transport and install, but also  reduce the worker's
labor intensity and improve work efficiency.
7.Longevity
50 years under pressure use.
8. Recycled and Environment-friendly
Product Description
HDPE water supply pipe use PE100 or PE80  as raw materials, processing good flexibility,
corrosion resistance, excellent impact resistance and other characteristics, pipe and fittings
can be employed melt socket connection,  Butt and fused connection,to insure the pipe
system safety and reliability as well as low construction cost.
 1) Material:PE100/PE80  2) Standard:GB/T9001-2000  3) Certification:ISO9001:2008
4) Package: as customer 's requirement   5) Connection:Butt fusion,socket joint ,electric connect
6) Color:black with blue stripe   7) Pressure rating:1.6Mpa,1.25Mpa,1.0Mpa,0.8Mpa,0.6Mpa
Specification

DN(mm)	thickness(mm)
	PN0.6	PN0.8	PN1.0	PN1.25	PN1.6
	SDR26	SDR21	SDR17	SDR13.6	SDR11
32	-	-	-	-	3.0
40	-	-	-	-	3.7
50	-	-	-	-	4.6
63	-	-	-	4.7	5.8
75	-	-	4.5	5.6	6.8
90	-	4.3	5.4	6.7	8.2
110	4.2	5.3	6.6	8.1	10
125	4.8	6.0	7.4	9.2	11.4
140	5.4	6.7	8.3	10.3	12.7
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15.0	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30.0	37.4	46.3	57.2
710	27.2	33.9	42.1	52.2	-
800	30.6	38.1	47.4	58.8	-
900	34.4	42.9	53.3	-	-
1000	38.2	47.7	59.3	-	-
1200	45.9	57.2	70.6	-	-

HDPE Pipe Application:
1.Urban tap water pipe network system
Large diameter PE pipe, health non-toxic, not fouling, more suitable for urban water supply main conduit and buried tube, safety, hygiene, convenient construction.
2.Replaceable cement tubes, iron pipe and steel tube
Used for old nets renovation project, don't need large area excavation, low cost, can be widely used in old town of pipe network reconstruction.
3.Industrial materials duct
Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and paper making, metallurgical and other industrial raw material conveying pipe.
4.Landscaping water supply network
Landscaping need lots of water pipe, PE pipe toughness and low cost, make it become the best choice.
5.Sewage discharge pipes
PE pipe have unique corrosion resistance, can be used in industrial waste water, sewage discharged pipe,low costs and maintenance costs .
6.Ore, mud transfers
PE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.
7. Agricultural irrigation pipe
PE pipe inside sleek, great flow, cross road construction, good impact resistance, it is the ideal tool for agricultural irrigation.
packaging and shipment

Packaging Details:
standard exported packing for HDPE pipe
Delivery Detail:
Shipped in 15 days after payment
company advantage
1. Professional :
We have rich experience in produce pipe and pipe fitting for many years, we are first class manufacture in China
2. Best Price :
Give our customer most favorable price while providing the highest quality product.
3. Best Service :
Engaged in exporting for many years, we will give the perfect solution for any feedback from our customer.
We can do not only for the above, Integrity is the foundation of our principle, cooperate with us will  make you satisfied.

Company Information
Shandong Tengyuan Building Materials Technology Co., LTD has two companies below: Shandong Teng yuan Plastic Co., LTD and Shandong Federal Plastic Co., LTD, is a high-tech enterprise specializing in producing PE pipe . We have five major production bases in Shandong, Hebei, Liaoning, Gansu and Hunan where enjoys superior geographical environment and convenient traffic.
We are one of the largest PE pipes and pipe-fittings production bases, and is also one of the few large-scale production and processing enterprises in China.We have 38 international advanced computer-controlled PE pipe production lines for all kinds ranging from 20mm to 1800mm. Our products are well received by foreign companies,we have exported them to over 30 countries and areas,such as Chile,Argentina,the Czech Republic,Russia,the United Arab Emirates,Iran,Sudan,Turkmenistan and so on.
We have always been adhering to the management policy of "Quality first ,Reputation supreme,Creditable service" and adhering to treating"Creating value for customers"as our corporate tenet,We zealously welcome each domestic and foreign merchant to come to our company for inspection and guidance.Sticking to "First-class quality,First-class reputation and First-class service",we will build up sincere cooperation with all friends from all walks of life to create a prosperous future with you hand in hand!
FAQ
Q: What the Raw material ?
A: We only use 100% first raw material.
Q: What is your MOQ?
A: As customer's request.
Q: why choose us?
A: We are a professional pipe fitting factory, we have competitive price an faster delivery , and we also have the best quality.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us all information which you want, or tell us which kind of products you want? will contact you immediately, or we could recommend style to you.
Q: Can you put your Design and logo on product?
A: Yes, we have professional design service team, we can make any sample as your design, and also can put your logo on products.
Q: What's the payment term?
A: We can accept for L/C, T/T. Any other payment as your request.
Q: Still have a lot of questions?
A: Please feel free to contact with me ,welcome.

contact If you want to know more information about our products, Welcome to contact us in anytime and also can search for our website. welcome to our factory! Thank you! Sales : James Gong Tel:0086 15866417969
