Large Diameter PE Pipe for Water Supply/ Water Supply Pipe

Large Diameter PE Pipe for Water Supply/ Water Supply Pipe
Price: US $ 1/Meter
Min Order: 180/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: DN20-1600
Material: PE
Hardness: Hard Tube
Type: Thermoplastic Pipe
Color: Color
Hollow: Hollow
Shape: Round
Usage: Corrugated Pipe

Product Description

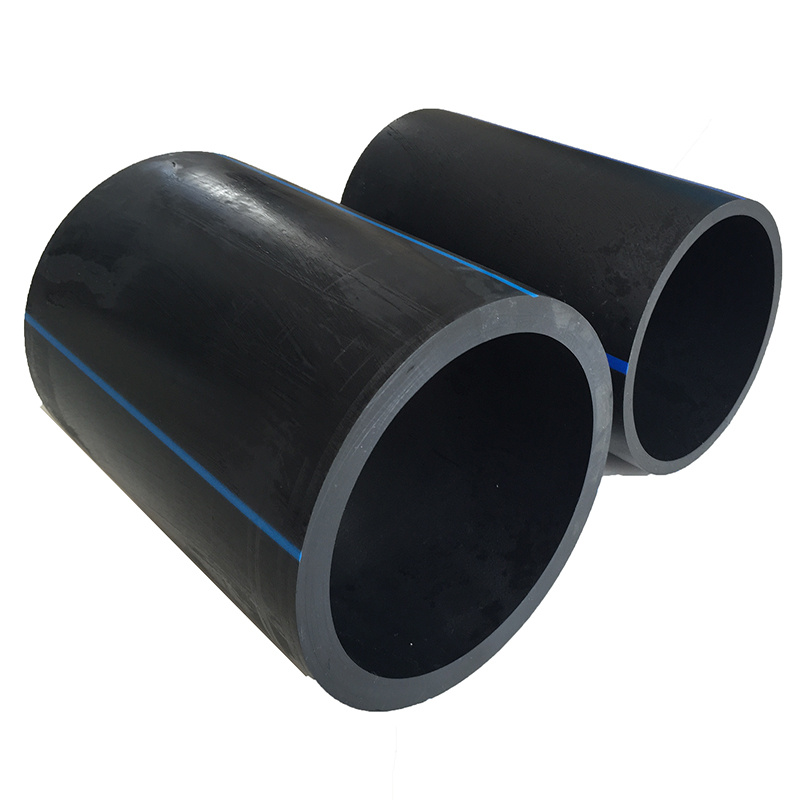

Large Diameter PE Pipe for Water Supply/ Water Supply Pipe
HDPE water supply pipe use PE100 or PE80  as raw materials, processing good flexibility,
corrosion resistance, excellent impact resistance and other characteristics, pipe and fittings
can be employed melt socket connection,  Butt and fused connection,to insure the pipe
system safety and reliability as well as low construction cost.


1) Material:PE100/PE80  2) Standard:GB/T9001-2000  3) Certification:ISO9001:2008
4) Package:Nuded packing      5) Connection:Butt fusion,socket joint ,electric connect
6) Color:black with blue stripe   7) Pressure rating:1.6Mpa,1.25Mpa,1.0Mpa,0.8Mpa,0.6Mpa


Products Specifications:
PE Pipe for Water Supply(PE100)
Nominal outside diameter dn(mm)Nominal wall thickness(mm)
PN0.6PN0.8PN1.0PN1.25PN1.6
SDR26SDR21SDR17SDR13.6SDR11
20----2.3
25---2.3 2.3
32--2.3 2.4 3.0
40-2.3 2.4 3.0 3.7
502.3 2.4 3.0 3.7 4.6
632.4 3.0 3.8 4.7 5.8
752.9 3.6 4.5 5.6 6.8
903.5 4.3 5.4 6.7 8.2
1104.2 5.3 6.6 8.1 10.0
1254.8 6.0 7.4 9.2 11.4
1405.4 6.7 8.3 10.3 12.7
1606.2 7.7 9.5 11.8 14.6
1806.9 8.6 10.7 13.3 16.4
2007.7 9.6 11.9 14.7 18.2
2258.6 10.8 13.4 16.6 20.5
2509.6 11.9 14.8 18.4 22.7
28010.7 13.4 16.6 20.6 25.4
31512.1 15.0 18.7 23.2 28.6
35513.6 16.9 21.1 26.1 32.2
40015.3 19.1 23.7 29.4 36.3
45017.2 21.5 26.7 33.1 40.9
50019.1 23.9 29.7 36.8 45.4
56021.4 26.7 33.2 41.2 50.8
63024.1 30.0 37.4 46.3 57.2
71027.2 33.9 42.1 52.2 63.6
80030.6 38.1 47.4 58.8 72.7
90034.4 42.9 53.3 66.2 81.8
100038.2 47.7 59.3 73.5 -
120046.2 57.1 70.6 --


Product Certification:


Other Products:

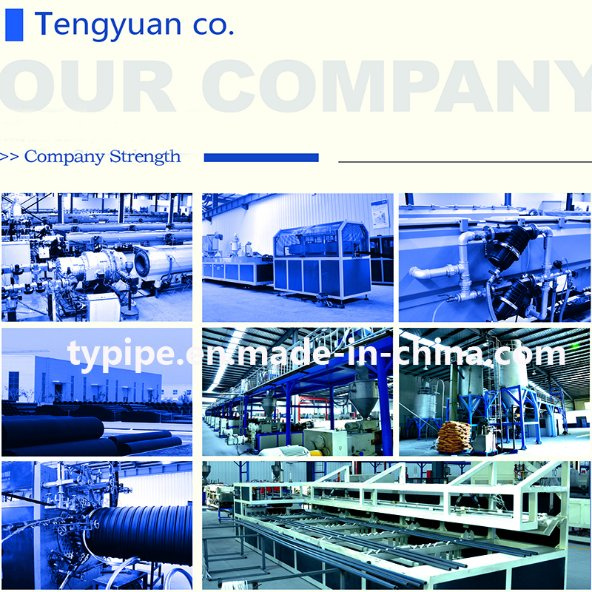

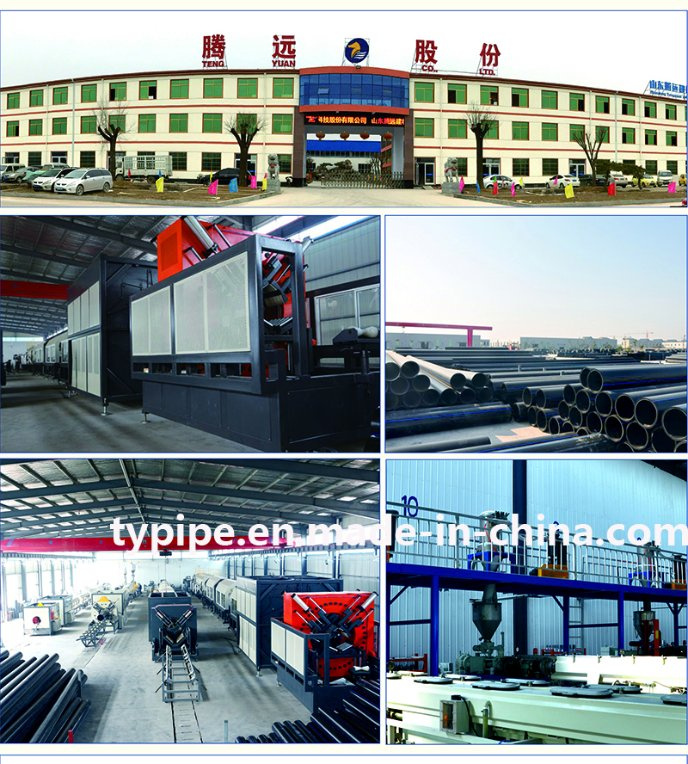

Our Company:



Shandong Tengyuan Plastic Co., Ltd. is a high-tech enterprise specializing in producing PE water-supply pipes, PE gas pipelines, flame-retardant & antistatic PE mine pipes, PE pipes for Ground Source Heat Pump, PE siphon drainage pipes, PERT floor heating pipes, and the matching pipe fittings for PE water-supply pipes, PE gas pipelines, PE flame-retardant & antistatic mine pipes and PE ground source heat pump pipes, PE anticorrosive sprayed steel flanges, PE ball valves, PERT floor heating pipe fittings, PE siphon drainage pipe fittings and other products.
