| Prod Model: |
LYGJ0370 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Lygj0370 |
| Rated Power: |
150W |
| Operatingvoltage: |
DC12V |
| Operation Current: |
13A |
| Fuse(a): |
15A |
| Loading Capacity: |
3t |
| Lift Range(Mm): |
135-360mm |
| N.W/G.W(Kgs): |
3.6kgs/4kgs |
| Power Cable(M): |
3.5m |
| Packing Size(Cm): |
32*15*17.8cm |
| Type: |
Hydraulic Jack |
| Structure: |
Hydraulic Jack |
| Power Source: |
Hydraulic |
Product Description

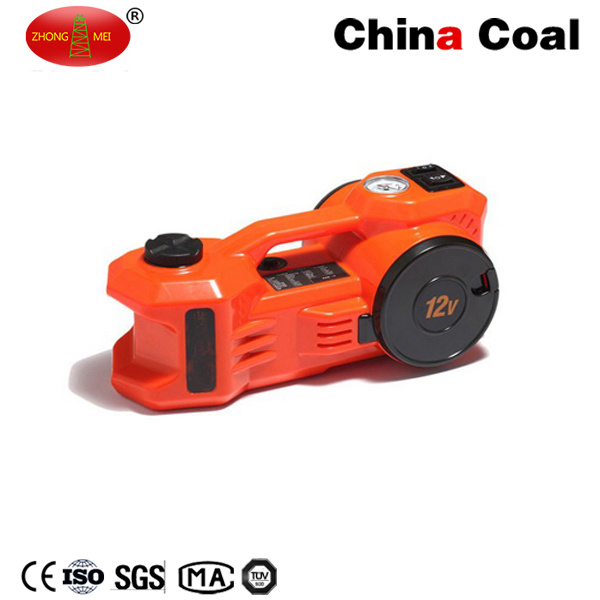

Introduction of 12 Volt Electric Power Hydraulic Car Jack
| Use: | Car Jack | Type: | Electric Jack | Capacity (Load): | 1-10T |
| Max Height: | 360mm | Min Height: | 135mm | Certification: | CE,ISO9001,UL,ANSI2009 |
| Place of Origin: | China (Mainland) | Brand Name: | chinacoal | Model Number: | LYGJ0370 |
| Warranty: | 1 Years | Rated Power: | 150W | N.W: | 3.6KGS |
| G.W: | 4KGS | loading capacity: | 3T | Operating Current: | 13A |
| fuse(A): | fuse(A) | | | | |
Parameter of 12 Volt Electric Power Hydraulic Car Jack
| Item | LYGJ0370 | LYGJ0370+ | LYGJA370 | LYGJA370+ | LYGIP01 | LYGTZ01 | LYGTZ01+ | LYGEW01 |
| | electric hydraulic jack(single use) | electric hydraulic jack (single use) | Multi-function electric hydraulic jack(2 in 1 jack+inflate) | Multi-function electric hydraulic jack(2 in 1 jack+inflate) | inflator pump | Multi-function electric hydraulic jack(jack+inflate+wrench)include LYGJA370,LYGEW01 | Multi-function electric hydraulic jack(jack+inflate+wrench)include LYGJA370+,LYGEW01 | Electric impact wrench (17-19mm,21-23mm) |
| Rated power | 150W | | 100W |
| operatingvoltage | DC12V | DC12V | DC12V | DC12V | DC12V | DC12V | DC12V | DC12V |
| operation current | 13A | 13A | 13A | 13A | 10A | 13A | 13A | 13A |
| fuse(A) | 15A | 15A | 15A | 15A | 15A | 15A | 15A | 15A |
| loading capacity | 3T | 3T | 3T | 3T | | | | |
| lift range(mm) | 135-360MM | 155-450MM | 135-360MM | 155-450MM | | 135-360MM | 155-450MM | |
| N.W/G.W(KGS) | 3.6KGS/4KGS | 3.9/4.3KGS | 4.4/4.9KGS | 4.7/5.2KGS | 1/1.2KGS | 9KGS | 9KGS | 1.5/2.3KGS |
| max. torque | | | | | | | | 340N.m |
| air flow (L/min) | | | 35L/MIN | 35L/MIN | 35L/MIN | | | |
| max pressure(BAR/PSI) | | | 8/115 | 8/115 | 8/115 | | | |
| use temperature(ºC) | -15~60ºC |
| inflatable length(m) | | | 0.65M | 0.65M | 0.6M | | | |
| power cable(m) | 3.5M | 3.5M | 3.5M | 3.5M | 3M | 3.5M | 3.5M | |
| packing size(cm) | 32*15*17.8CM | 32*15*17.8 | 37*17.5*18 | 37*17.5*18CM | 30*19.5*12.5 | 39*36*18 | 39*36*18 | 30*19.5*12.5 |
| Container quantity | | | | | | | | |
| 20' | 2800pcs | 2800pcs | 1960pcs | 1960pcs | 4800pcs | 996pcs | 996pcs | |
