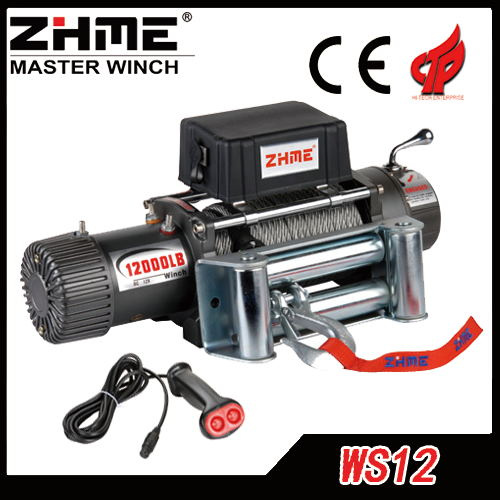

| Prod Model: |
WS12 |
| Product Name: |
Electric Winch |
| Rated Line Pull: |
12000lbs |
| Rope: |
Wire Rope 9.5mmx26m |
| N.W: |
41kg |
| Type: |
Electric Winch |
| Power Type: |
Series Motor DC |
| Pull Direction: |
Forward |
| Working Voltage Of Electric Winch: |
Low Voltage |
| Applicable Environment: |
Mountain Road |
| Certification: |
RoHS |
| Electric Winch Model: |
Zhme |
| Brand: |
Zhme |
Product Description
Characters:
1.Handle or wireless remote control,available in a choice of various apperance
2.Automatic brake in the drum
3.Powerful winch motor(Series wound 6.5 hp/ 4.8 kw, 12V DC,8.8 hp/ 6.4 kw, 24V DC),fast line speed
4.Smooth hand clutch,simple and reliable operation
| Specification |
| Rated line pull: | 12000 Lbs (5443 kg) single line |
| Motor: | Series wound 6.5 hp/ 4.8 kw, 12V DC; 8.8hp/6.4kw 24V DC |
| Gear Train: | 3 stage planetary |
| Gear ratio: | 273:1 |
| Clutch: | Sliding Ring gear |
| Braking action: | Automatic in the drum |
| Fairlead: | Roller fairlead for wire rope |
| Wire rope: | 9.5 mm × 25 m |
| Drum size: | 2.5"×8.9"(64mm×226mm) |

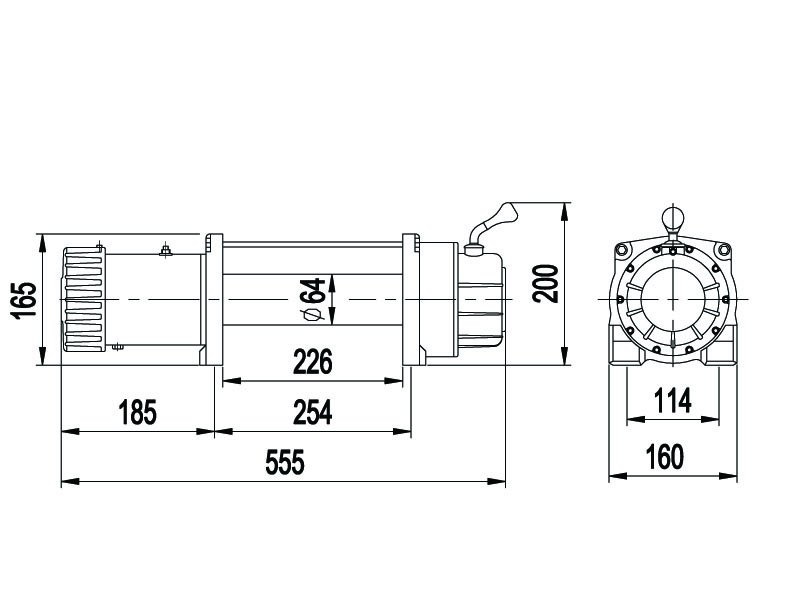

| Dimensions: | 21.9"×6.3"×7.9"( 555mm×160mm×200mm) |
| Mounting bolt pattern: | 10"×4.5"(254mm×114.3mm) |
| Battery: | Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m) |
| N.W: | 90 lbs (41kgs) |
| Packing: | 620mmx360mmx260mm(420pcs per 20' container) |
| Line speed and motor current (first layer) |
| Line pull | Lbs | 0 | 4000 | 6000 | 10000 | 12000 |
| Kgs | 0 | 1814 | 2722 | 4536 | 5443 |
| Line speed | FPM | 25.5 | 15 | 9.8 | 6.9 | 5.9 |
| MPM | 7.8 | 4.6 | 3 | 2.1 | 1.8 |
| Motor current | Amps | 80 | 150 | 180 | 260 | 310 |
| Line pull and cable capacity | |
| Layer of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | Lbs | 12000 | 10000 | 8600 | 7500 | |
| Kgs | 5443 | 4536 | 3629 | 3402 | |
| Cable capacity per layer | Ft. | 17.6 | 37 | 63 | 85 | |
| M | 5.4 | 11.4 | 19.4 | 26 | |
