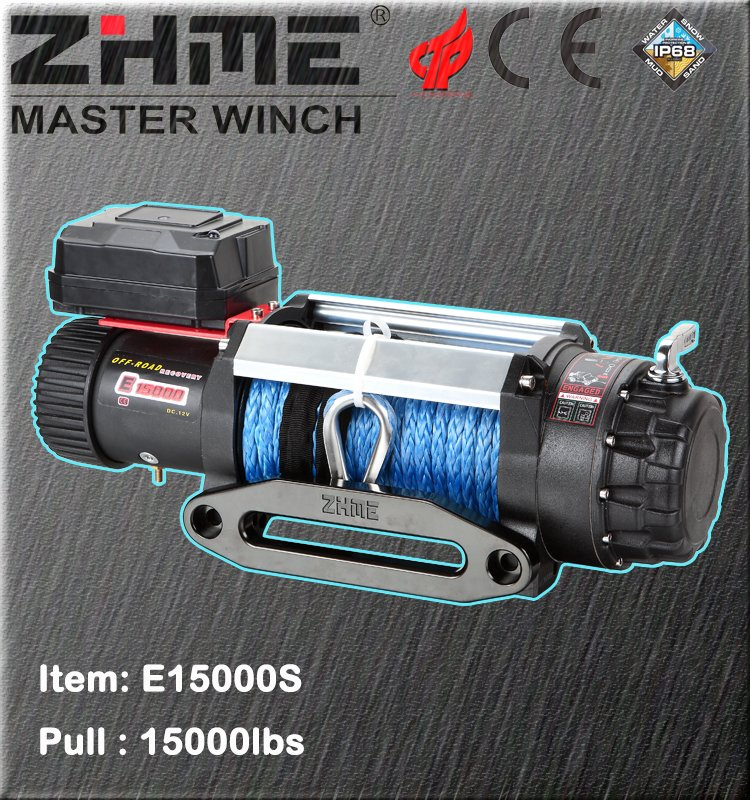

15000lbs Pull Electric Power Resource Winch with Synthetic Rope

15000lbs Pull Electric Power Resource Winch with Synthetic Rope
Price: US $ 350-370/Piece
Min Order: 15/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: E15000S
Item: E15000s
Rated Pull: 15000lbs(6804kg)
Power: 12V DC
Out Put: 6.8HP/5.0kw
Gear Ratio: 262:1
Brake: Expansive Auto Brake
Type: Electric Winch
Pull Direction: Forward
Working Voltage Of Electric Winch: Low Voltage
Certification: SGS
Power Type: off Road
Brand: Zhme
Applicable Environment: off Road
Electric Winch Model: off Road

Product Description

15000lbs pull electric power resource winch with synthetic rope

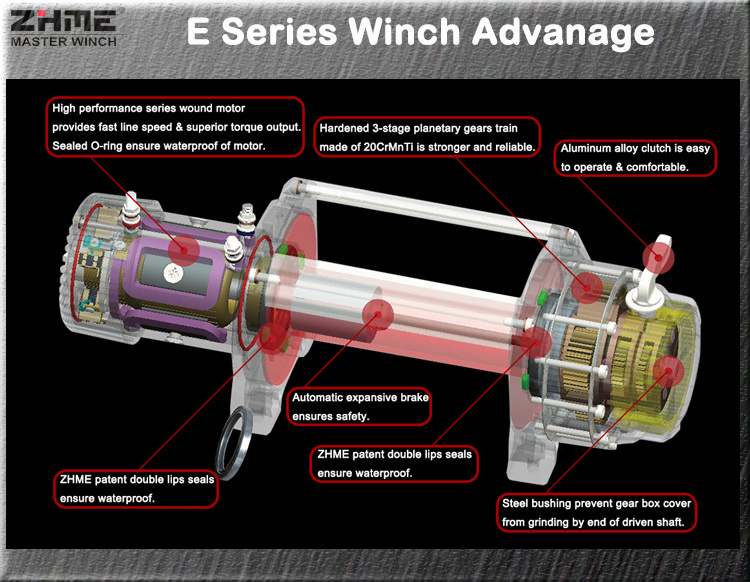

Advantage:
1. Motor: High performance series wound motor, powerful and waterproof.
2. Brake: Automatic enpansive brake in the drum.
3. Solenoid: 500A waterproof solenoid in control box.
4. Gear: 3-Stage planetary gear made of 20CrMnTi material, hard enough and reduce speed perfect.
5. waterproof: ZHME patent double lips seals ensure IP68 waterproof of motor and gear box.

Winch Specifications:
ItemE15000
Rated Line Pull15000lbs(6804kgs) single line
MotorSeries wound 6.8hp/5.0kw, 12V DC
Gear Train3 stage planetary gear
Gear Ratio262:1
Braking ActionAutomatic in the drum
Drum size76mmx224mm
Dimensions584mmx170mmx214mm
Mounting Bolt Pattern254mm×114.3mm
FairleadAlunimum farilead
RopeSynthetic rope: Φ12mm x 24m
N.W.40kgs

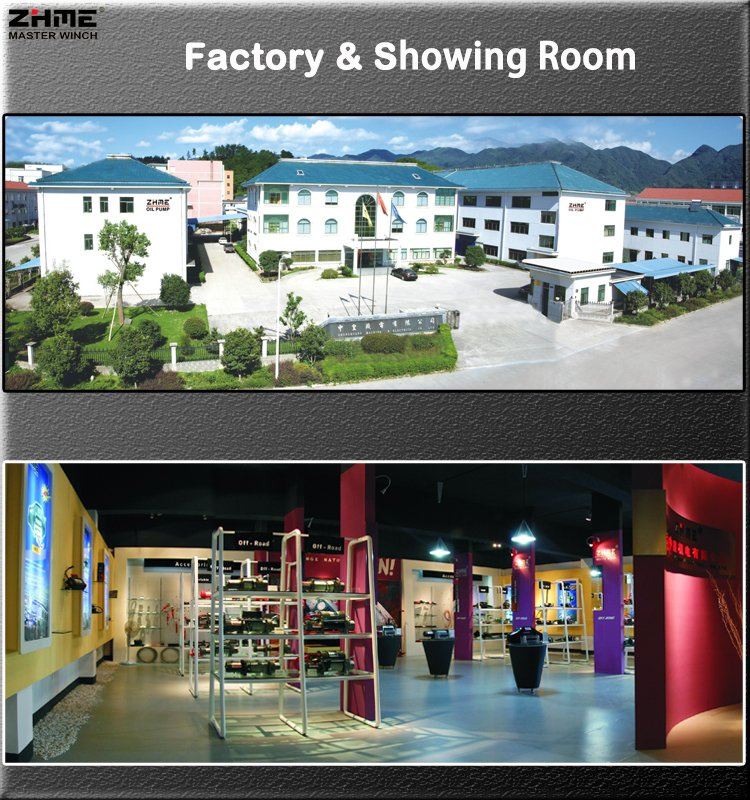

Factory and Showing Room:
ZHME owns more than 15000m2 factory including 150 works and 150m2 showing room.



Technical Department:
ZHME technical department is in charge of research and development, improving products.

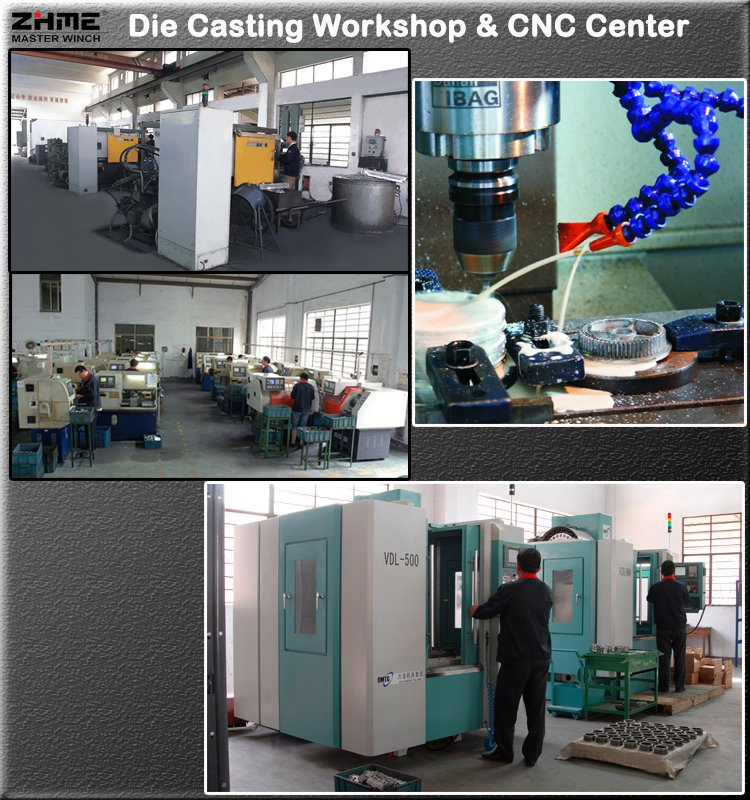

ZHME Winch Workshop:
ZHME has own die casting workshop which can die cast winch support, gear box, aluminum fairlead and other accessories.
CNC ceter which can process winch parts such as support, gear box, fairlead, etc..

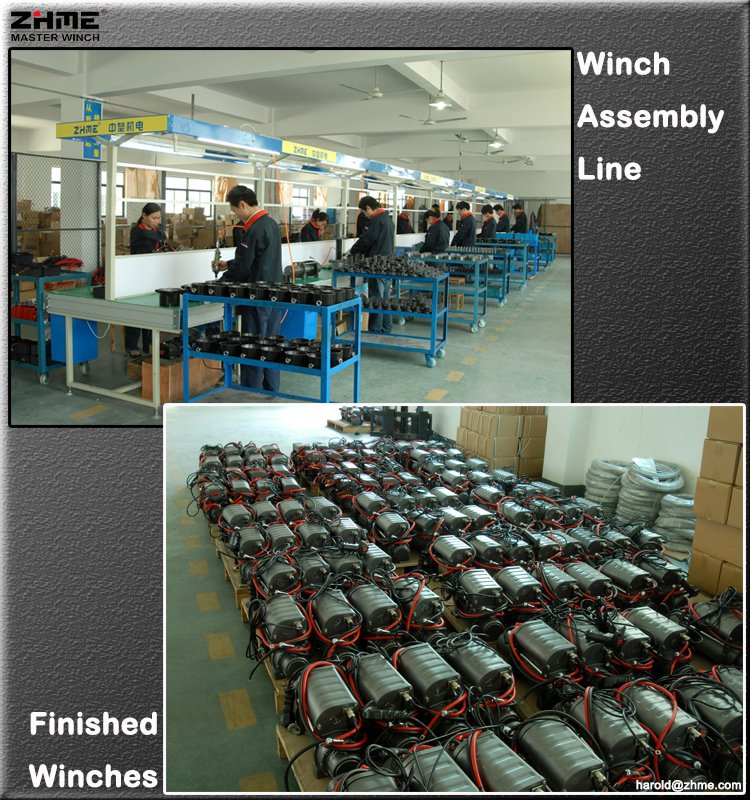

Assembling Line:
ZHME has own auto assembling line where can assembly more than 500pcs winches every day.

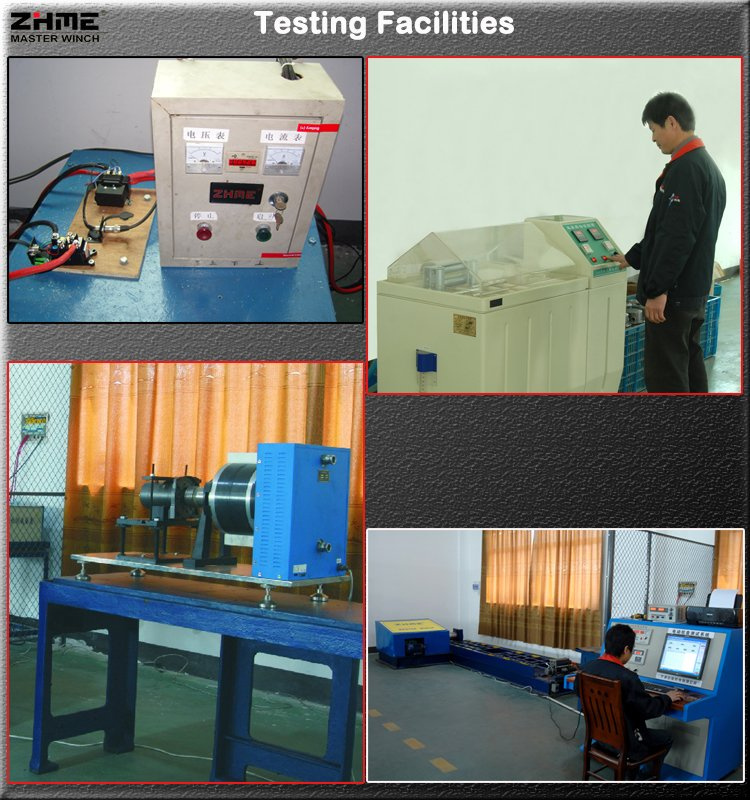

Testing facilities:
ZHME has motor facilities of motor, solenoid, winch pull, speed and electric current.

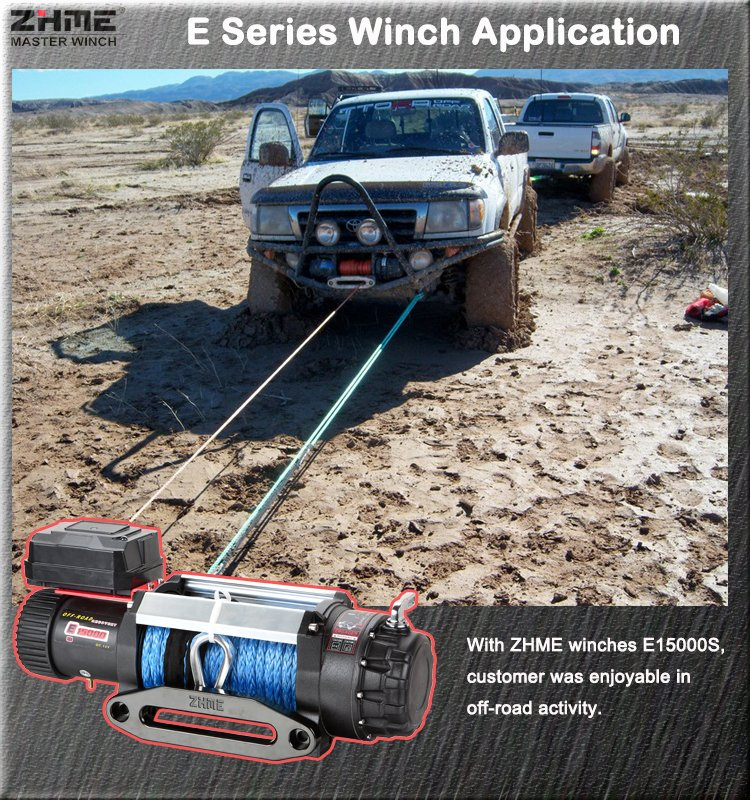

ZHME Winch Application:


Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
