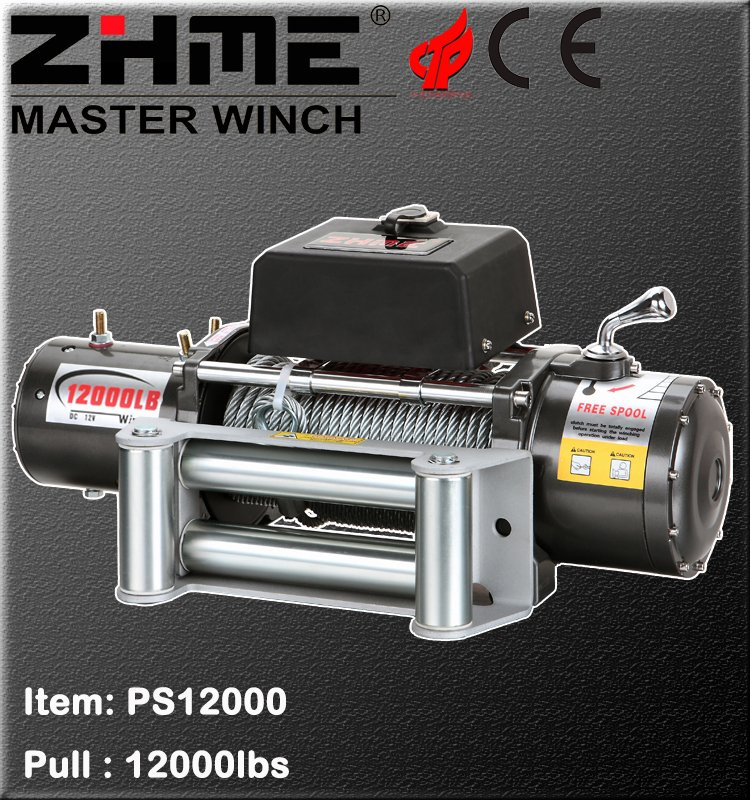

12000lbs Pull DC 12V Power Electric Winch for Truck

12000lbs Pull DC 12V Power Electric Winch for Truck
Price: US $ 170-190/Piece
Min Order: 15/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: PS12000
Item: PS12000
Rated Pull: 12000lbs(4536kgs)
Power: 12V DC
Out Put: 6.0HP/4.4kw
Certification: SGS
Type: off Road

Product Description

12000lbs pull DC 12V power electric winch for truck

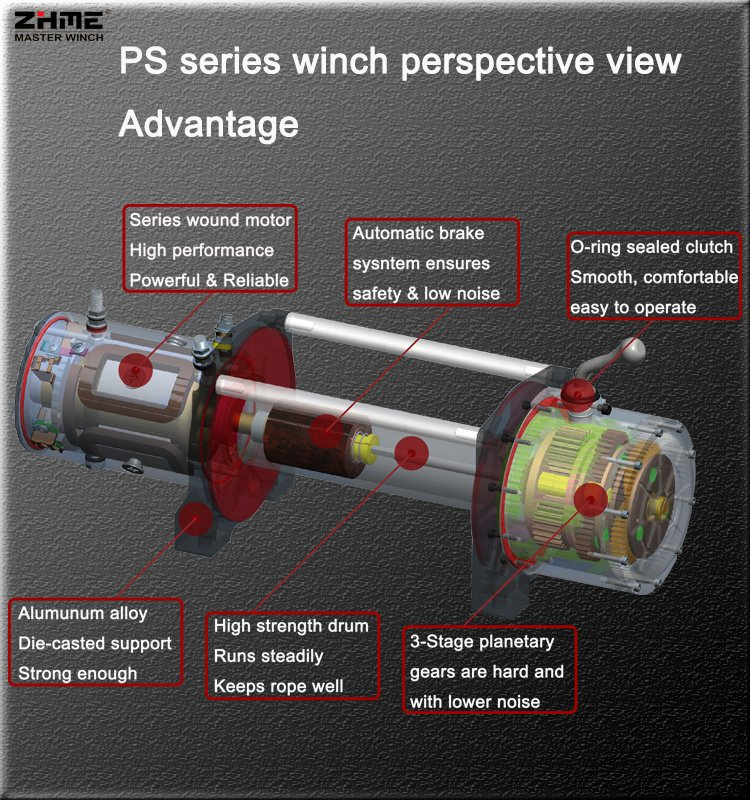

Advantage:

1. Motor: High performance series wound motor.
2. Brake: Automatic brake in the drum.
3. Solenoid: 2pcs 250A solenoids as one group in control box.
4. Gear: 3-Stage planetary gear made of 20CrMnTi material, hard enough and reduce speed perfect.
5. Clutch: Smooth clutch fell comfortable when operating.

Specifications:
Specification
ItemPS12000
Rated Line Pull12000lbs(5443kgs) single line
MotorSeries wound 6.0hp/4.4kw 12V DC
Gear Train3 stage planetary
Gear Ratio218:1
Braking ActionAutomatic in the drum
Fairlead4-way roller fairlead
Wire Rope3/8″x 85″(9.5mm x 25m)
Drum Size2.5″x 8.9″(64mm x 226mm)
Dimensions21.6″x 6.3″x 8.6″(546mm x 160mm x 218mm)
N.W.93lbs(42kgs)
Mounting Bolt Pattern10″x 4.5″(254mm x 114.3mm)
Packing620mm x 360mm x 260mm, 420pcs/20' container
Ling speed and Motor Current(First Layer)
Line pullLbs0400060001000012000
Kg01814272245365443
Ling speedFPM2212.59.86.95.6
Motor currentMPM6.83.832.11.7
AMPS80170210310360
Ling pull and cable capacity
Layer of cable 1234
Rated line pull per layerLbs12000990083007000
Kg5443449037653175
Cable capacity per layerFt.17.6376385
M6132226

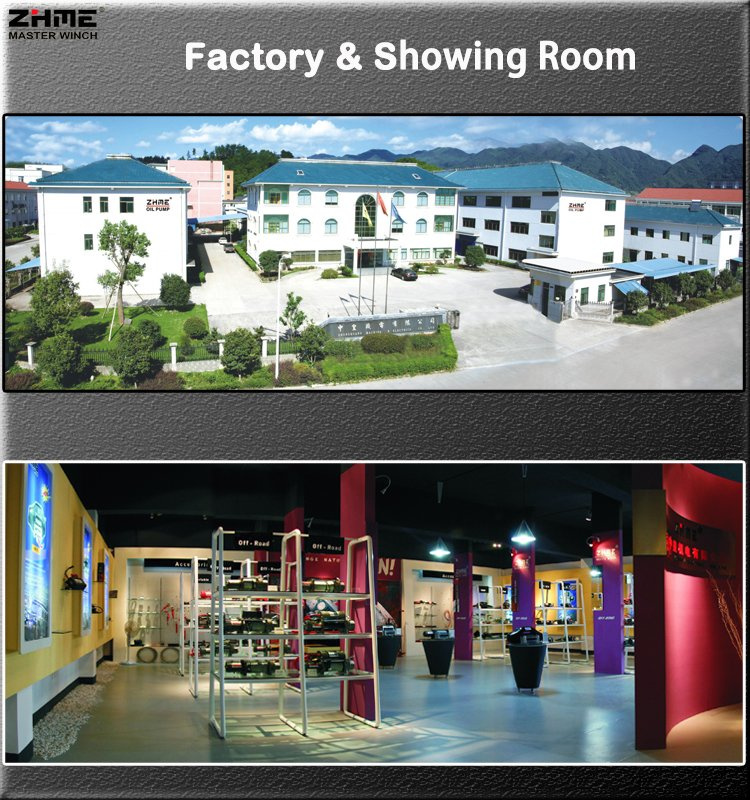

Factory and Showing Room:
ZHME owns more than 15000m2 factory including 150 works and 150m2 showing room.



Technical Department:
ZHME technical department is in charge of research and development, improving products.

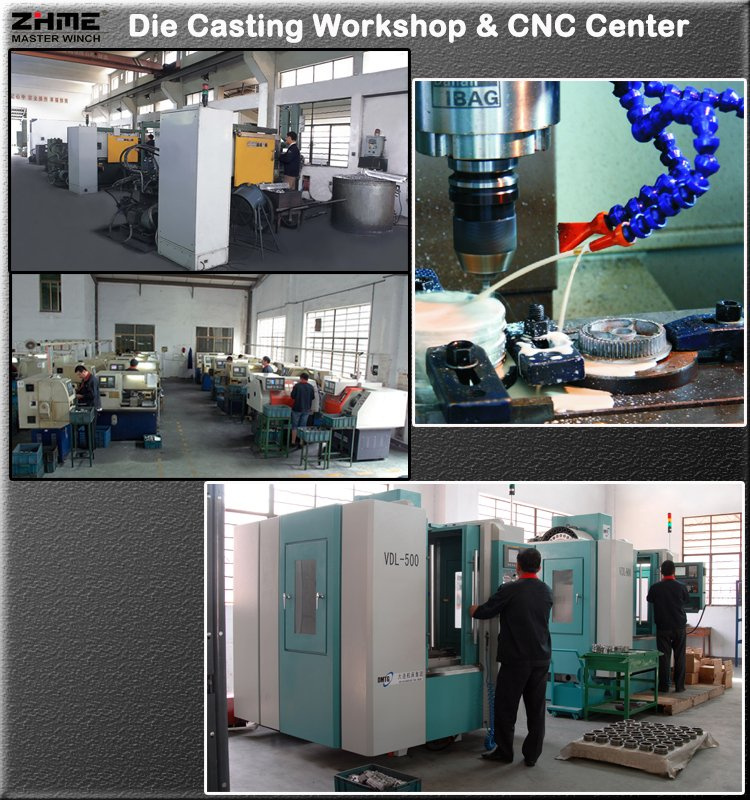

Workshop:
ZHME has own die casting workshop which can die cast winch support, gear box, aluminum fairlead and other accessories.

CNC center can process winch parts such as support, gear box, fairlead, etc..

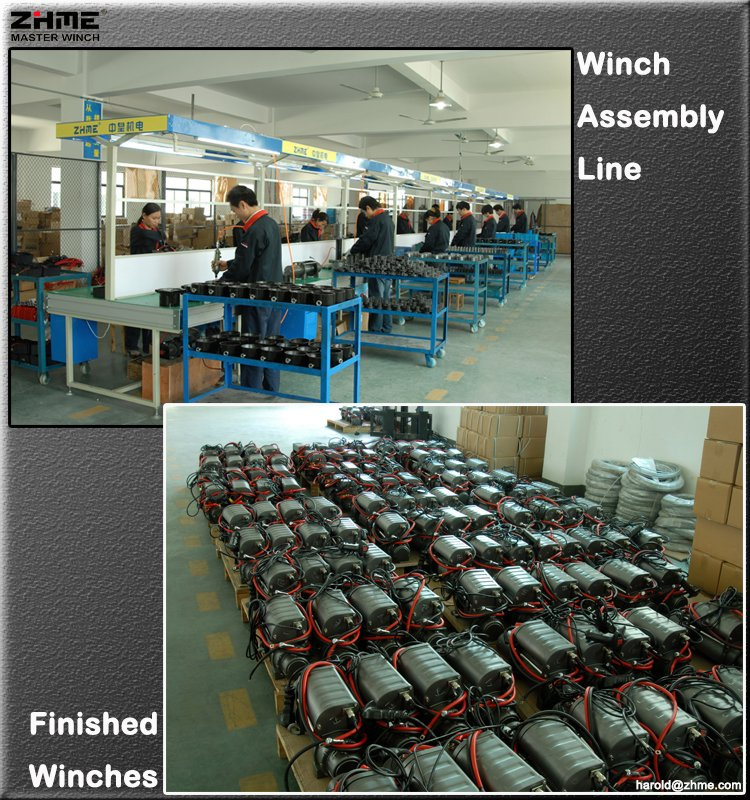

Assembling Line:

ZHME has own auto assembling line where can assembly more than 500pcs winches every day.


Testing Facilities:
ZHME has motor facilities of motor, solenoid, winch pull, speed and electric current.

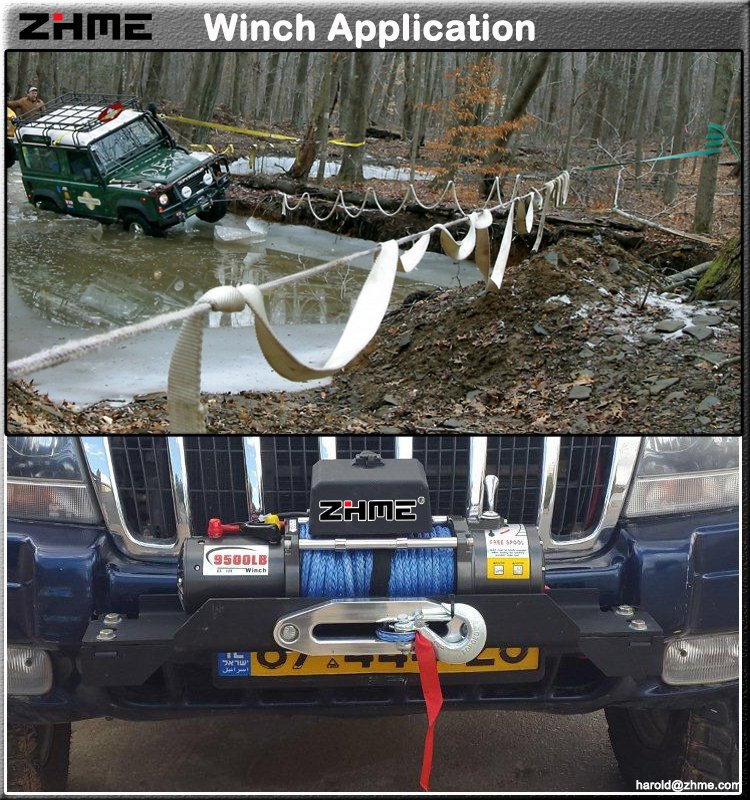

Winch Application:


Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
