| Prod Model: |
1.9.6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
1200mm |
| Type: |
Straight U Slots |
| Outer Diameter: |
1200mm (48") |
| Segment Spec: |
40X5X10mm X68nos |
| Delivery Time: |
Based on Actual Order Quantity, Generally 20~30day |
| Saw Power: |
10HP to 60HP |
| Use: |
Cutting Concrete, Asphalt, Green Concrete |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone Cutting, Engineering Material |
| Saw Blade External Diameter: |
1200mm |
Product Description

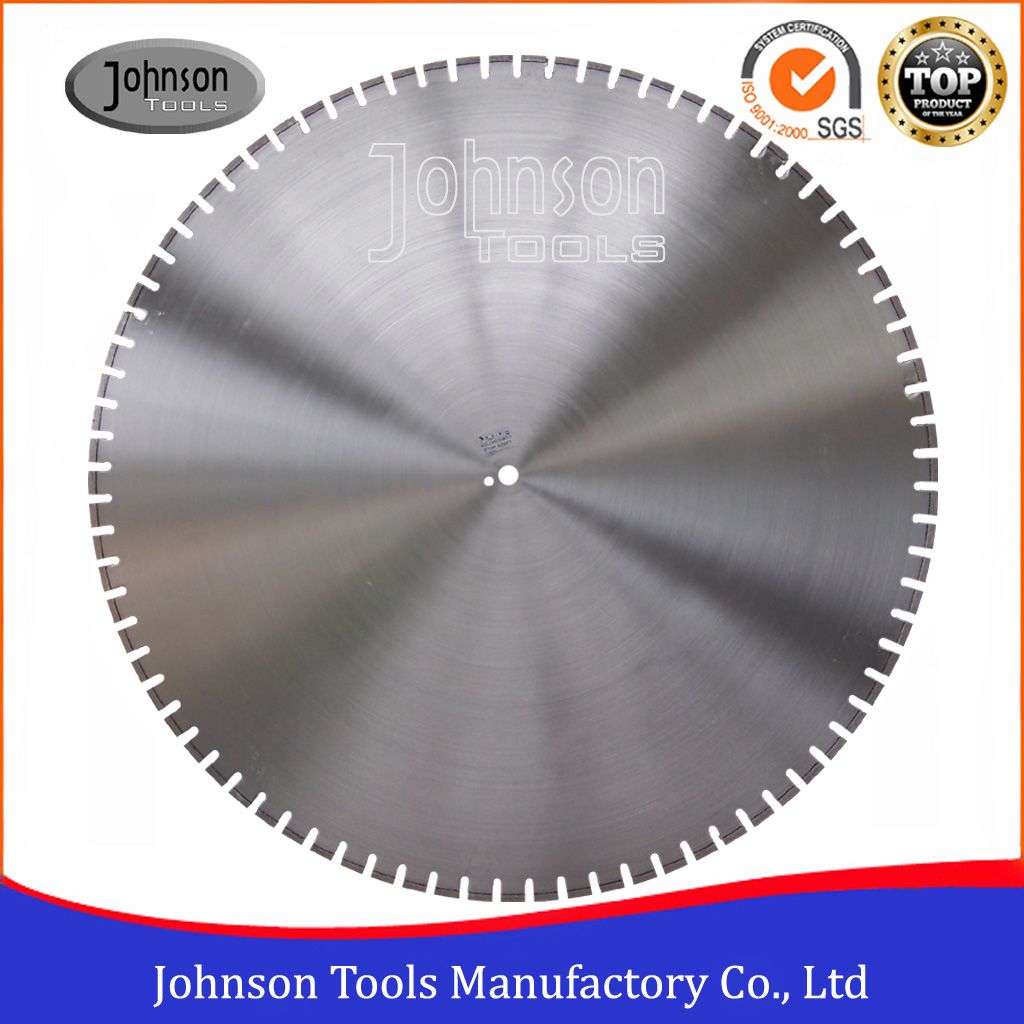

1200mm Diamond Floor Saw Blade for Concrete and Asphalt
Why choose us
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time
1. Description of 1200mm Diamond Floor Saw Blade for Concrete and Asphalt
1200mm Road cutting blade is a cutting tool that is widely used in concrete cutting, precast slab cutting, old and new road cutting, grooving other hard and brittle materials. Road saw blade mainly consists of two parts, steel core and diamond segment; The Segment is cutting part, will be consumed during in the cutting, while the steel core is not, the reason why the diamond segment can play a role in cutting because it contains diamond, diamond as the most hard substance that rub and cutting the materials processed, while the diamond particles is wrapped in the diamond segment by metal.
2. Feature of 1200mm Diamond Floor Saw Blade for Concrete and Asphalt
1) Undercut Protection segments provide longer lifetime when cutting Abrasive Materials.
2) Fits to Petrol Cutters, Bench & Floor Saw Machines.
3) Different Cutting slot have different function, narrow U or key slot give a wider segment and longer lifetime. Wider U slot prevent clogging.
4) Dry or wet cutting reinforced concrete, aggregate concrete, hot rolled asphalt, asphalt, asphalt over concrete&green concete.
5) Well exported to Taiwan, Hongkong, Thailand, Poland, Australia, Singapore, USA etc.
3. Specification of 1200mm Diamond Floor Saw Blade for Concrete and Asphalt
Diameter:1200mm
Segment thickness:4.8/5mm
Segment height:10/12/15mm
Inner hole:25.4mm, 60mm or others
| Inch | Diameter
(mm) | Segment length
(mm) | Segment thickness
(mm) | Segment height
(mm) | Segment number
(nos) |
| 48" | 1200 | 40 | 4.8/5.0 | 10/12/15 | 68 |
Other size floor saw blade we could do as following
| OD (mm) | Teeth specification | Hole(mm) |
| Length (mm) | Thickness (mm) | Height (mm) | Number |
| 350 | 40 | 3.2 | 10/12/15 | 24 | 25.4 |
| 500 | 40 | 4.0 | 10/12/15 | 36 | 25.4 |
| 600 | 40 | 4.4 | 10/12/15 | 42 | 25.4 |
| 650 | 40 | 4.8/5.0 | 10/12/15 | 42 | 25.4 |
| 750 | 40 | 4.8/5.0 | 10/12/15 | 46 | 25.4 |
| 800 | 40 | 4.8/5.0 | 10/12/15 | 46 | 25.4 |
| 900 | 40 | 4.8/5.0 | 10/12/15 | 52 | 25.4 |
| 1200 | 40 | 4.8/5.0 | 10/12/15 | 68 | 25.4 |
| 1500 | 40 | 4.8/5.0 | 10/12/15 | 90 | 25.4 |
4. Packing and Shipping of 1200mm Diamond Floor Saw Blade for Concrete and Asphalt
5pcs 1200mm laser welded floor saw blades are packed in one plywood case, gross weight per plywood is limited around 102-105kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. FAQ
Q: How to place order to your company?
1.Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2.Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3.Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4.Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5.After-Sale Service: Track the goods, learn the products' performance.
6.Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
