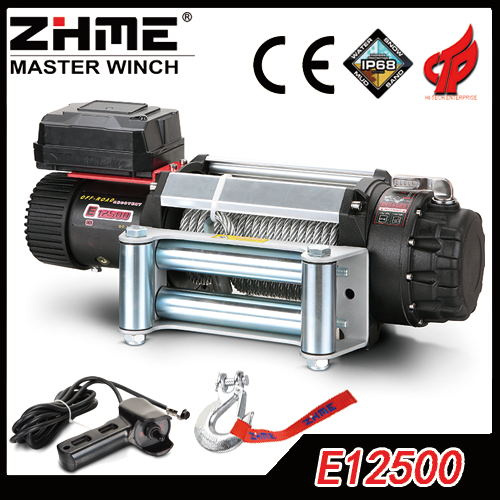

| Prod Model: |
E12500 |
| Product Name: |
Electric Winch |
| Rated Line Pull: |
12500lbs |
| Waterproof: |
IP68 |
| Rope: |
Wire Rope:11.5mmx26m |
| Type: |
Electric Winch |
| Power Type: |
Series Motor DC |
| Pull Direction: |
Forward |
| Working Voltage Of Electric Winch: |
Low Voltage |
| Applicable Environment: |
Mountain Road |
| Certification: |
RoHS |
| Electric Winch Model: |
Zhme |
| Brand: |
Zhme |
Product Description
Characters:
1.Waterproof IP68
2.Handle or wireless remote control,available in a choice of various apperance
3.Automatic brake in the drum
4.Powerful winch motor(Series wound 6.5 hp /4.8kw,12V DC,8.1hp/6.0kw,24V DC),fast line speed
5.Smooth hand clutch,simple and reliable operation
Specification:
| Rated line pull: | 12500Lbs (5670kgs) single line |
| Motor: | Series wound 6.5hp /4.8kw,12V DC ,8.1hp/6.0kw,24V DC |
| Gear Train: | 3 stage planetary |
| Gear ratio: | 262:1 |
| Clutch: | Sliding Ring gear |
| Braking action: | Automatic in the drum |
| Fairlead: | Roller fairlead for wire rope |
| Wire rope: | 11.5mm ×26m |
| Drum size: | 2.5"×9.0"(63mm×224mm) |
| Dimensions: | 23"×6.7"×8.4"( 552mm×170mm×214mm) |
| Mounting bolt pattern: | 10"×4.5"(254mm×114.3mm) |
| Battery: | Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m) |
| N.W: | 93 lbs (42kgs) |
| Packing: | 620mmx200mmx390mm(400pcs per 20' container) |
| Line speed and motor current (first layer) |
| Line pull | Lbs | 0 | 2000 | 4000 | 8000 | 12500 |
| Kgs | 0 | 907 | 1814 | 3629 | 5670 |
| Line speed | FPM | 25.6 | 12.5 | 8.9 | 7.3 | 6 |
| MPM | 7.8 | 3.8 | 2.72 | 2.24 | 1.8 |
| Motor current | Amps | 65 | 100 | 130 | 200 | 290 |
| Line pull and cable capacity |
| Layer of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | Lbs | 12500 | 10750 | 9460 | 8040 | |
| Kgs | 5670 | 4876 | 4290 | 3647 | |
| Cable capacity per layer | Ft. | 15.75 | 36.4 | 61.3 | 85.3 | |
| M | 4.8 | 11.1 | 18.7 | 26 | |
Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.
Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009
Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
