| Prod Model: |
3.2.6.6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
52 Inch |
| Manufacturing Arts: |
Welding |
| Kind: |
Diamond Saw Blade |
| Usage: |
Concrete Cutting |
| Saw Blade External Diameter: |
1300m |
Product Description

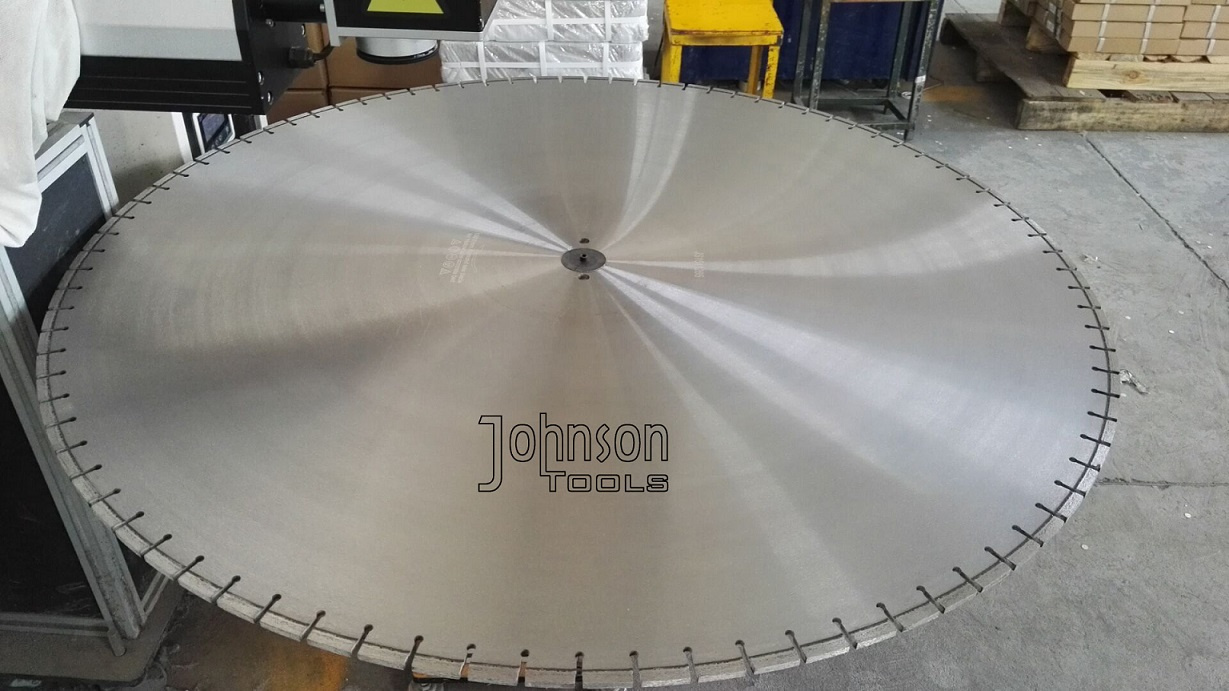

1300mm Diamond Cutting Saw Blade for Precast Hollow Core Concrete Beds Cutting Blade
Why choose us
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time
1. Description of 1300mm Diamond Cutting Saw Blade for Precast Hollow Core Concrete Beds Cutting Blade
1100mm diamond blade with laser welded segments for cutting precast concrete, Hollow core concrete beds etc. With good sharpness and long cutting lifetime.
Fits to Prestressed Concrete Pile Machine-Bridge Crane, Prestressed concrete cutting machine.
Mainly exported to South africa, Bahrain, Vietnam, Egypt, UK, Thailand market.
2. Feature of 1300mm Diamond Cutting Saw Blade for Precast Hollow Core Concrete Beds Cutting Blade
1) 100% laser welded technology.
2) Wet Cutting.
3) Fits to Precast Prestressed Concrete Machine-Bridge Crane, Prestressed concrete cutting machine.
4) Well exported to South africa, Bahrain, Vietnam, Egypt, UK, Thailand market.
3. Specification of 1300mm Diamond Cutting Saw Blade for Precast Hollow Core Concrete Beds Cutting Blade
Diameter:1300mm
Segment thickness:8.0mm
Segment height:10/12/15mm
Inner hole: 60mm or as your request
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 52" | 1300 | 40 | 8.0 | 10 | 88 |
| 52" | 1300 | 40 | 8.0 | 12 | 88 |
| 52" | 1300 | 40 | 8.0 | 15 | 88 |
Other size Concrete Saw Blade we could do as following
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 28" | 600 | 40 | 4.4 | 15 | 42 |
| 28" | 700 | 40 | 6.5 | 10/12/15 | 50 |
| 32" | 800 | 40 | 6.5 | 10/12/15 | 57 |
| 36" | 900 | 40 | 6.5 | 10/12/15 | 64 |
| 40" | 1000 | 40 | 7.0 | 10/12/15 | 70 |
| 44" | 1100 | 40 | 7.5 | 10/12/15 | 74 |
| 48" | 1200 | 40 | 8.0 | 10/12/15 | 80 |
| 56" | 1400 | 40 | 9.0 | 10/12/15 | 95 |
| 60" | 1500 | 40 | 9.0 | 10/12/15 | 100 |
4. Packing and Shipping
Each 52" laser saw blade is packed in white box, then 2pcs put in an export standard carton, gross weight per carton is limited within 150kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Our Technology:
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7. FAQ
Q: How to place order to your company?
1) Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2) Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3) Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4) Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5) After-Sale Service: Track the goods, learn the products' performance.
6) Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
8. Company information
Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries.
We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.
Johnson Tools people sincerely looking forward to serving you in the near future!
Let's work together to make the business better and better.
9. Contact us
More information about our products, welcome to visit our website www.johnsontoolscn.com and www.diamondsaw-blade.com, you will get more than you can see.
