Prod Model: |
3.2.6.6 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1300mm |
Material: |
Metal Bond with Diamond |
Delivery Time: |
Around 25-35days for Diamond Tool |
MOQ: |
According to The Actual Size You Need |
Sample: |
Available for Diamond Tool |
OEM: |
Available |
Color: |
According to Your Request for Diamond Tool |
Product Description

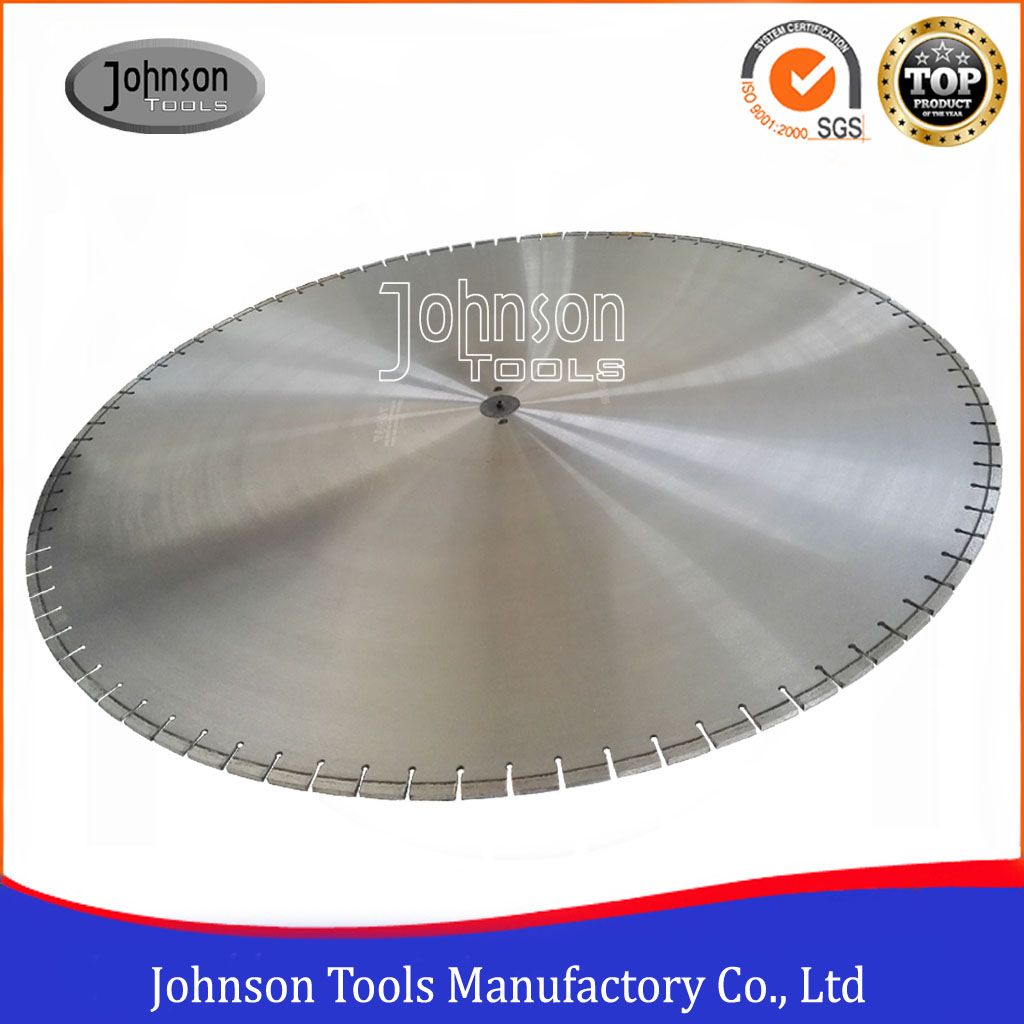

1300mm Diamond Cutting Saw Blade for Precast Hollow Core Concrete Beds Cutting BladeWhy choose usEstablished in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time1. Description of 1300mm Diamond Cutting Saw Blade for Precast Hollow Core Concrete Beds Cutting Blade 1100mm diamond blade with laser welded segments for cutting precast concrete, Hollow core concrete beds etc. With good sharpness and long cutting lifetime.
Fits to Prestressed Concrete Pile Machine-Bridge Crane, Prestressed concrete cutting machine.
Mainly exported to South africa, Bahrain, Vietnam, Egypt, UK, Thailand market.
2. Feature of 1300mm Diamond Cutting Saw Blade for Precast Hollow Core Concrete Beds Cutting Blade
1) 100% laser welded technology.
2) Wet Cutting.
3) Fits to Precast Prestressed Concrete Machine-Bridge Crane, Prestressed concrete cutting machine.
4) Well exported to South africa, Bahrain, Vietnam, Egypt, UK, Thailand market.
3. Specification of 1300mm Diamond Cutting Saw Blade for Precast Hollow Core Concrete Beds Cutting BladeDiameter:1300mm
Segment thickness:8.0mm
Segment height:10/12/15mm
Inner hole: 60mm or as your request
Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
52" | 1300 | 40 | 8.0 | 10 | 88 |
52" | 1300 | 40 | 8.0 | 12 | 88 |
52" | 1300 | 40 | 8.0 | 15 | 88 |
Other size Concrete Saw Blade we could do as followingInch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
28" | 600 | 40 | 4.4 | 15 | 42 |
28" | 700 | 40 | 6.5 | 10/12/15 | 50 |
32" | 800 | 40 | 6.5 | 10/12/15 | 57 |
36" | 900 | 40 | 6.5 | 10/12/15 | 64 |
40" | 1000 | 40 | 7.0 | 10/12/15 | 70 |
44" | 1100 | 40 | 7.5 | 10/12/15 | 74 |
48" | 1200 | 40 | 8.0 | 10/12/15 | 80 |
56" | 1400 | 40 | 9.0 | 10/12/15 | 95 |
60" | 1500 | 40 | 9.0 | 10/12/15 | 100 |

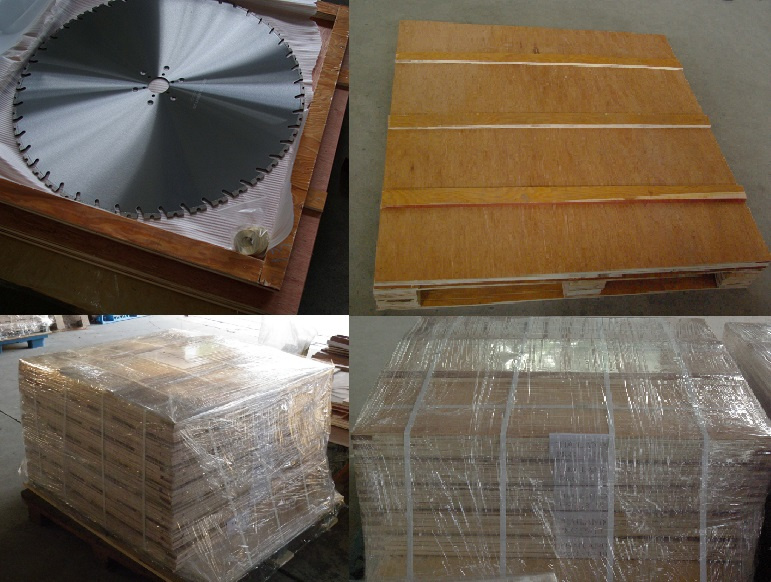

4. Packing and ShippingEach 52" laser saw blade is packed in white box, then 2pcs put in an export standard carton, gross weight per carton is limited within 150kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment termT/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Our Stock

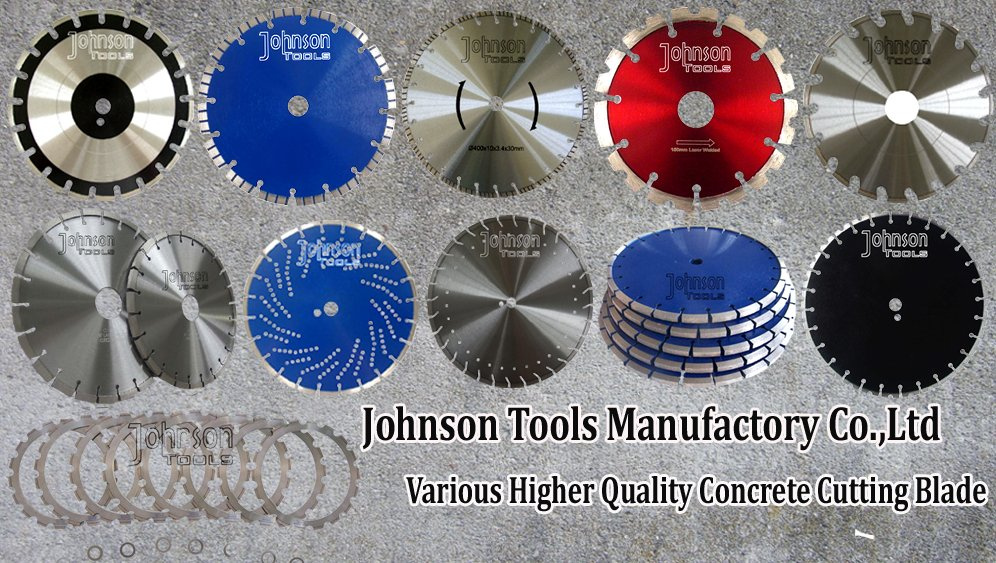

7. Our Related Products
8. Certification
9. Our Exhibition
10. Contact Us
More information about our products, welcome to visit our website www.johnsontoolscn.com and www.diamondsaw-blade.com, you will get more than you can see
