| Prod Model: |
1.2.1.9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Diameter: |
1400mm |
| Outer Diameter (Inch): |
56 Inches |
| Thickness Of Blank: |
3.5mm |
| Segment Size: |
40X5X10mm X86nos |
| Inner Hole: |
60mm with Pin Hole and Countersink Holes |
| Technology: |
Laser Welding |
| Machine Type: |
Wall Saw |
| Cutting Material: |
Concrete, Reinforced Concrete, etc. |
| Manufacturing Arts: |
Welding |
| Usage: |
Concrete Cuttting |
Product Description

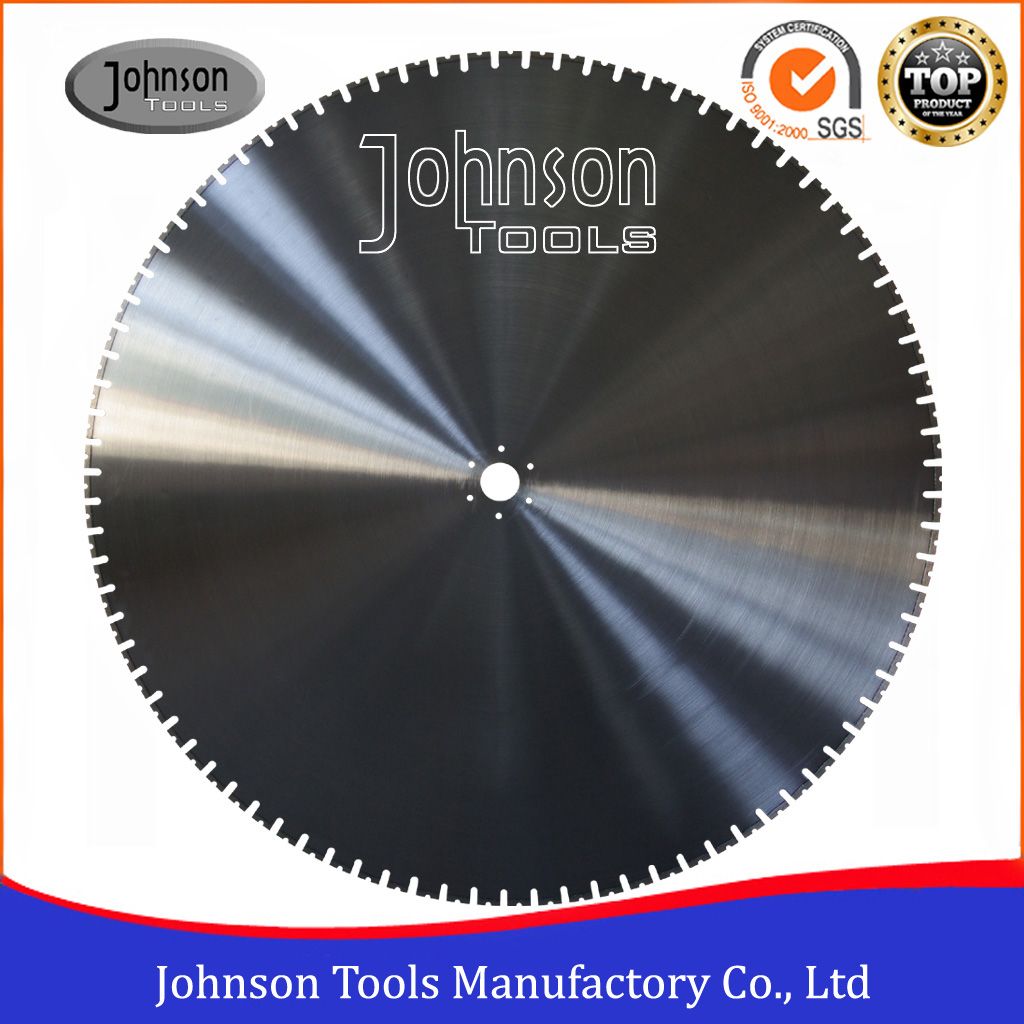

1400mm Diamond Concrete Cutting Blades for Wall Saws reinforced concrete cutting
Why choose us
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time
1. Description of 1400mm Diamond Concrete Cutting Blades for Wall Saws reinforced concrete cutting
1400mm wall saw blade is exported more for demolition reinforced concrete construction, including the partial modification and buildings and walls delimotion, opening window holes, doorways, demolition of reinforced concrerte bridges etc.
As a direct factory, any size could be customized and designed as your request.
2. Feature of 1400mm Diamond Concrete Cutting Blades for Wall Saws reinforced concrete cutting
1) 100% laser welding technology.
2) Dry cutting.
3) "Single U" type segment good for cooling.
4) High speed&fast cutting, smooth and long cutting life.
5) Fit to 3HP-85HP, or do as your request.
6) Installed for any brand wall saw machine.
3. Specification of 1400mm Diamond Concrete Cutting Blades for Wall Saws reinforced concrete cutting
Diameter:1400mm
Segment thickness:4.8/5mm
Segment height:10/12mm
Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request
| Inch | Diameter
(mm) | Segment length
(mm) | Segment thickness
(mm) | Segment height
(mm) | Segment number
(nos) |
| 56" | 1400 | 40 | 4.8/5 | 10 | 86 |
| 56" | 1400 | 40 | 4.8/5 | 12 | 86 |
Other size we could do as following
| Inch | Diameter
(mm) | Segment length
(mm) | Segment thickness
(mm) | Segment height
(mm) | Segment number
(nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
| 48" | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 60" | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64" | 1600 | 40 | 4.8/5 | 10/12 | 92 |
4. Packing and Shipping
2pcs 1400mm wall saw blades are packed in one plywood, gross weight per plywood is limited within 187kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Our Technology:
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
