15.24mm Single Hole Prestressed Anchor Coupler for Prestressed Concrete
| Price: |
US $ 11-11.5/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
YGML 15-1(L) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
45# or 40cr |
| Brand: |
Sw |
| Product Shape: |
Round |
| Surface Treatment: |
Galvanized or Black |
| Product Inner Diameter: |
12.7mm and 15.24mm |
| Product Type: |
Single Hole |
| Product Standard: |
GB/ISO/ASTM/SGS |
| Place Of Origin: |
Tianjin,China Mainlan |
| Product To Be Used For: |
PC Strand Connecting Work |
| Application: |
Bridge,Building,Highway,Railway,etc |
Product Description

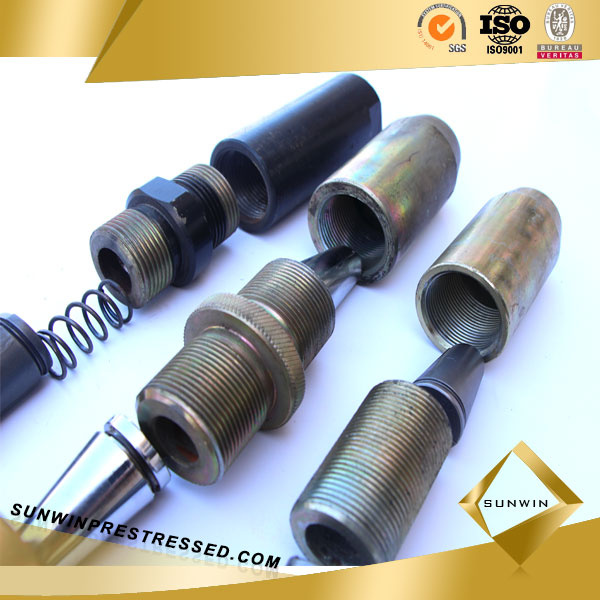

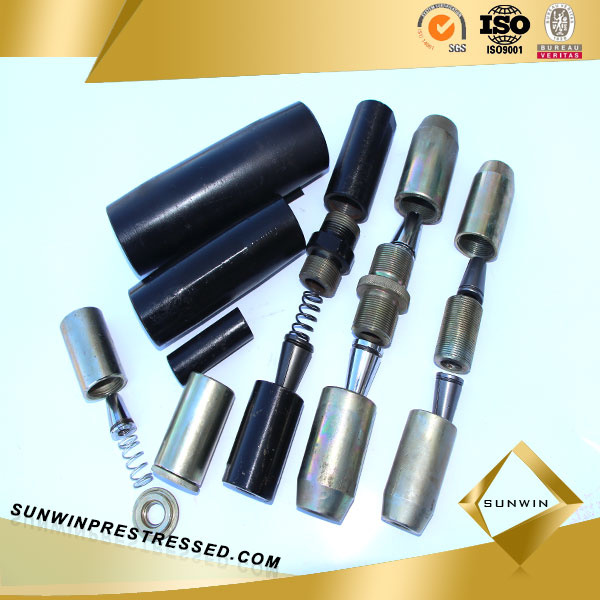

Product Introduction:Single-hole connector(coupler) includes tool connector and working connector two types. The difference between tool connector and working connector is the tool connector can be reused many times.
As per different working circumstance, the prouct always be made by different type with double ends PC strand connector and Strand & Rebar connector of each end.

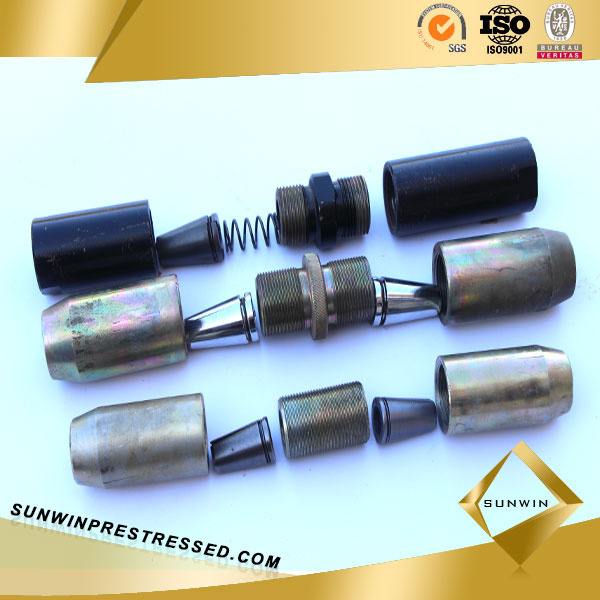

Each set connector usually consist of 2 sets of wedge,spring,connector body and 1 pc screw joint part(scre connecting bolt).Specifications:1. Type: Single Hole Connector
2. Shape: Round
3. Pop Product Model: YGML 13-1(L) and YGML 15-1(L)
4. Applicated for: Prestressed concrete structure. Such as, large span railway and highway, bridge, crane girders, rock-soil anchoring engineering, multi-floor industrial plant, coal, sports venues, etc.
5. Packing: Kraft paper carton packing or/and Fumigation wooden box OR as per customer's instruction.
6. Deliery time: Depend on order quantity. (Nomally within 15 days after receiving the deposit or the copy of L/C at sight)Product Advantage:1. Independent R & D
2. Easy operating & High Efficiency Performance
2. Quality Guarantee
3. Price Competitive
4. Quick Delivery
5. 100% Contract Performance Rate
6. Strict After-sale serivce
7. Ecomonc & Environment-fridently
Hot On Sale Product Model Data: | Type | ΦA (mm) | ΦB (mm) | L (mm) |
| YGML13-1(L) | Φ48 | Φ48 | 200 |
| YGML15-1(L) | Φ48 | Φ48 | 186 |
Remark:

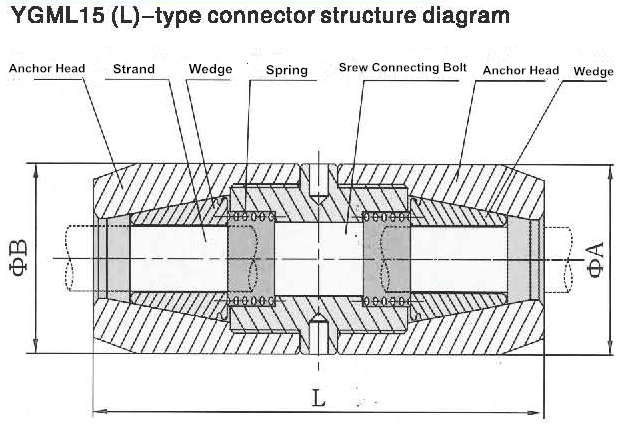

1) The above drawing refers connector type of both sides with PC strand. The two pop product models are hot on sale from both domestic and foreign market. Our products are of high quality and mature design,so we welcome your checking any time. Owing to different country region may have different requisition size and type, so we can offer customer's customization as well as OEM service.2) The YGML 13-1(L) model connector is to be used for 12.7mm strand or same series strand.
3) The YGML 15-1(L) model connector is to be used for 15.24mm strand or same series strand.Other Main Products: We supply full complete set anchor system and corresponded PC strand, please see the following:
A: Mono strand anchor system: for 5mm, 7mm, 8.0mm, 9.0(9.52mm) steel wire
B: Multi strand anchor system: for 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm pc strand.
C: Steel rear anchor system: for 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm rebar.FAQ: 1) If we can offer sample: Yes
2) If accept OEM: Yes
