Prestressed Round Anchor for Concrete Building
Price: |
US $ 0.8/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
100/Set |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
YJM |
Markets: |
South America,Southeast Asia,Africa,Mid East |
Item No.: |
Yjm13-15 |
Material Of Anchor Barrel: |
40cr |
Certificate: |
ISO, BV, SGS |
Finishing: |
Hot Galvanizing |
Sutible For Diameter: |
12.7mm, 15.2mm |
International Standard: |
ASTM, JIS, BS, ANSI,etc. |
Hardness: |
Hrb50-100 |
Product Description

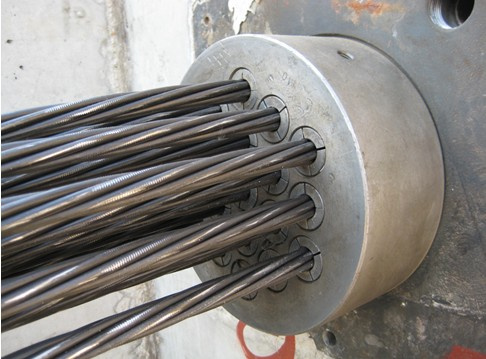

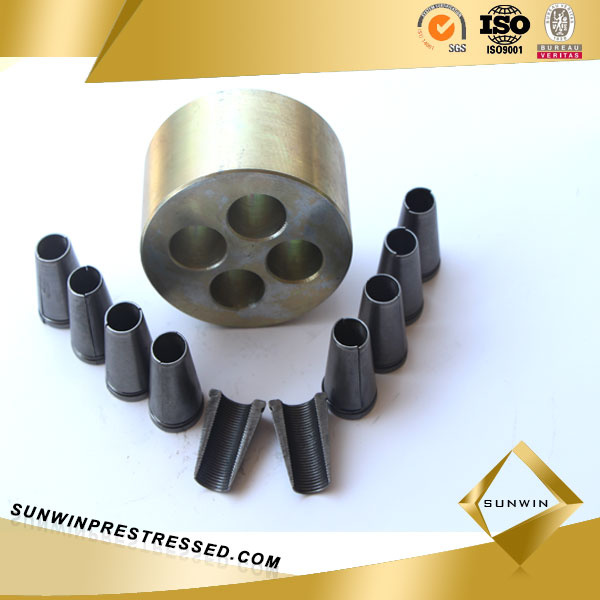

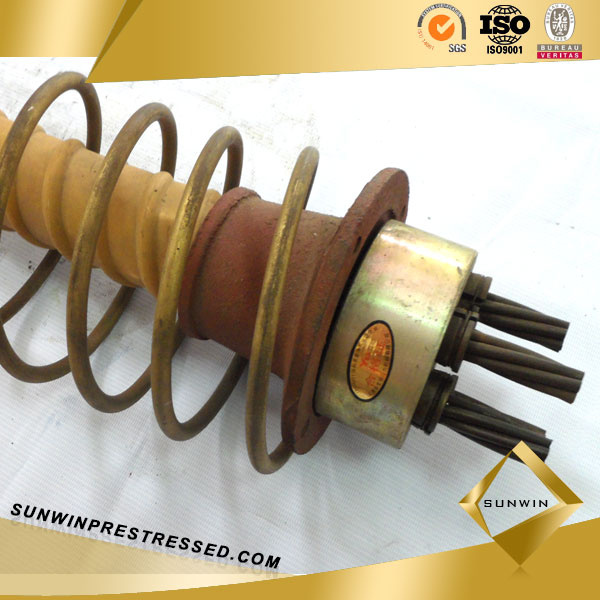

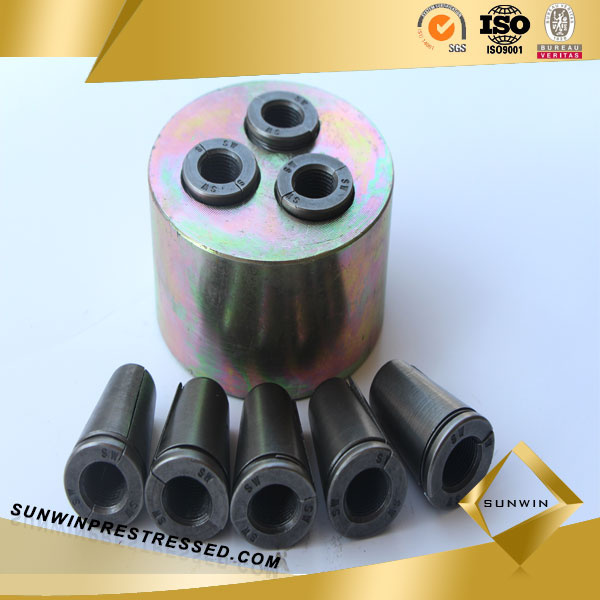

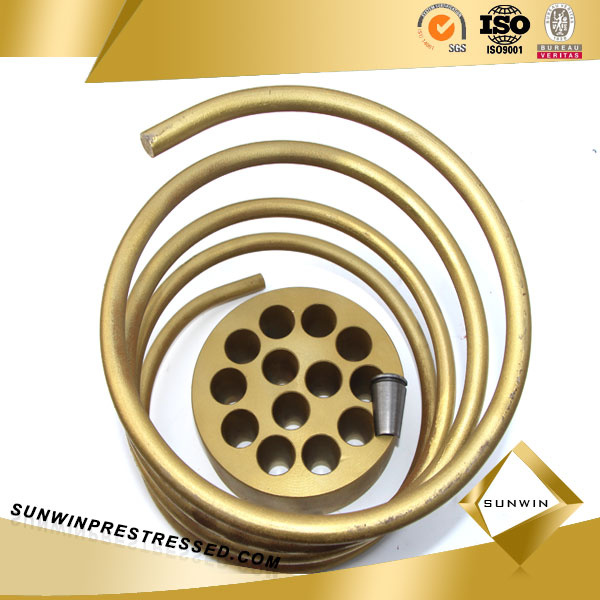

Prestressed Round Anchor for Concrete BuildingYM Series products are composed of tensioning anchor, holding anchor, connectors. It can be used for locking the steel strand wires on/under classes of 2000Mpa standard strength which is usually in diameters of 12.7mm /12.9mm/15.2mm/15.7mm.
It has been verified by pratice that various type of YM anchor also can be used for the different kinds of strand wires produced according to ASTM/BS/JIS/JIG/AS standard.
Technical details are as below:
Type | The number of PC strand root | Anchor plate ΦAxBxΦD | Bellows ID ΦD | Anchor ring ΦExF | Spiral reinforcement | Anchor plate | Tension jack supporting models |
ΦGxΦHxL | Laps | Mounting hole Pitch | Mounting hole diameter |
YJM13-1 | 1 | 80x80xΦ10 | | Φ39x43 | Φ70xΦ6x30 | 4 | | | YDC260Q |
YJM13-2 | 2 | 135x70xΦ58 | Φ50 | Φ73x45 | 100xΦ8x40 | 4 | 113 | M10 | YCW60B |
YJM13-3 | 3 | 135x70xΦ58 | Φ50 | Φ78x45 | 100xΦ8x40 | 4 | 113 | M10 | YCW60B |
YJM13-4 | 4 | 136x80xΦ62 | Φ55 | Φ88x47 | 130xΦ10x40 | 4 | 115 | M10 | YCW100B |
YJM13-5 | 5 | 136x80xΦ62 | Φ55 | Φ98x47 | 130xΦ10x40 | 4 | 115 | M10 | YCW100B |
YJM13-6 | 6 | 146x80xΦ62 | Φ55 | Φ103x45 | 140xΦ10x50 | 4 | 126 | M10 | YCW150B |
YJM13-7 | 7 | 146x80xΦ62 | Φ55 | Φ103x45 | 140xΦ10x50 | 4 | 126 | M10 | YCW150B |
YJM13-8 | 8 | 162x100xΦ78 | Φ70 | Φ117x50 | 160xΦ12x50 | 4 | 140 | M10 | YCW250B |
YJM13-9 | 9 | 176x120xΦ88 | Φ80 | Φ127x45 | 170xΦ14x50 | 5 | 153 | M10 | YCW250B |
YJM13-10 | 10 | 183x120xΦ90 | Φ80 | Φ137x45 | 180xΦ14x50 | 5 | 162 | M10 | YCW250B |
YJM13-11 | 11 | 210x120xΦ100 | Φ90 | Φ147x50 | 210xΦ14x60 | 5 | 180 | M10 | YCW250B |
YJM13-12 | 12 | 210x120xΦ100 | Φ90 | Φ147x50 | 210xΦ14x60 | 5 | 180 | M10 | YCW250B |
YJM13-13 | 13 | 210x140xΦ100 | Φ90 | Φ157x50 | 210xΦ14x60 | 5 | 185 | M10 | YCW350B |
YJM13-14 | 14 | 210x140xΦ100 | Φ90 | Φ157x50 | 230xΦ16x60 | 5 | 185 | M10 | YCW350B |
YJM13-15 | 15 | 234x160xΦ100 | Φ90 | Φ167x50 | 230xΦ16x60 | 5 | 200 | M10 | YCW350B |
YJM13-16 | 16 | 234x160xΦ100 | Φ90 | Φ167x55 | 230xΦ16x60 | 5 | 200 | M10 | YCW350B |
YJM13-17 | 17 | 234x160xΦ100 | Φ90 | Φ167x55 | 230xΦ16x60 | 5 | 200 | M10 | YCW350B YCW350B |
YJM13-18 | 18 | 234x160xΦ100 | Φ90 | Φ167x60 | 230xΦ16x60 | 5 | 200 | M10 | YCW400B |
YJM13-19 | 19 | 244x180xΦ100 | Φ90 | | 230xΦ16x60 | 6 | 210 | M10 | YCW400B |
Tianjin Sunwin Prestressed Technique Co., Ltd is located in Xiqing Economic and Technological Development Area of Tianjin city, China mainland. We are a professional manufacturer specialized in kinds of prestressed concrete anchor, PC strand, PC wire, post tension equipment and inspection equipment, and trade all kinds of steel products. Product quality, enterprise credit and the construction technology enjoys a good reputation both at home and abroad. There is assets of more than 10 million dollars, annual output value of 40 million, staff of more than 200 people, participate in national standards in which more than 30 senior engineers, can join in foreign construction site. With advance production equipment and sophisticated professional testing equipment more than 200 sets. Have the ability to undertaking variety of level structure of railway, highway, bridge projects, high-rise building, tunnel, water conservancy, mining facilities required for large construction projects of prestressed tensioning construction capability.
Our company has passed ISO9001, BV, SGS quality management certification, and established quality management system according to it, strictly control the whole process from the raw material procurement, production, inspection and after-sales service. Focus on technological innovation, scientific management. "quality first, customer supreme" for the purpose to participate in market competition. And has become the China's leading enterprises of prestressed anchorage series products.
Participate in national, provincial and municipal key projects, our high quality and technical team get widespread credit by users and the national quality supervision departments. We developed overseas market from 8 years ago, have rich experience.
Establish customer file management system, strictly ensure goods same with pictures, drawings. Customer service email tracking monitoring the order from beginning to end, also after-sales feedback. Our products have been exported to 30 countries such as UK, Australia, Philippines, Thailand, Korea, Japan, Iran, Bangladesh, Brazil, Colombia.
Our core values is guided by customer demand, ultimate responsible for the product quality as the vision, open cooperation with global partners, serve people, serve society together by the prestressed tensioning technology.
