| Prod Model: |
KET-STC Series |
| Product Name: |
150 MPa Ultra Low Height Hydraulic Jack |
| Certificate: |
Ce ISO9001:2008 |
| Working Pressure: |
70MPa-150MPa |
| Capcity: |
5-200 Ton |
| Storke: |
7-30mm |
| OEM: |
Yes |
| Color: |
Customized |
| Delivery Time: |
7-15days |
| Cylinder Bore Dia: |
21-132mm |
| Outside Diameter: |
60-204mm |
| Type: |
Hydraulic Jack |
| Structure: |
Hydraulic Jack |
| Power Source: |
Hydraulic |
| Capacity (',Load): |
5-200ton |
| Max Height: |
30mm |
Product Description

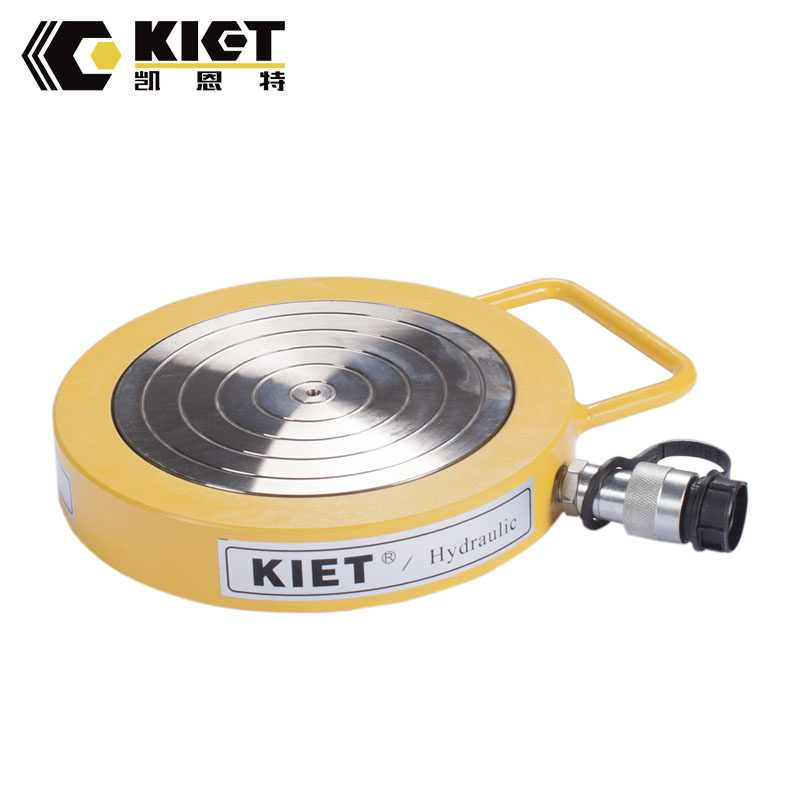

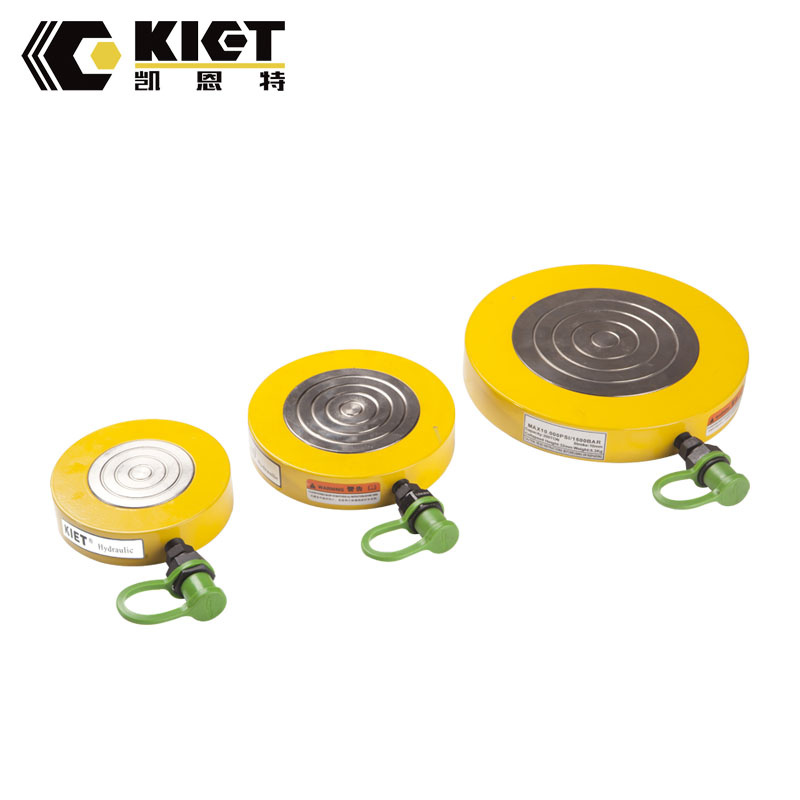

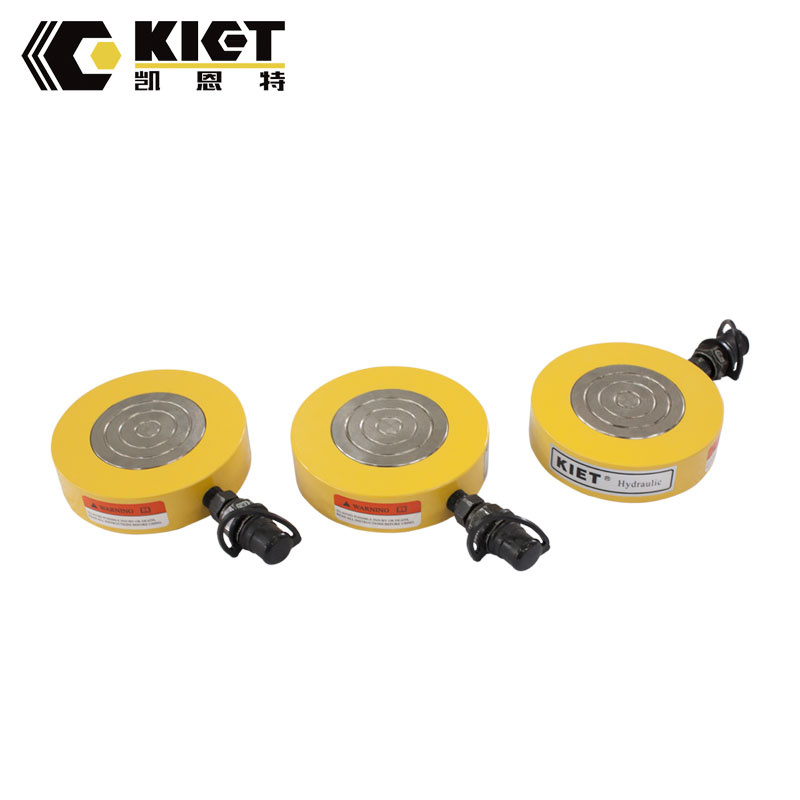

150 Mpa Ultra Low Height Hydraulic Jack
Jiangsu Canete Machinery Manufacturing Co.,Ltd
Product Description:
Ultra-low thin jack with ultra-low closed height and 6 mm of the storke, can be precisely adjusted and lifting work in a very narrow space.
Very suitable for machinery, turbines, heavy structural parts docking operations.
All models are single-acting, load reset design.
All ultralow thin jack when using its base must be fully supported.
Ultra-low thin hydraulic jack features:
Applicable hold heavy objects in confined spaces.
Light weight, small size, high pressure, high performance.
Working pressure 70 ~ 150Mpa.
Single-acting design, load return.
4 ° tilt piston maximum acceptable during loading.
Each ultra-low-jack equipped with a standard thin 1/4 "NPT (G1/4) fittings and dust cover.
Brife Information of KIET:
Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Our Service:
KIET provide one year guarantee for all the hydraulic cylinders. We promise if there is any Problems of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new cylinder for free. Any quality defects reported by customers will be responded in 24 hours.
Why Choose KIET?
Quality --- KIET has been in the industry for over 20 years. Being trusted by domestic mega stated-state owned companies, as well as international distributors and renowned brands. Regarding quality as KIET life !
Service --- KIET promised to respond to customers products quality or service within24 hours, and solutions shall be provided in 48 hours.
More Information and questions please contact me as below:
Contact: Aaron (sales director)
Mobile number: +86 180526100748
Tel:+86-523 81569666
Web: http://www.chinakiet.com/EN/
Welcome to visit our factory !
| Model Number | Capacity | Stroke
(mm) | Height
(mm) | Cylinder
Diameter
(mm) | Piston Rod
Diameter
(mm) | Working Pressure |
| KT-STC-5T-10 | 5T | 10 | 30 | 60 | 21 | 150MPa |
| KT-STC-10T-10 | 10T | 10 | 30 | 70 | 30 |
| FT-STC-25T-10 | 25T | 10 | 30 | 90 | 47 |
| KT-STC-50T-10 | 50T | 10 | 30 | 115 | 68 |
| KT-STC-65T-10 | 65T | 10 | 30 | 120 | 75 |
| KT-STC-100T-10 | 100T | 10 | 30 | 144 | 95 |
| KT-STC-50T-10 | 50T | 10 | 30 | 144 | 95 | 70MPa |
| KT-STC-100T-10 | 100T | 10 | 32 | 205 | 135 |
| KT-STC-100T-20 | 100T | 20 | 55 | 205 | 135 |
| KT-STC-100T-12 | 100T | 12 | 45 | 185 | 130 |
| KT-STC-120T-10 | 120T | 10 | 30 | 160 | 100 | 150MPa |
| KT-STC-10T-20 | 120T | 20 | 55.5 | 220 | 150 | 70MPa |
| KT-STC-150T-10 | 150T | 10 | 31 | 176 | 115 | 150MPa |
| KT-STC-150T-30 | 150T | 30 | 80 | 215 | 165 | 70MPa |
| KT-STC-200T-10 | 200T | 10 | 32 | 205 | 135 | 150MPa |
| KT-STC-100T-10 | 100T | 10 | 32 | 198 | 135 | 70MPa |
| KT-STC-20T-7 | 20T | 7 | 20 | 220 | 160 | 10MPa |
