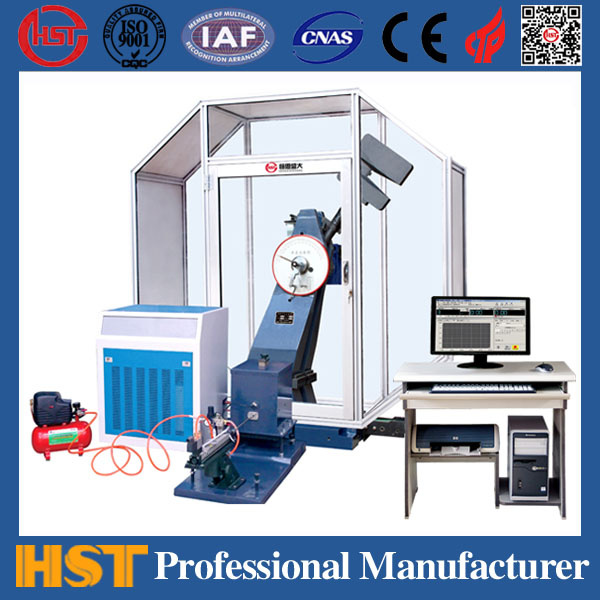

150J 300J 250J 500J JBDW-YSeries PC Control Low-temperature Automatic Impact Testing Machine / UTM/ Universal testing machine/ factory supply directly
Application:
JBDW-Y type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load. It's a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research. 2. Standards: ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007. 3. Features: 3.1 Low temperature system uses refrigeration compressor technology to achieve uniformity of the sample auto-cooling, with the use of heat balance principle and cycle mixing method. 3.2 Which adopts singlechip control, this machine can auto-complete the following actions: rising pendulum, hanging pendulum, sending specimen, positioning, impacting,temperature conditioning 3.3 After impacting the specimen, the machine can raise pendulum with surplus energy automatically so as to be ready for the next test 3.4 Can display material impact absorption power, impact toughness, pendulum raising angle and test average value, and can print the test data and the average value of the test.
Main Technical Specifications:
Model
JBDW-300Y
JBDW-500Y
impact energy
150J
300J
250J
500J
Value of every grid
2J
1J
5J
2.5J
Moment of pendulum(N.m)
160.7695
80.3848
267.9492
133.9746
The distance between the pendulum shaft and impact point
750mm
800mm
Impact speed
5.2m/s
5.4 m/s
Pre-rising angle of the pendulum
150°
Specimen bearer span
40+0.2mm
Round angle of the jaw
R1-1.5mm
Round angle of impact edge
R2-2.5mm,R8±0.05(special order)mm
Angle accuracy
0.1°
Standard specimen dimension
10mm×10(7.5/5)mm×55mm
Thickness of impact knife
16mm
Dip angle of supporting surface of supports
11°
Cooling way
compressor
Capacity of sample box
20
Range of low temperature
0 --80°c
Precision of controlling temperature
fluctuation ±0.5°C grades 1°C
Speed of sending specimen
≤2S
Power supply
3phs, 380V, 50Hz Or 220V,60Hz
Dimensions (mm)
2200×1500×1900
2200×1500×1900
Net Weight (kg)
850
950
Standard Accessories
5.1 Main unit----------1 set 5.2 Pendulum
JB-300B
JB-500B
150J/300J--2 pcs
250J/500J--2 pcs
5.3 Span specimen plate (L = 40mm)----1 pc 5.4 Specimen centering plate (L = 40mm)(U, V)----1 pc 5.5 Stripping attachment----1 pc 5.6 Internal hexagonal wrench (S=30mm)---1 pc 5.7 Anchor bolts (M16x300mm)---4 pcs 5.8Impact testing security guards----1 pc 5.9Low temperature device---1 pc 5.10 Automatic sample sending and automatic positioning device---1 pc 5.11 PC Testing-software ---1 pc 5.12Lenovo computer---1 set 5.13 HP Printer---1 set
Jinan Hensgrand Instrument Co., Ltd. Was established in 2001, is specialized in developing and manufacturing of testing equipment used for metal, non-metal and composite materials mechanic performance testing.
Our main products are Hydraulic Universal Test Machine, Electronic Universal Test Machine, Compression Testing Machine, Spring Testing Machine, Impact Testing Machine, Torsion Testing Machine, Hardness Tester, Testing Machine Accessories. Most of them comes with CE and ISO certifications.
Products are widely used in steel metallurgy, machinery manufacturing, space flight and aviation, military, auto manufacturing, rubber industry, plastic industry, etc. UAS, UK, Germany, Italy, Canda, Singapore, Philippines etc. Are our main exporting countries.
"To make high quality products" is our manufacturing philosophy!
With scrupulous manufacturing process, large-scale production, strict quality management, normative user training and improved service system, our company is specialized in providing customers with humanized products which customers can rest assured to buy and use with ease.
